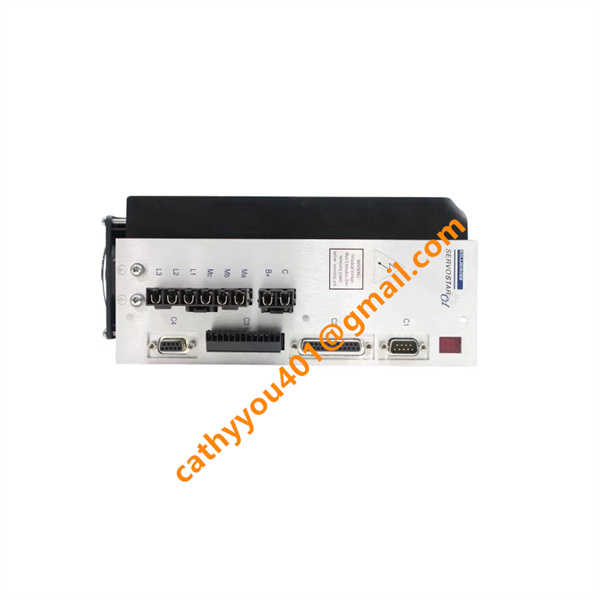

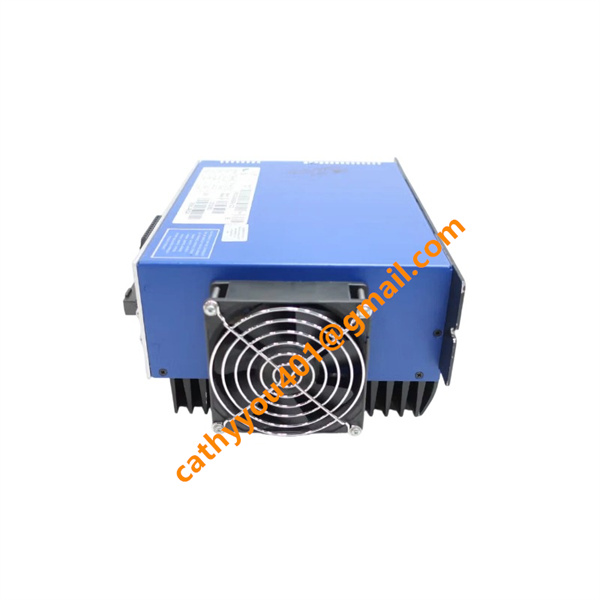

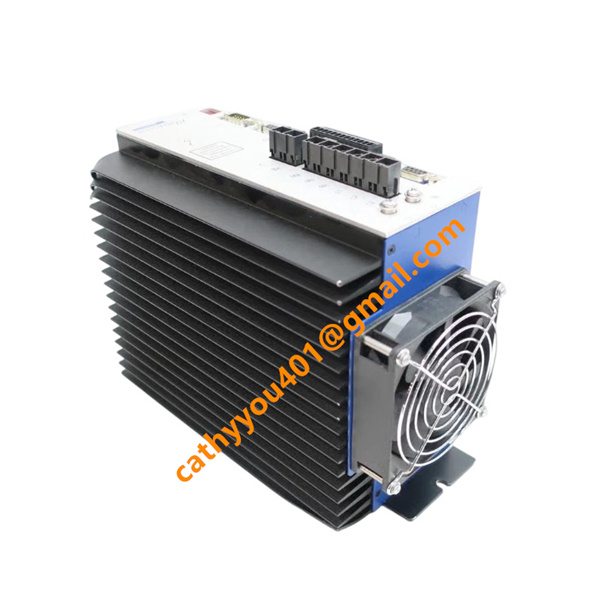

PRD-B040EAIZ-C2 KOLLMORGEN CD Series Digital Servo Drive

• Brand
  KOLLMORGEN
• Model
  PRD-B040EAIZ-C2
• Product Name
  SERVOSTAR CD Series Digital Servo Drive
• Place of Origin
  Germany
• Dimensions
  220 mm × 160 mm × 60 mm
• HS Code
  85044090
• Weight
  2.5 kg
• Operating Temperature
  0 ℃ to 40 ℃
• Storage Temperature
  -20 ℃ to +85 ℃
• Power Supply
  24VDC
• Warranty
  12 MONTH
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

PRD-B040EAIZ-C2 KOLLMORGEN Input and Output

Input: Single or three-phase 220–240 VAC main power supply; freely configurable digital control inputs for drive enable, travel limit switches and trigger commands; multi-type encoder feedback interfaces supporting incremental encoder, resolver and Hall sensor signals; communication ports supporting EtherCAT, CANopen and Modbus protocols.

Output: Three-phase power output to drive synchronous servo motors; integrated dynamic braking circuit to process regenerative energy; configurable digital outputs transmitting drive ready state, fault alerts and running status feedback; fieldbus interfaces used for motion command transmission and data interaction with upper-level controllers.

Installation Method for Kollmorgen PRD-B040EAIZ-C2

This SERVOSTAR CD servo drive requires vertical panel mounting inside an enclosed electrical cabinet with IP20 protection. Horizontal or inclined installation is not allowed to ensure natural convection cooling. Reserve minimum clearance: 50 mm above, 30 mm below and 20 mm between neighboring devices. Do not mount it close to transformers, contactors and other high-interference components.

The operating temperature range is 0 ℃ to 40 ℃ with 5%–95% non-condensing humidity. Performance derating is required above 1000 meters altitude.

Disconnect all power and wear an ESD wrist strap before installation to avoid electrostatic damage. Secure the drive firmly on the cabinet mounting plate for good EMC grounding and vibration resistance.

Arrange adequate routing space for power cables, motor cables, encoder and communication wires. Keep high-power cables separated from signal cables and avoid lengthy parallel routing. Apply 360° shield grounding for signal cables as specified.

Perform wiring following official schematics after installation. Fasten terminals to the required torque and complete circuit inspection to rule out short circuits and reversed wiring prior to power-on.

Regularly monitor cabinet ventilation and operating temperature during continuous operation. Cut off all power and wait for full capacitor discharge before disassembly or replacement.
