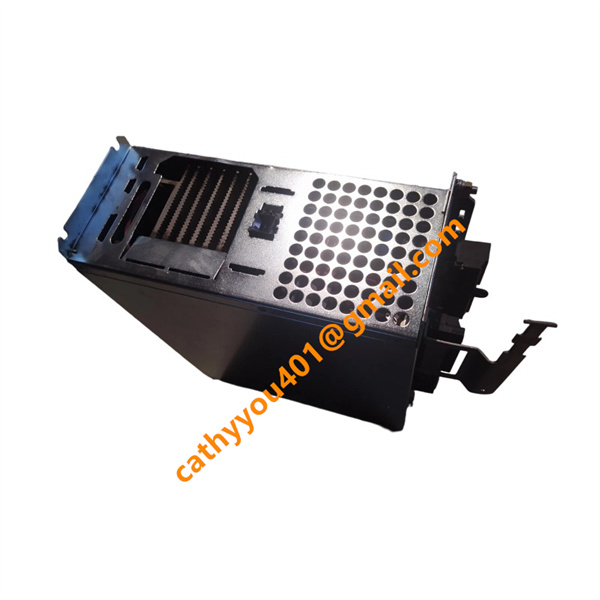

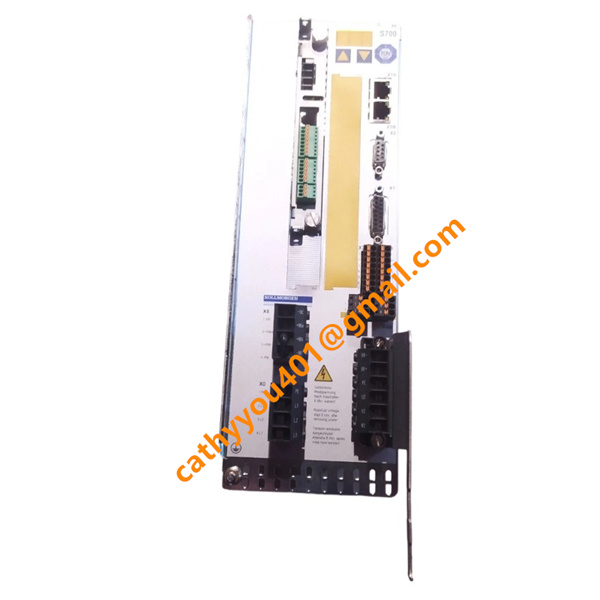

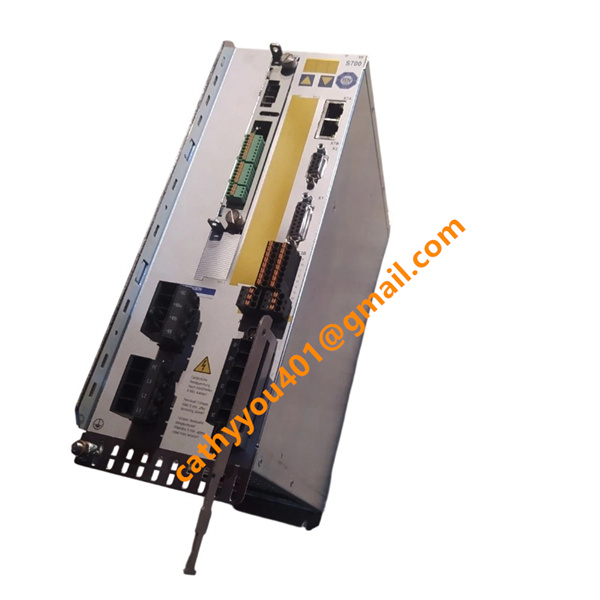

S74802-NANANANA KOLLMORGEN DCS S700 Series Digital Servo

• Brand
  KOLLMORGEN
• Model
  S74802-NANANANA
• Product Name
  S700 Series Digital Servo Amplifier
• Place of Origin
  Hungary
• HS Code
  85044090
• Dimensions
  386 mm× 190 mm× 244 mm
• Weight
  10.4 kg
• Operating Temperature
  0 ℃ to 55 ℃
• Storage Temperature
  -25 ℃ to +70 ℃
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Voltage & Current Specifications for Kollmorgen S74802-NANANANA

Three-phase main supply voltage: 208 VAC (-10%) to 480 VAC (+10%), 50/60 Hz, suitable for grounded TN/TT industrial power network; DC link operating voltage range: 290 VDC – 675 VDC.

Auxiliary control supply voltage: 24 VDC, provides independent power for control logic, communication interfaces and safety circuits.

Rated continuous three-phase output current: 48 Arms per phase; peak output current: 96 Arms per phase, sustainable for approximately 5 seconds.

Rated continuous apparent input power: 35 kVA.

Voltage transient requirement: Inter-phase peak overvoltage shall not exceed 1000 V (pulse width <50 μs); peak voltage between phase and housing shall not exceed 2000 V (pulse width <50 μs).

If mains voltage asymmetry exceeds 3%, an input line choke must be installed to ensure stable operation.

Installation Method for Kollmorgen S74802-NANANANA

This servo drive is designed for vertical rack mounting and shall be installed within an enclosed electrical cabinet (IP20 rated). Mount the drive upright; horizontal or reversed installation is forbidden, which impairs natural cooling. Reserve minimum clearance: 100 mm above, 50 mm below and 20 mm on both sides for ventilation. Do not install near transformers, contactors and other high-electromagnetic-interference devices.

Strictly comply with environmental requirements: operating temperature ranges from 0 ℃ to 55 ℃, relative humidity 5%–95% without condensation. Performance derating is needed if the operating altitude exceeds 1000 meters.

Disconnect all power and wear an ESD wrist strap prior to installation to avoid electrostatic damage. Fasten the drive securely to the cabinet frame with standard fasteners against operational vibration.

Leave adequate space for power cables, motor cables, encoder and communication wires. Isolate high-power wiring from low-level signal cables and avoid extended parallel routing.

Carry out wiring following official schematics after mechanical installation. Tighten terminals to specified torque and perform thorough circuit inspection before power-on to prevent short circuits and incorrect wiring.

Regularly check cabinet cooling fans and ambient temperature during continuous operation. Cut off all power and wait for full discharge of DC bus capacitors before disassembly or replacement.
