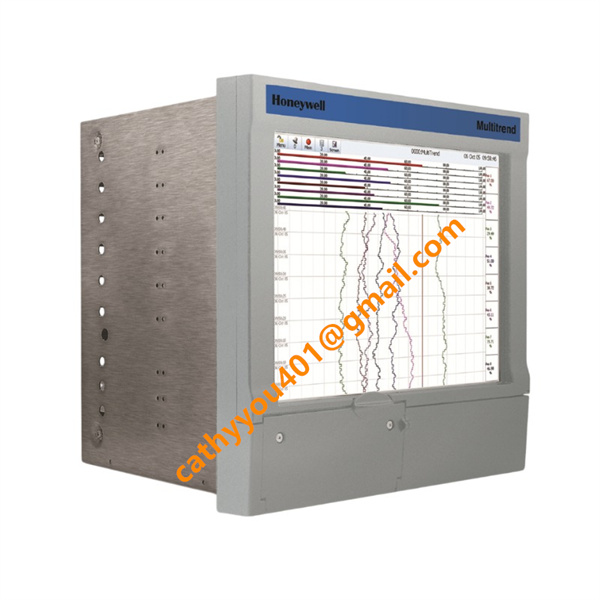

Honeywell TVMUGR-888888-222-12-4-090-RU000E-000 Paperless Graphic Recorder

• Brand
  Honeywell
• Model
  TVMUGR-888888-222-12-4-090-RU000E-000
• Product Name
  Multitrend GR 12.1" Touch Screen Advanced Paperless Graphic Recorder
• Country of Origin
  United States
• HS Code
  9031809085
• Dimensions
  288 mm x 288 mm
• Weight
  7.5 kg
• Operating Temperature
  0 °C to +50 °C (+32 °F to +122 °F)
• Storage Temperature
  -20 °C to +70 °C (-4 °F to +158 °F)
• Power Supply
  24vdc
• Warranty
  12 month
• Product Status
  New and original

Honeywell TVMUGR-888888-222-12-4-090-RU000E-000 Technical Specifications and General Information

Input Configurations

Total Analog Input Channels: 48 universal analog input channels (Fully configured via six internal 8-channel input hardware boards, represented by the "888888" hardware slot arrangement).

Supported Universal Input Signal Types:

DC Voltage loops: 0–10mV, 0–100mV, 0–1V, 0–5V, 1–5V, 0–10V, ±10V.

DC Current loops: 4–20 mA or 0–20 mA (Utilizing high-precision external 250-ohm shunt resistors across inputs).

Thermocouples (TC): Type J, K, T, E, R, S, B, N, L, U, C, D.

Resistance Temperature Detectors (RTD): Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Ni120.

Discrete Digital (Binary) Inputs: Dedicated multi-channel digital contact state inputs for tracking external relay switches, remote batch initialization commands, or high-speed frequency pulse counts up to 25 kHz.

Analog Input Resolution: 24-bit internal analog-to-digital (A/D) converter architecture yielding extreme precision.

Data Logging Scan Rate: Selectable sampling intervals ranging from ultra-high-speed 20 milliseconds (50Hz logging burst mode) up to several hours per sample.

Output and Interface Specifications

Discrete Relay Outputs: Integrated mechanical alarm relays (Form C SPDT or Form A SPST configurations) rated up to AC 240V / 3A or DC 30V / 3A to initiate field warning sirens, safety shutdowns, or external interlocking control logic.

Auxiliary Power Output: Internal isolated DC 24V transmitter power loop supply block to drive passive 2-wire field instruments directly.

On-Board Internal Storage Memory: 2 GB to 4 GB non-volatile internal flash memory array to safeguard data during extended power loss.

Front/External Storage Interfaces: Dedicated SD Card media slot and high-speed USB host ports located behind a secure weatherproof front access flap.

Communication Modules: Standard RJ45 10/100 Base-T Ethernet port supporting Modbus TCP/IP (Client/Server protocol layers), DHCP configuration, automatic email alert dispatching, and FTP client data extraction. Includes options for RS485 serial communication networks.

Firmware Credits Allocation: Pre-loaded with 90 firmware credits (indicated by the "090" code string) enabling advanced system features such as mathematical expressions, batch operations, totalizer routines, and customizable custom graphic display builders.

Honeywell TVMUGR-888888-222-12-4-090-RU000E-000 Comprehensive Wiring Method and Connection Steps

All electrical field installation actions must be performed by certified instrumentation technicians. Ensure the main power isolation switch feeding the panel cutout is locked and tagged out prior to making physical terminal contact.

Panel Cutout and Mechanical Mounting: Prepare a clean square 281 mm x 281 mm cutout in the metal enclosure panel sheet. Slip the supplied high-density compression gasket over the recorder chassis from behind the front bezel. Insert the recorder into the panel cutout and tighten the side-mounted screw clamps evenly from behind until the front bezel sits completely flat against the panel surface to secure the IP66/NEMA 4X boundary.

Safety Grounding (Protective Earth): Attach a heavy-gauge copper grounding cable (Minimum wire cross-section of 2.1 mm

Primary Power Supply Connection: Route the AC line supply wires (Acceptable operational matrix of 90 V to 240 V AC at 50/60 Hz) through a dedicated 2A inline circuit breaker. Connect the hot line, neutral line, and safety ground to the designated fused power terminal strip on the rear terminal section.

Universal Analog Input Field Termination: Strip the insulation of your shielded twisted-pair field sensor leads. Connect the signals to the specific channels on the input boards. For 4–20 mA inputs, bridge the channels with the appropriate high-precision 250Ω precision shunt resistors. For Thermocouples, land the wires directly to ensure proper internal Cold Junction Compensation (CJC).

Instrumentation Cable Shielding Management: Strip the external jacket of the incoming signal lines back by approximately 50 mm. Connect the bare braided metal shield drains cleanly to the localized instrument grounding plate using broad metallic grounding clamps. Do not tie shields to the signal negative terminals to prevent differential common-mode loop errors.

Honeywell TVMUGR-888888-222-12-4-090-RU000E-000 Key Product Advantages

High-Density Channel Layout: Consolidates up to 48 discrete process loops onto a single physical chassis, radically reducing control panel real estate requirements and simplifying data aggregation.

Robust Cyber Security & Regulatory Compliance: Features the Extended Security System (ESS) suite delivering permanent password masking, audit-trail logs, and cryptographic file encryption to strictly enforce FDA 21 CFR Part 11 criteria.

Solar-Bright Multi-Trend Presentation: The vivid SVGA TFT matrix supports rapid screen navigation, helping plant operators switch views instantly between scrolling charts, large digital numerical displays, circular charts, and custom process line drawings.

Zero Mechanical Maintenance Overheads: By migrating fully to solid-state data recording, facilities completely eliminate the high recurring operational costs associated with mechanical slide pens, replacement chart ink, and paper jamming failures.

•
