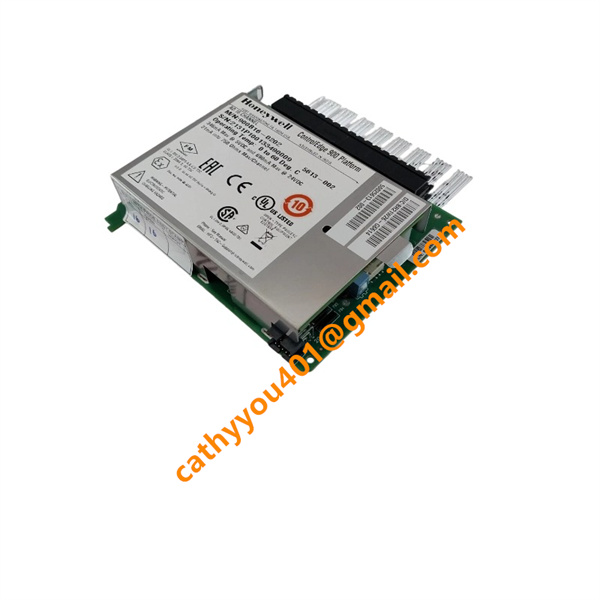

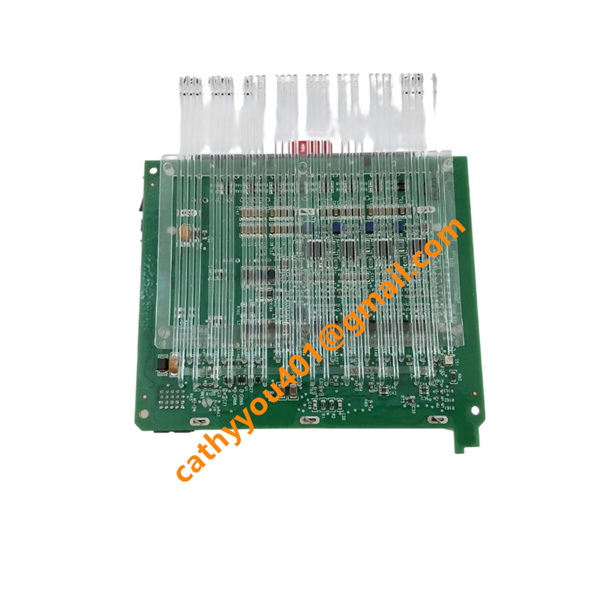

Honeywell 900B16-0202 Analog Input Module

• Brand
  Honeywell
• Model
  900B16-0202
• Product Name
  16-Channel High-Level Analog Input Module
• Country of Origin
  United States
• HS Code
  85389091
• Dimensions
  145 mm x 35 mm x 120 mm (H x W x D)
• Weight
  0.45 kg
• Operating Temperature
  0°C to +60°C (32°F to 140°F)
• Storage Temperature
  -40°C to +85°C (-40°F to 185°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Honeywell 900B16-0202 Technical Specifications

Input Specifications

Number of Channels: 16 channels (Single-ended configuration)

Input Signal Ranges: * Voltage: 0 to 1 V DC, 0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC, ±10 V DC

Current: 0 to 20 mA or 4 to 20 mA (Requires external precision shunt resistors)

Resolution: 16-bit analog-to-digital converter (ADC)

Galvanic Isolation: Module-to-system isolation, providing robust protection for internal controller electronics against external field surges.

Output & Communication

Output Type: Internal backplane digital communication (translates external field analog data into system variables for the HC900 controller).

Update Rate: Fast sampling rate suitable for dynamic process monitoring.

Honeywell 900B16-0202 Key Product Advantages

High-Density Monitoring: Featuring 16 analog input channels in a single slot, this module drastically reduces the required rack space and lowers the overall system cost per loop.

Exceptional Versatility: Universally configurable to accept a wide variety of voltage and current ranges, simplifying spare parts inventory and system engineering.

Industrial-Grade Reliability: Built with robust galvanic isolation to prevent ground loop problems and shield the core CPU from unpredictable electrical noise on the factory floor.

Easy Maintenance (Hot-Swappable): The module can be inserted or removed under power without disrupting the rest of the control system, minimizing plant downtime during maintenance or upgrades.

Seamless Integration: Designed exclusively for the Honeywell HC900 platform, ensuring plug-and-play compatibility, rapid software configuration via Hybrid Control Designer, and flawless diagnostics.

Honeywell 900B16-0202 Wiring & Connection Method

Terminal Block Compatibility: Requires a dedicated Honeywell Euro-style or barrier-style terminal block plug-in connector (typically 36-pin).

Wiring Method: Screw-terminal connections directly onto the removable terminal block assembly. This design allows for "Hot-Swapping" (replacing the module without disconnecting the field wiring or shutting down the system power). Shielded twisted-pair cabling is strongly recommended for all analog input loops to minimize electromagnetic interference.

•
