Description
-
BrandHoneywell
-
ModelFC-QPP-0002
-

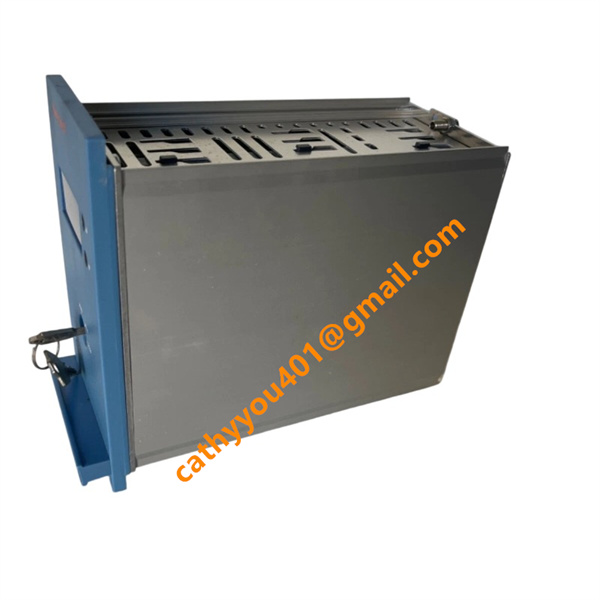

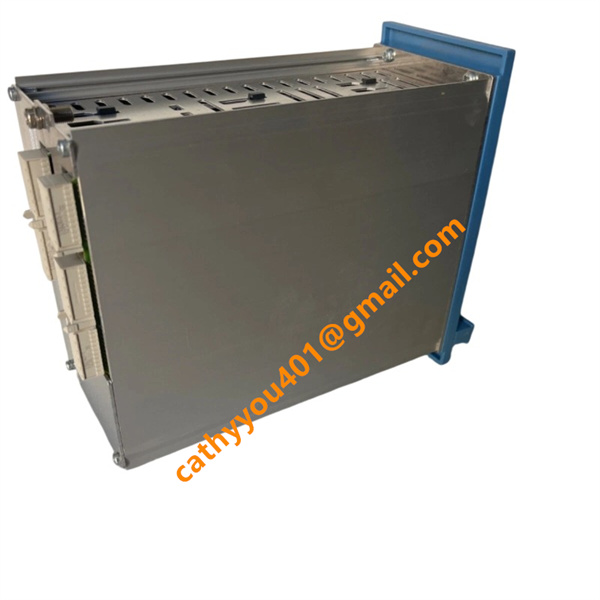

Product NameQuad Processor Pack (QPP) Module / Safety Manager Processor
-
Country of OriginNetherlands / USA
-
HS Code85389091
-
Dimensions320mmx240mmx40mm
-
Weight1.2 kg (2.64 lbs)
-
Operating Temperature0°C to +60°C (32°F to 140°F)
-
Storage Temperature-40°C to +85°C (-40°F to 185°F)
-
Power Supply24VDC
-
Warranty12 month
-
Product StatusNew and original
Honeywell FC-QPP-0002 Core Specifications
Electrical & Environmental Specs
Input Voltage / Power Supply: 24 V DC nominal (supplied via the Safety Manager backplane)
Inputs/Outputs (I/O Capability): Interfaces directly with Safety Manager I/O chassis via high-speed redundant control networks to process digital and analog safety signals.
Honeywell FC-QPP-0002 Key Product Advantages
Quad-Processor Architecture: Features a unique redundant processing design that provides maximum fault tolerance, ensuring that a single internal component failure will not compromise the safety function.
High Availability: Supports hot-swapping and seamless redundancy transitions, minimizing system downtime during maintenance or module replacement.
SIL 3 Certified: Fully certified for use in Safety Integrity Level 3 (SIL 3) applications in compliance with IEC 61508 standards.
Robust Diagnostics: Equipped with extensive self-testing and diagnostic capabilities that immediately flag internal faults, ensuring predictable and safe fail-to-stop behavior.
Honeywell FC-QPP-0002 Wiring and Connection Method

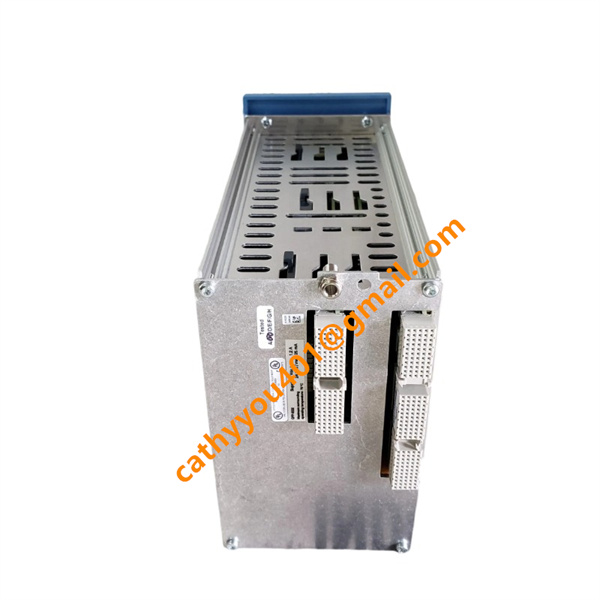

Wiring/Connection: This module utilizes a plug-in / backplane mounting connection method. It slides directly into the dedicated slots of the Honeywell Safety Manager controller chassis.
All communication, power delivery, and I/O interfacing are routed automatically through the heavy-duty multi-pin connectors on the backplane, eliminating the need for direct external point-to-point wiring to the module faceplate. External field wiring is managed via separate termination assembly modules (FTAs).
