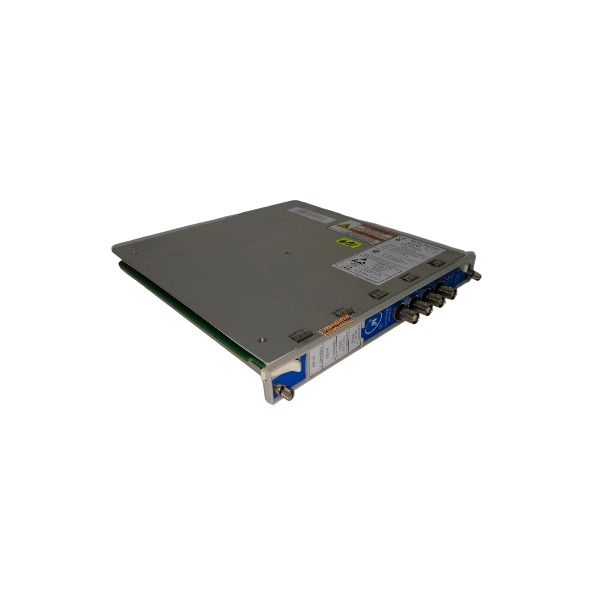

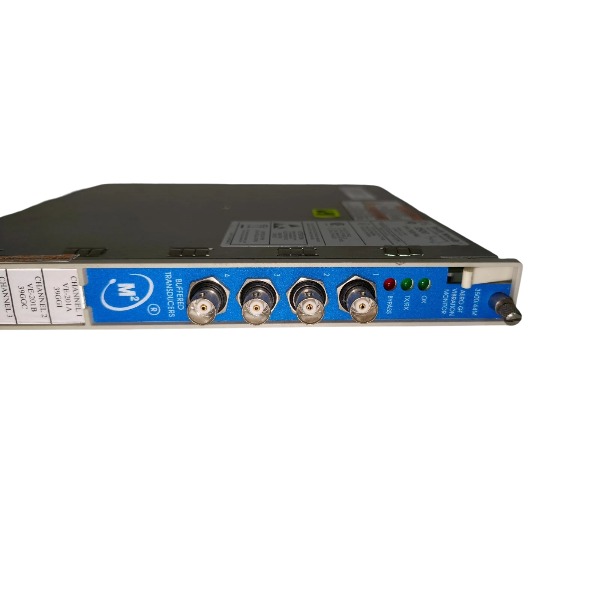

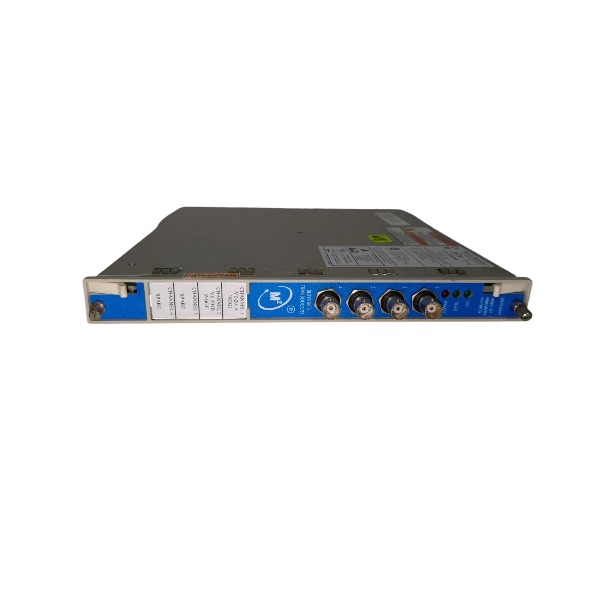

3500/44M Bently Nevada Aeroderivative GT Vibration Monitor

• Brand
  Bently Nevada
• Model
  3500/44M
• Product Name
  Aeroderivative GT Vibration Monitor
• Place of Origin
  United States
• Customs HS Code
  85437099
• Power Supply
  320 mA
• Dimensions
  221 mm × 30.5 mm × 234 mm
• Weight
  0.86 kg
• Operating Temperature
  -40℃ to +85℃
• Storage Temperature
  -40℃ to +100℃
• Warranty
  12 month
• Product Status
  new

Common Faults and Troubleshooting for Bently Nevada 3500/44M

1. Module FAIL LED lit, module offline

Symptom: FAIL indicator on front panel, no data transmission to rack software

Possible causes: Poor backplane contact, unstable rack power supply, internal hardware failure of the monitor

Solution: Execute lockout-tagout, pull out and re-seat the module; verify rack DC power voltage; swap with a spare 3500/44M. If the fault transfers to the spare slot, replace the faulty module.

2. Channel OK LED off, transducer fault alarm

Symptom: Single channel reports transducer error, no valid measurement value

Possible causes: Open circuit, short circuit or insulation damage of velocity/accelerometer sensor cable; damaged transducer; loose terminal wiring

Solution: Power off the channel, test cable continuity and insulation resistance; inspect connector pins for corrosion; replace the transducer or extension cable if defective.

3. Unstable, jumping or drifting vibration readings

Symptom: Measurement value fluctuates abnormally while machine condition remains stable

Possible causes: Electromagnetic interference, improper cable shielding, loose sensor mounting, incorrect filter or integration parameter settings

Solution: Route signal cables away from high-current cables and variable-frequency drives; check single-point grounding of cable shield; re-tighten sensor mounting bolts; adjust filter and integration settings via 3500 configuration software.

4. Nuisance Alert or Danger alarm without actual machine abnormality

Symptom: Alarm triggers frequently, no abnormal vibration found by portable tester

Possible causes: Improper alarm setpoints, incorrect multi-mode threshold configuration, unsuitable alarm delay time

Solution: Review alert and danger setpoints and time delays in configuration software; verify multi-mode parameter groups for different operating conditions; check keyphasor signal stability if speed tracking is enabled.

5. Missing vibration data in DCS / System 1, while module OK LED is normal

Symptom: Module works normally locally, but no process value transmitted to host system

Possible causes: Backplane communication failure, incorrect analog output scaling, communication module fault

Solution: Confirm backplane status and rack interface module; check 4–20 mA analog output calibration; verify network and EGD configuration of communication module.

6. Keyphasor loss or speed tracking failure

Symptom: Loss of tachometer signal, tracking filter cannot operate normally

Possible causes: Damaged keyphasor probe, loose wiring, incorrect trigger level configuration

Solution: Inspect keyphasor transducer and cable; test trigger signal amplitude; adjust trigger level and edge selection in software.

7. Configuration download failure

Symptom: Cannot download configuration to 3500/44M via rack software

Possible causes: Wrong module model selected, configuration version mismatch, rack communication interruption

Solution: Confirm the selected module type is 3500/44M; match firmware and software revision; re-establish rack communication before downloading.

 What are the advantages of the Bently Nevada 3500/44M compared to other similar products?

The Bently Nevada 3500/44M functions as a dedicated air gap and differential expansion monitor tailored for large synchronous machines and hydro generators, offering notable benefits over general TSI modules and third-party position monitors.

Specialized measurement algorithm for generator air gap

While conventional proximity monitors are primarily designed for shaft vibration and thrust position measurement, the 3500/44M is optimized for rotor-stator air gap and differential expansion monitoring. It enables custom calibration for eddy-current air gap probes and maintains reliable measurement performance under heavy electromagnetic interference within large generators.

Deep integration with the proven 3500 rack ecosystem

The module communicates over the native 3500 backplane and operates compatibly with System 1 software to support long-term trend recording, event logging and diagnostic analysis. Most rival standalone monitors need additional gateways or customized protocol development to transfer data to condition monitoring systems.

Comprehensive on-board diagnostic capability

It performs continuous supervision of transducer condition, cable open/short circuits, signal overload and internal module health. The unit can effectively differentiate genuine machinery faults from sensor and wiring defects, lowering the risk of unwanted alarms and false trips frequently seen in alternatives with limited diagnostic functions.

Flexible alarm setup adaptable to diverse machine operating states

Every channel is equipped with independent alert and danger setpoints, configurable alarm delays and latch features. Operators can adjust alarm thresholds to match startup, load variation and steady-state working conditions, a capability not easily achieved with many basic 4-channel position monitors.

Dual output modes for protection and control applications

It supplies hardware relay outputs for machinery trip protection together with isolated 4–20 mA analog outputs for DCS display simultaneously. This design isolates safety protection logic from routine process indication, unlike many competing products that only provide a single output type.

Conformance to international machinery protection standards

The whole 3500 series complies with API 670 and supports SIL-capable protection configurations. It possesses extensive on-site application experience in hydroelectric generators and large synchronous equipment, whereas many alternative monitors lack complete third-party certification for critical machine protection duties.

Consistent configuration workflow

All parameters such as probe characteristic curves, filter settings and alarm logic are configured via the standard 3500 rack configuration software. Technicians experienced with the 3500 platform can complete configuration, commissioning and maintenance without mastering separate proprietary software from other suppliers.
