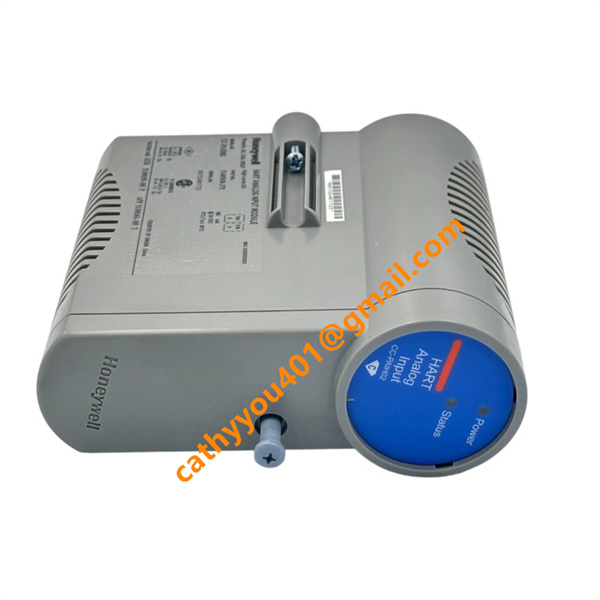

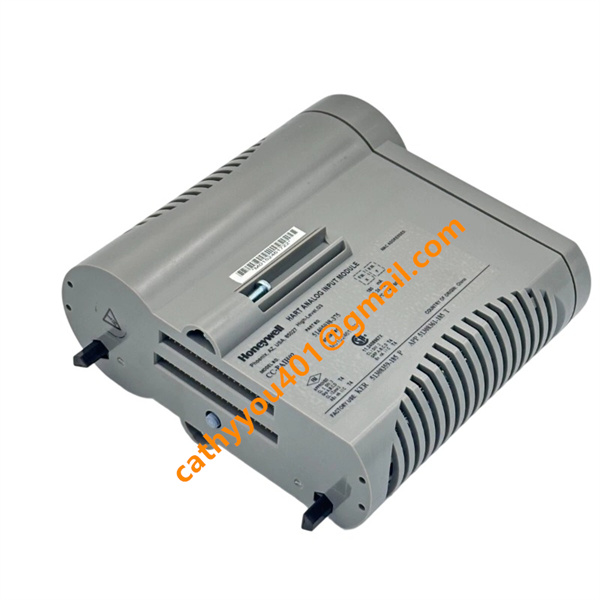

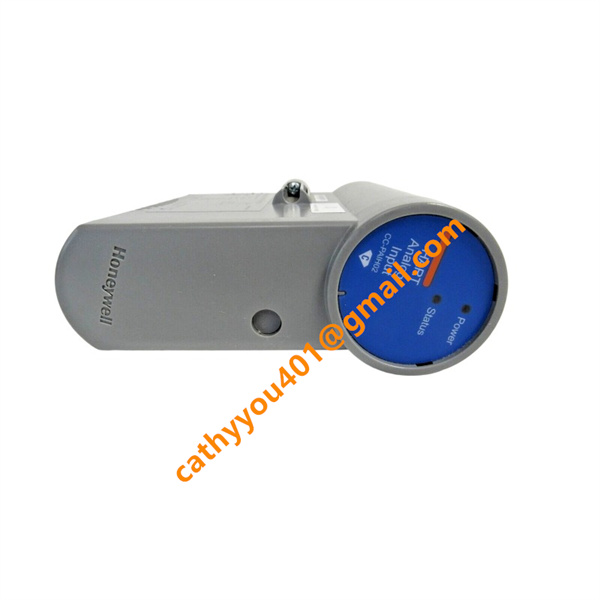

Honeywell CC-PAIH02 Analog Input Module

• Brand
  Honeywell
• Model
  CC-PAIH02
• Product Name
  High-Level Analog Input Module with HART
• Country of Origin
  United States
• HS Code
  8538909100
• Dimensions
  12.5 cm x 13.0 cm x 3.8 cm
• Weight
  0.35 kg (0.77 lbs)
• Operating Temperature
  -40°C to 70°C (-40°F to 158°F)
• Storage Temperature
  -40°C to 85°C (-40°F to 185°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Honeywell CC-PAIH02 Technical Specifications

Input & Output Specifications

Number of Channels: 16 Input Channels

Input Type: High-Level Analog Input (typically 4-20 mA current loops)

HART Support: Bi-directional HART pass-through communication on all 16 channels

A/D Converter Resolution: 16-bit resolution for high-precision data conversion

Output Capabilities: While primarily an input module, it supplies loop power to field transmitters (typically 24V DC open-circuit voltage)

Honeywell CC-PAIH02 Product Functions & Key Features

Core Functions

Analog-to-Digital Conversion: Converts 4-20 mA process variable signals from field instruments into accurate digital data for the C300 controller.

HART Data Pass-Through: Enables maintenance software (like Honeywell's Asset Manager) to read device parameters, calibration data, and secondary variables from smart field instruments.

Loop Power Supply: Provides integral 24V DC power to 2-wire transmitters, eliminating the need for external loop power supplies.

Key Features and Characteristics

Hot-Swappable Design: The module can be plugged in or removed under power without interrupting the operation of other modules or shutting down the system.

Galvanic Isolation: Features channel-to-channel and channel-to-system isolation to shield the sensitive control architecture from field-side electrical surges, noise, and ground loops.

High Density: Features 16 channels packed into a compact Series C form factor, optimizing cabinet space and reducing overall footprint.

Advanced Diagnostics: Offers continuous board-level self-diagnostics, including open-circuit detection, short-circuit detection, and out-of-range signal alarms.

Conformal Coating: Standard G3-grade conformal coating provides superior protection against harsh, corrosive, and humid industrial environments.

Honeywell CC-PAIH02 Wiring & Termination

Wiring Method: Utilizes an I/O Termination Assembly (IOTA) block. Field wiring is connected directly to the CC-TAIH01 or CC-TAIH11 termination assembly via screw-terminal or compression-terminal connections, allowing for easy hot-swapping of the active module without disturbing the physical field wires.

•
