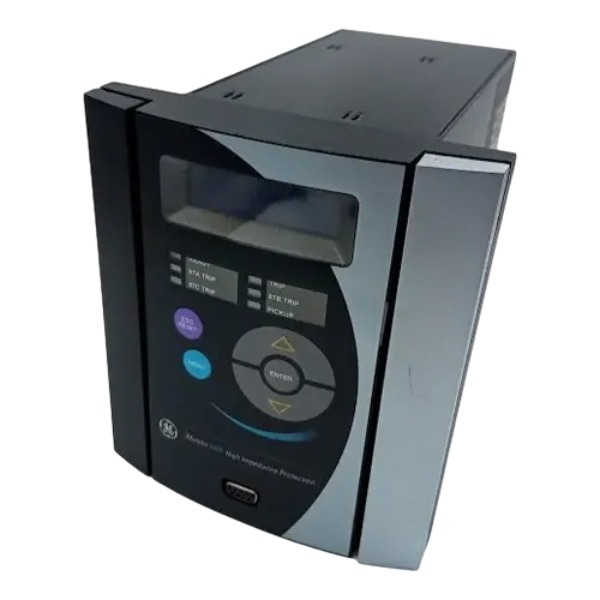

MIB30HICE00000 GE Differential Protection Relay new

• Brand
  GE
• Model
  MIB30HICE00000
• Product Name
  High‑Impedance Busbar Differential Protection Relay
• Place of Origin
  United States
• Customs HS Code
  8537101190
• Power Supply
  1 A or 5 A
• Dimensions
  177 mm × 177 mm × 210 mm
• Weight
  3.2 kg
• Operating Temperature
  ‑20℃ to +60℃
• Storage Temperature
  ‑40℃ to +80℃
• Warranty
  12 month
• Product Status
  new brand

GE MIB30HICE00000 Input and Output

Product Type: GE Multilin High Impedance Differential Module for generator / transformer differential protection

Inputs

Main Analog Input: Differential current signal from CT secondaries for high-impedance differential protection; multi-phase CT residual current inputs connected in parallel to the differential loop

Nominal CT secondary current: 1 A / 5 A selectable; Maximum continuous differential current: 15 A; Transient withstand current: 100 A (1 second)

DC Power Input: 125 VDC auxiliary power supply for module operation

Operating voltage range: 88-140 VDC; Power consumption: ≤15 W

Binary Input (optional): External blocking / enable logic signals for protection supervision

Binary input rated: 125 VDC; Pick-up threshold: 88 VDC minimum; Drop-off: 40 VDC maximum

Internal circuit: Built-in 2000 Ω high impedance resistor and MOV voltage clamping component to limit overvoltage during CT saturation

MOV clamping voltage: 300 V peak

Outputs

Trip Output: Hard contact relay output for differential fault trip command

Contact rating: 8 A / 250 VAC, 8 A / 30 VDC; Make-break capability for trip circuit

6 configurable logic status outputs (4 user programmable via EnerVista MII setup software, 2 fixed dedicated outputs):

Fixed Output 1: READY status contact

Fixed Output 2: DIFFERENTIAL TRIP contact

4 programmable outputs: assignable for alarm, auxiliary trip, fault indication or supervision signals

Logic contact rating: 5 A / 250 VAC, 5 A / 30 VDC resistive load

LED Status Output Indicators: 6 LEDs corresponding to above output channels for local visual indication

LED operating supply: derived from module internal 5 VDC

Communication Interface: Backplane bus output to exchange fault event and diagnostic data with host Multilin relay

Functions of GE MIB30HICE00000

Product Type: GE Multilin High-Impedance Differential Module dedicated for generator and transformer differential protection

Core Differential Protection: Acquires secondary residual current signals from parallel-connected CTs, accurately identifies internal faults of protected equipment and differentiates internal faults from external faults, effectively avoiding false tripping induced by CT saturation.

Integrated Overvoltage Suppression: Embeds a 2000 Ω high-resistance resistor and MOV surge suppression component to clamp excessive overvoltage caused by CT saturation during external system faults.

Binary Logic Control: Accepts external binary enable and blocking signals to implement flexible protection logic switching and operational supervision.

Hard-contact Trip Output: Provides reliable relay contact trip commands to trigger circuit breaker tripping once internal differential faults are detected.

Multi-Functional Status Outputs: Features six configurable logic contacts, including two fixed contacts for device READY status and differential trip indication, plus four fully programmable contacts for customized alarm, auxiliary trip, fault indication and system supervision via EnerVista MII software.

On-Site Visual Indication: Six matching LED indicators display real-time status of each output channel for intuitive on-site inspection.

Continuous Self-Diagnosis & Supervision: Real-time monitors internal hardware and circuit operating conditions, and outputs alarm signals upon module abnormalities or faults.

Backplane Data Communication: Interacts fault records, event logs and diagnostic information with the host Multilin relay via backplane bus to support remote monitoring and professional fault analysis.

Software Configurable Functionality: Supports on-site protection parameter calibration and logic assignment through the EnerVista MII configuration tool.
