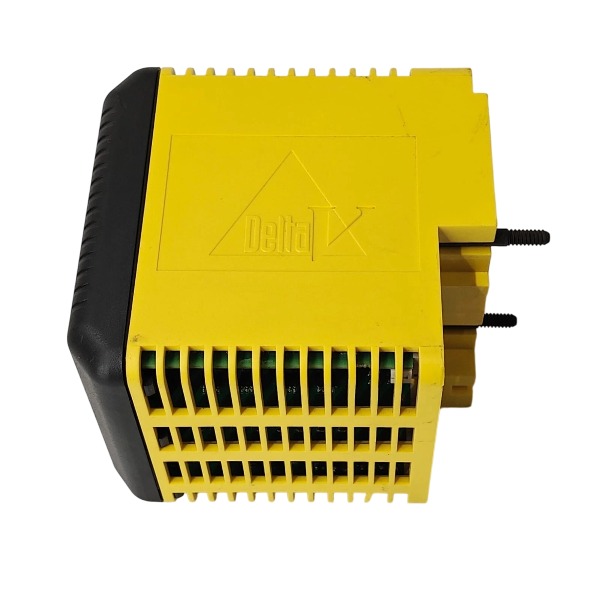

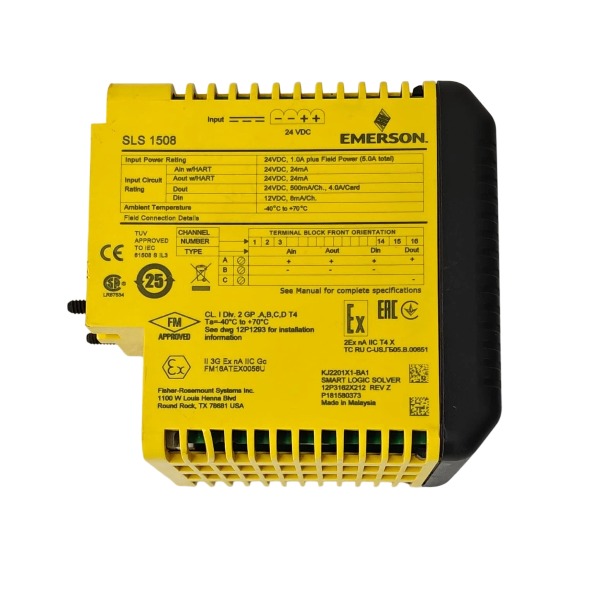

KJ2201X1-BA1 SLS1508 EMERSON Smart Logic Solver in stock

• Brand
  EMERSON
• Model
  KJ2201X1-BA1 SLS1508
• Product Name
  Smart Logic Solver
• Place of Origin
  United States
• Customs HS Code
  85371011
• Power Supply
  24 V DC
• Dimensions
  243.8 mm × 243.8 mm × 73.7 mm
• Weight
  0.9 kg
• Operating Temperature
  -40℃ to +70℃
• Storage Temperature
  -40℃ to +85℃
• Warranty
  1 yeaar
• Product Status
  new and original

Application Scenarios of Emerson KJ2201X1-BA1 (SLS1508)

The KJ2201X1-BA1 (SLS1508) is a SIL-certified safety logic solver within the DeltaV SIS platform. It is designed to implement high-integrity safety instrumented functions, operating independently from basic process control systems.

Emergency Shutdown System (ESD)

It executes emergency shutdown logic for wellheads, pipelines, refineries and LNG facilities. The module initiates quick isolation of process streams and tripping of rotating machinery once pressure, temperature or level values go beyond safe operating thresholds.

Fire and Gas (F&G) Safety System

It processes signals from flame detectors as well as toxic and combustible gas sensors. When fire or gas leakage is detected, it triggers alarm alerts, activates water deluge systems and isolates relevant process equipment.

Burner Management System (BMS)

It manages safe ignition sequences, flame supervision and emergency trips for industrial boilers, fired heaters and furnaces. It avoids uncontrolled fuel delivery and potential explosion risks during equipment startup and normal operation.

High Integrity Pressure Protection System (HIPPS)

It delivers rapid overpressure protection for high-pressure pipelines and reactors. As an independent safety barrier, it prevents relief valves from being overloaded and protects against process rupture risks.

Turbine and Compressor Machinery Protection

It implements safety interlocks such as overspeed protection for steam and gas turbines, vibration trips and anti-surge protection for compressors in power stations and hydrocarbon processing plants.

Chemical Reactor Safety Interlock

It monitors abnormal reactor conditions including overtemperature, overpressure and irregular feed flow. It executes fast trip sequences to terminate reactions and reduce hazards caused by thermal runaway.

Pharmaceutical and Fine Chemical High-pressure Process Safety

It supports safety instrumented loops for autoclaves and batch reaction units. It provides IEC 61508 compliant safety logic for processes involving hazardous materials.

Offshore Oil & Gas Platform Safety Instrumented Loops

It accommodates redundant safety architectures for offshore platforms. It undertakes ESD, fire detection and hazardous gas protection under severe marine operating environments.

Power Generation Plant Critical Safety Control

It is deployed in thermal power units to implement boiler protection, generator tripping and safety interlocking for auxiliary equipment.

Operation Manual for Emerson KJ2201X1-BA1 (SLS1508) Safety Logic Solver

Required Tools: Screwdriver, DeltaV SIS engineering workstation, AMS Device Manager, multimeter, lockout-tagout kits

Pre-operation Safety & Inspection

Apply lockout-tagout procedures to the cabinet 24 VDC power supply and all field safety circuits. Confirm the part number KJ2201X1-BA1 (SLS1508). Inspect the module for physical damage, bent connector pins or surface contamination. Verify that ambient temperature and humidity fall within rated specifications and sufficient airflow is maintained around the carrier slot. Confirm the carrier backplane, SISnet bus and terminal blocks conform to project design requirements. This is a SIL-qualified safety module, and all related operations must be carried out by competent SIS engineers.

Module Installation

Make sure rack power and field loop power are de-energized before module insertion. Align the module connectors with the designated DeltaV SIS carrier slot, and push steadily until the latches engage securely. Check module keying features to prevent installation on incompatible I/O carriers. For redundant configurations, mount the matching SLS1508 module in the redundant slot and complete SISnet bus wiring.

Wiring and Termination

Run 24 VDC rack power to the carrier power terminals. Terminate field safety inputs including ESD pushbuttons, fire and gas detectors, and process transmitters to the module terminal blocks. Separate safety signal cables from high-current power cables during routing. Terminate cable shields to the cabinet protective earth in compliance with site standards. Complete SISnet communication wiring to support synchronization between modules. Perform a full wiring inspection and eliminate potential short-circuit hazards prior to power application.

Engineering Configuration via DeltaV SIS Workstation

Start DeltaV SIS configuration software and import the device description file for the SLS1508. Add the module into the SIS network topology. Define safety input channels, voting schemes, trip logic and relay output actions. Configure safety parameters such as fault response modes, fail-safe states and diagnostic alarm thresholds. Enable event logging to capture safety trips and fault records. Download the compiled safety logic to the module only after offline validation and safety review. Use AMS Device Manager to perform firmware upgrades and access remote diagnostics.

Power-on and Initial Check

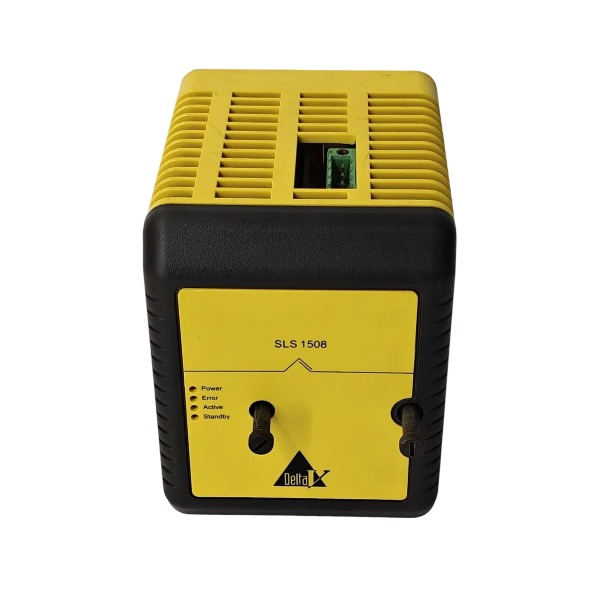

Remove lockout-tagout locks for rack power only after wiring checks are finished. Energize the 24 VDC rack supply first. Observe front-panel LEDs covering power, RUN status, SISnet communication and channel health. Confirm the module enters normal RUN mode with no active critical fault indicators. Validate online communication between the module and the DeltaV SIS engineering workstation. Examine diagnostic data to identify wire breaks, short circuits or internal hardware alarms.

Safety Loop Functional Test

Carry out proof testing for every safety loop in accordance with the SIL test schedule. Simulate input faults and process trip conditions to validate logic execution. Confirm outputs transition to the predefined fail-safe state within the required response time. Verify alarms are transmitted to the DeltaV operator station and event timestamps are properly recorded. Test the switchover function of redundant module pairs: the standby unit shall take over logic execution without interruption to safety functions upon primary module failure. Document all proof test results for SIL lifecycle records.

Normal Online Operation

During steady-state operation, monitor module status, channel integrity and SISnet synchronization through DeltaV operator displays. Safety logic shall not be modified online unless formal approval is obtained from the site safety authority. The module runs continuous 1oo2 dual voting and stores all trip events and diagnostic records in non-volatile memory. Hot removal is not permitted unless hot-swap capability is confirmed and a formal safety bypass procedure is approved.

Fault Handling and Maintenance

When the FAULT LED is activated, isolate the affected safety loop and implement an authorized bypass before maintenance. Inspect carrier power supply, SISnet cables, field wiring and sensor health. Module replacement can only proceed after lockout-tagout and safety bypass are applied. The module has no field-repairable internal components; disassembly is strictly forbidden. After replacement, re-download the configuration and repeat loop proof testing before returning the system to service.

Post-test and Handover

Archive the safety configuration file, proof test reports and diagnostic logs. Remove all test jumpers and restore field wiring to its original state. Release safety bypass and lockout-tagout only after all loops pass acceptance testing.
