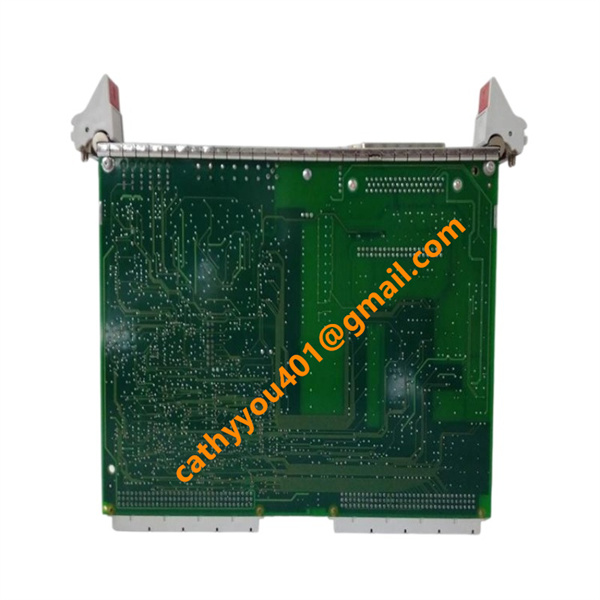

PFSK162 3BSE015088R1 ABB Industrial Processor Board

• Brand
  ABB
• Model
  PFSK162
• Product Name
  Industrial Processor Board
• Place of Origin
  Sweden
• HS Code
  8537101190
• Dimensions
  263 mm × 138 mm × 88 mm
• Weight
  0.43 kg
• Operating Temperature
  -25 °C to +70 °C
• Storage Temperature
  -25 °C to +70 °C
• Part Number
  3BSE015088R1
• Warranty
  12 month
• Product Status
  new and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Nominal supply voltage: 24 VDC

Permitted operating supply range: 19.2 VDC to 30 VDC

Power consumption: Maximum 5 W

Sensor excitation output: 24 VDC, 4 mA

Compatible analogue signal interfaces:

0 ~ 10 V voltage signals

4 ~ 20 mA current loop signals

Isolation characteristic: Galvanic isolation implemented between field circuit and control system circuit

Analogue measurement resolution: Optimised for signal acquisition of 0~10V and 4~20mA input ranges

Limit parameters for 4–20 mA loops:

Maximum field loop current: 22 mA

Maximum load voltage on current loop: 12 V

Preparations

Disconnect the system power before installation. Check the module for physical damage. Ensure sufficient ventilation space in the control cabinet.

Mechanical Mounting

Mount on standard TH35 DIN rail or matching ABB subrack. Hook the module onto the rail and push until locked firmly. Install end stops to prevent sliding under vibration.

Wiring Rules

Use shielded twisted-pair cables for analog signals. Wire strictly in accordance with the wiring diagram. Tighten terminal screws with appropriate torque. Separate high-voltage power cables from weak signal cables to reduce EMI.

Inspection Before Power On

Check wiring against short circuits and reverse polarity. Confirm correct DIP switch and jumper settings. Remove debris from terminals.

Power On and Commissioning

Switch on 24 VDC power supply. Check LED status indicators. Perform signal calibration and test 0~10 V / 4~20 mA analog signals.

Important Notes

IP20 rating, for cabinet indoor use only. Keep away from heat, moisture and corrosive atmosphere. Power off the whole system before module replacement.
