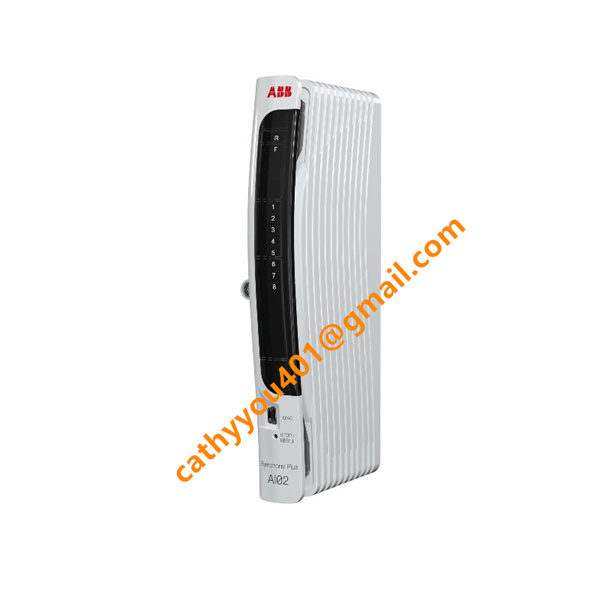

AI02J ABB DCS 16-Channel Analog Input Module

• Brand
  ABB
• Model
  AI02J
• Product Name
  16-Channel Analog Input Module with HART, Quick Response
• Place of Origin
  United States
• HS Code
  85389081
• Dimensions
  263 mm × 58 mm × 28 mm
• Weight
  0.43 kg
• Operating Temperature
  -20 ℃ to 50 ℃
• Storage Temperature
  0 ℃ to 60 ℃
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New brand

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Installation steps for ABB AI02J
Install ABB AI02J inside a Symphony Plus DCS rack with all rack power disconnected and ESD protection applied. Insert the module into the assigned slot and secure front panel screws for stable backplane connection. Route shielded twisted-pair cables for all 16 analog input channels, separate signal wiring from high-voltage power cables and adopt single-point shielding grounding to avoid ground loops. Perform thorough wiring inspection to rule out short circuits and reversed polarity before powering up.

After power-on, check front panel LED indicators and confirm the controller successfully recognizes the AI02J module via engineering software. Configure each channel parameters including signal range, scaling, filtering, circuit diagnosis and HART communication settings as required, then download configurations to the system. Use a signal calibrator to inject standard 4–20 mA signals for every channel, verify measurement accuracy on the operator station. If HART transmitters are deployed, test bidirectional communication and access device diagnostic information. Simulate open-circuit and abnormal input signals to validate fault alarm functions. Reconnect field instruments and conduct continuous running observation to ensure stable signal acquisition. Complete configuration backup and test records once all commissioning items pass. This module supports hot-swap maintenance; avoid disassembly and keep proper cabinet ventilation during long-term operation.
