9907-167 Woodward 505E Digital Turbine Controller

• Brand
  Woodward
• Model
  9907-167
• Product Name
  505E Digital Turbine Controller
• Place of Origin
  United States
• HS Code
  8537101190
• Dimensions
  356 mm × 279 mm × 102 mm
• Weight
  4.3 kg
• Operating Temperature
  -25°C ~ +65°C
• Storage Temperature
  -40°C ~ +85°C
• Power Supply
  18–32 V DC
• Warranty
  12month
• Product Status
  new and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Power Supply: Operating input voltage ranges from 18 V DC to 32 V DC.

Actuator Drive Outputs: Provides adjustable proportional driving signals to control actuator coils for valve regulation.

Analog Outputs: Features 6 configurable analog output channels with standard 4–20 mA signal range for external monitoring equipment.

Relay Outputs: Relay contacts support maximum rated voltage of 120 VAC or 24 VDC, with a resistive load current rating of 5 A.

Speed Sensor Input: Designed to receive variable alternating current signals generated by magnetic pickup speed sensors.

Digital Inputs: Requires 24 VDC logic level signals for discrete status acquisition.

Maximum power consumption: 35 W under full operating load conditions.

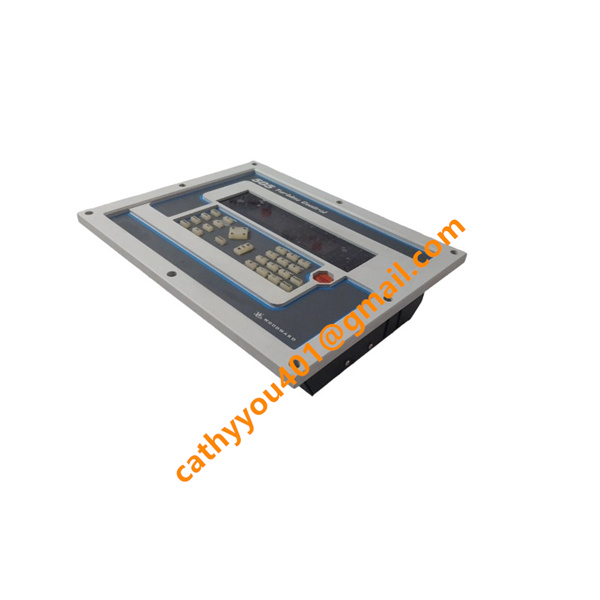

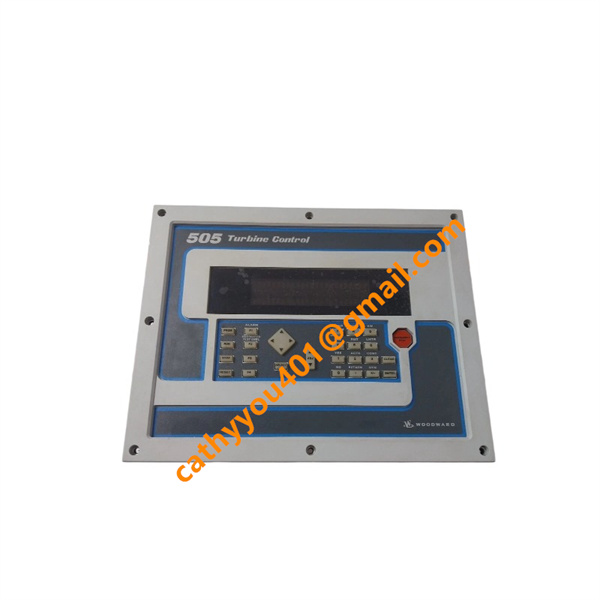

The Woodward 9907-167 (505E digital turbine governor) is designed for standard front panel mounting. A sealing gasket is installed on the back of the front bezel to form a tight seal between the controller and cabinet panel. Create the required cutout on the sturdy control cabinet panel, insert the controller from the front of the panel, and secure it in place using eight front mounting screws. Adequate clearance behind the panel must be reserved for wiring, heat dissipation and future maintenance.

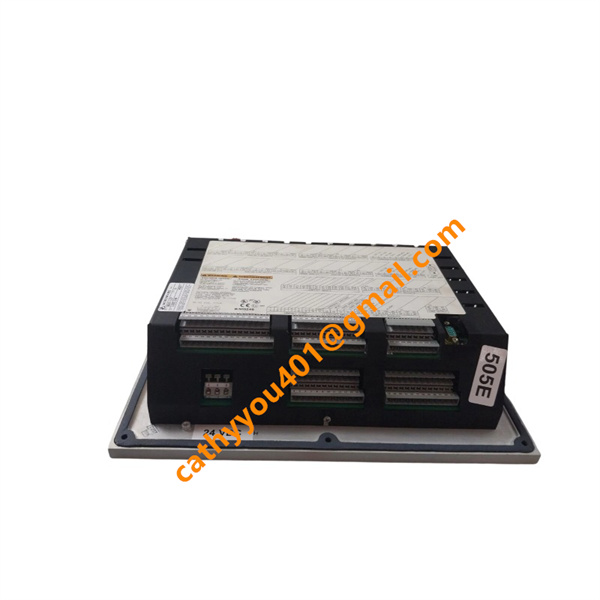

All field wiring connects to detachable terminal blocks at the rear of the controller. To minimize electromagnetic interference, low-power signal cables should be routed separately from high-current power cables.

For outdoor or severe operating conditions, an optional NEMA 4X protective enclosure can be used. The controller may be fitted onto the enclosure front door, and wiring conduits can be mounted through removable cable gland plates at the bottom of the enclosure.

Select a mounting location away from direct sunlight, intense vibration, corrosive vapors and splashing water, and ensure the ambient temperature stays within the rated operating range. Wear proper anti-static protection when handling the controller to avoid electrostatic damage to internal circuit boards. Avoid installation in poorly ventilated areas to prevent overheating.
