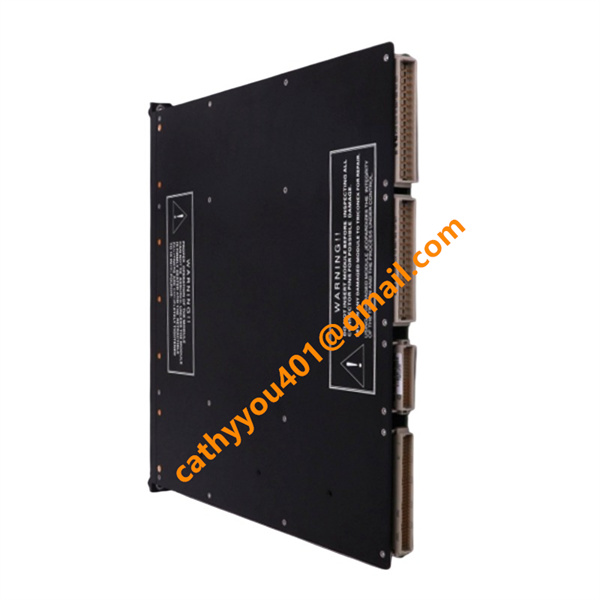

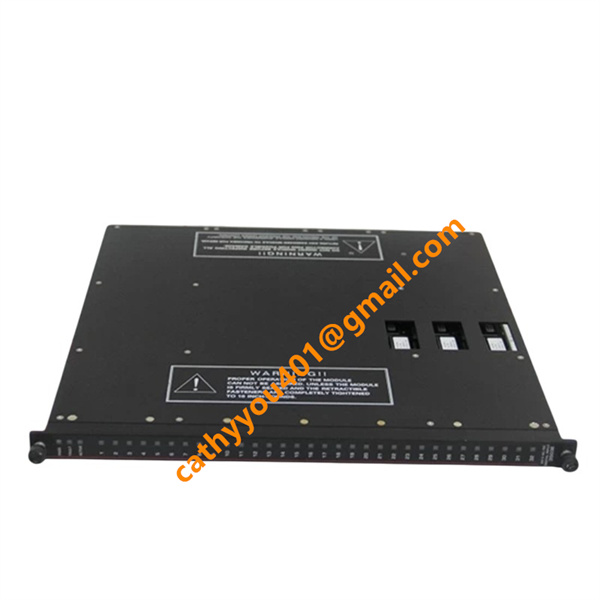

Triconex 5411H Digital Output Module

• Brand
  Triconex
• Model
  5411H
• Product Name
  TMR High-Current Digital Output Module
• Country of Origin
  United States
• HS Code
  8538909100
• Dimensions
  430mm(Height)×40mm(Width)×300mm(Depth)
• Weight
  2.8 kg (6.17 lbs)
• Operating Temperature
  0°C to 60°C (32°F to 140°F)
• Storage Temperature
  -40°C to 85°C (-40°F to 185°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Triconex 5411H Power and Input Specifications

Logic-Side Supply Voltage: 24V DC nominal power delivered natively via the internal chassis backplane

Field-Side Load Power: Requires an external 24V DC nominal power source (typically 20V DC to 36V DC operating range) to drive field actuators

Output and Channel Specifications

Total Output Channels: 8 or 16 independent digital output channels (depending on the specific chassis layout and companion field termination assembly setup)

Output Voltage Rating: 24V DC discrete signal levels

Current Power Rating Limits: High-current capability rated for up to 2.0A maximum continuous current per individual channel

Minimum Operational Load: 10 mA minimum required load current per channel for proper loop diagnostic execution

Triconex 5411H Wiring and Connection Methods

Backplane Interconnect: Connects securely to the field wiring layer through high-density multi-pin connectors located on the rear of the Tricon chassis slot.

Field Termination Interfacing: Connects via a dedicated external Field Termination Assembly (FTA) terminal strip via shielded multi-conductor interface cables.

Wiring Connection Type: Employs heavy-duty compression screw-clamp termination blocks on the companion FTA, supporting wire sizes from 22 AWG down to 12 AWG (0.34 mm² to 2.5 mm²).

System Grounding: Requires a solid low-impedance bond between the module chassis, the primary rack frame, and the centralized plant safety ground bus to prevent electromagnetic noise and ground-loop disturbances.

Triconex 5411H Product Features

Triple Modular Redundant Voting: Utilizes an on-board hardware-based quadruple-switch voting circuit configuration to ensure that erroneous commands from any single microprocessor are automatically overridden.

Comprehensive Diagnostic Supervising: Features continuous background testing loops that actively monitor each output for open circuits, short circuits, stuck-on faults, and stuck-off conditions without disrupting the active load state.

Online Hot-Swapping Capability: Supports live module replacement (hot-swapping) alongside an adjacent standby slot module, ensuring zero downtime and maintaining uninterrupted safety coverage during maintenance routines.

Visual Fault Isolation: Front panel houses dedicated physical LEDs (Pass, Fault, Active, Load Status) to give technicians immediate visual diagnostic feedback on module and loop levels.

•
  Triconex 5411H
