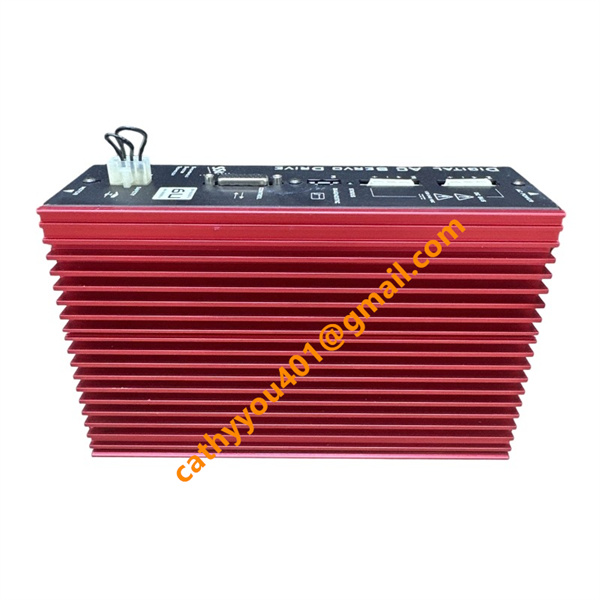

Description
-
BrandTEKNIC
-
ModelSST-6000-RCX-3-1-0
-
Product NameDigital AC Servo Drive / Servo Controller
-
Country of Origin8537109190
-
HS CodeUnited States
-
Dimensions227mm*141mm*80mm
-
Weight5.20 lbs (2.36 kg)
-
Operating Temperature0 to 40 degrees Celsius
-
Storage Temperature-20 to 70 degrees Celsius
-
Power Supply24VDC
-
Warranty12 month
-
Product StatusNew and original
TEKNIC SST-6000-RCX-3-1-0 Technical Specifications
Main Input Voltage: 120 VDC to 370 VDC (Nominal rating up to 300 VAC line input equivalent)
Control/Logic Input: 24 VDC logic power support for backup and continuous feedback tracking during main bus power-down
Output Current: 23 Amps Peak (up to 3 seconds), 9 Amps RMS continuous (vertical surface mount), 12 Amps RMS continuous (with external fan cooling)
PWM Ripple Frequency: 28 kHz, center-balanced vector type
Total Servo Phase Delay (TSPD): 35 microseconds deterministic loop update time
TEKNIC SST-6000-RCX-3-1-0 Wiring and Interfacing Method
The SST-6000-RCX-3-1-0 is engineered with an open, versatile control interface designed to mate cleanly with almost any standard servo controller or stepper indexer with minimal software reconfiguration.

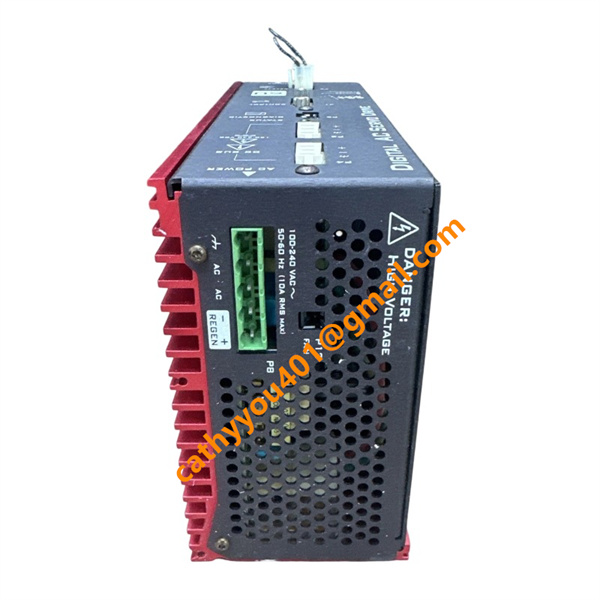

Power and Motor Connections: Heavy-duty terminal blocks provide robust connection points for the DC Bus input, AC line filtering inputs, and the three-phase motor output phases (U, V, W).

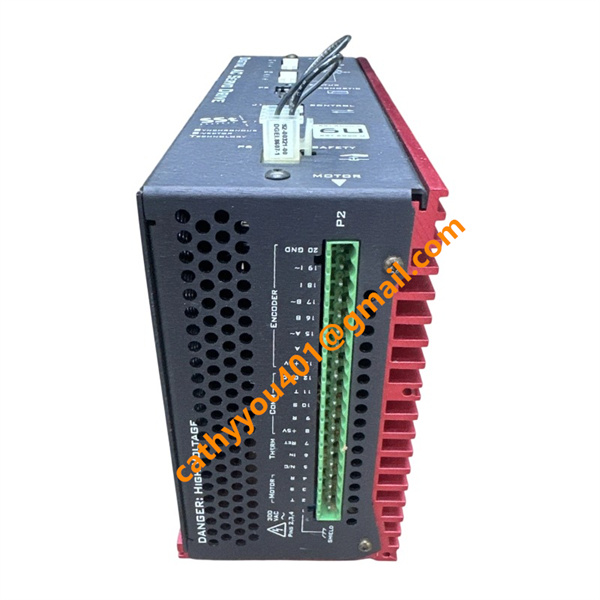

Feedback and Limits Port: High-density, robust connectors handle differential encoder feedback, Hall sensor inputs, and physical travel limits.
Dedicated Machine Safety Interfacing: Dedicated hardware channels are assigned for Direct Brake Output control and the ARM (Amplifier Ready/Enable) Input to simplify machine safety loop wiring.
Communication Loop Interfacing: Features an RS-232 serial diagnostic communication port using standard modular connectors. This layout supports multi-drive daisy-chaining (SSt Data Loop), allowing a single host PC or controller port to configure, monitor, and capture diagnostic oscilloscope data for up to 30 drives simultaneously.
TEKNIC SST-6000-RCX-3-1-0 Product Advantages
Synchronous S-Vector Technology: Features proprietary third-generation digital vector torque control that ensures near-zero torque response times at any operating speed.
Regressive AutoSpline (RAS) Technology: Delivers ultra-smooth motion profiles by limiting both jerk and jerk-derivative, minimizing mechanical shock, vibration, acoustic noise, and component wear.
Adaptive Tuning via Intelligent Motion Control (IMT): Utilizes an advanced control algorithm based on neural fuzzy logic, which eliminates inertia-matching constraints and effortlessly manages large or varying load inertias.
Anti-Hunt Control: Employs small-signal, sliding-mode automatic gain modulation to keep axes perfectly stable and stationary without sacrificing positioning accuracy.
Comprehensive Motor & Safety Protection: Features embedded true RMS current limiting to prevent motor burn-out without requiring external thermal sensors, alongside integrated hardstop and limit homing functions.
Simplified CE Compliance: Built-in QuietDesign EMI reduction systems eliminate the need for external shield clamps, ferrite slugs, or secondary shielded enclosures.
