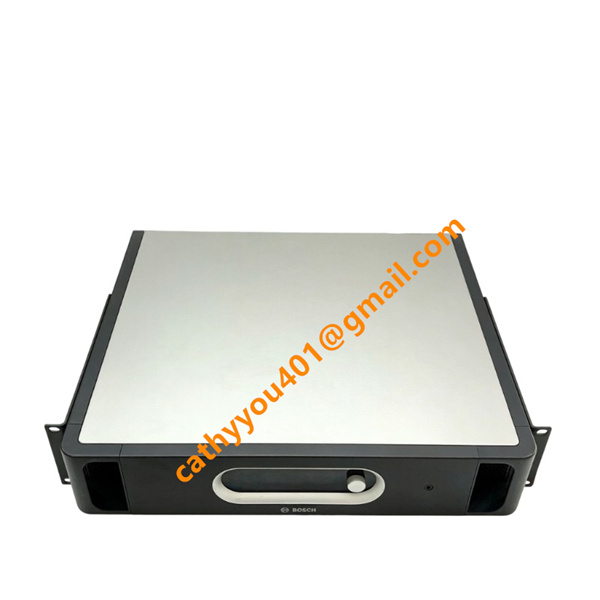

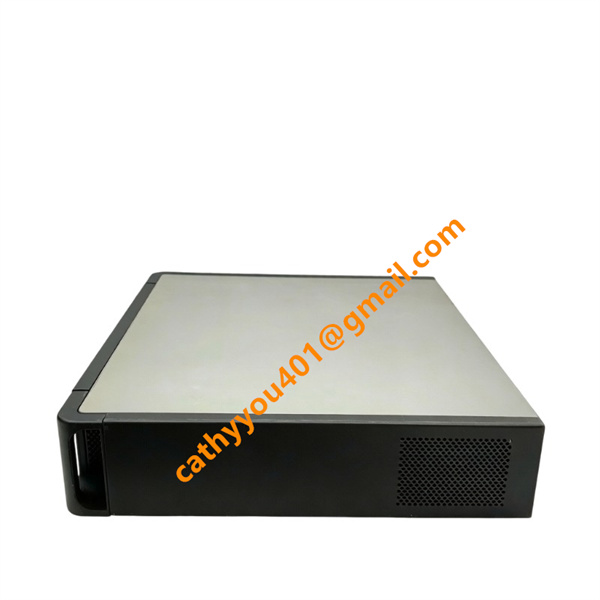

BOSCH PRS-NCO-3 Network Controller

• Brand
  BOSCH
• Model
  PRS-NCO-3
• Product Name
  Network Controller
• Country of Origin
  Portugal
• HS Code
  85176200
• Dimensions
  88 x 483 x 400 mm (3.5 x 19 x 15.7 inches)
• Weight
  7 kg (approximately 15.4 lbs)
• Operating Temperature
  -5°C to +55°C (+23°F to +131°F)
• Storage Temperature
  -20°C to +70°C (-4°F to +158°F)
• Relative Humidity
  15% to 90%
• Warranty
  12 month
• Product Status
  New and original

BOSCH PRS-NCO-3 Network Controller Product Overview

Power Input & Electrical Specifications

Mains Voltage Input: 115 to 230 VAC, 50/60 Hz (Automatic voltage selection)

Battery Input Voltage: 48 VDC (Accepts a range of 24 to 56 VDC for emergency backup power)

Power Consumption: 21 W (without external network loads), up to 160 W max (when providing full power to the network ports)

Interfaces & Signal Outputs

Network Outputs: 2 x Optical network connections (redundant loop capability)

Control Inputs: 8 x Programmable control inputs (configured for monitoring/triggering actions)

Control Outputs: 5 x Programmable control outputs (relay contacts for external status signaling)

Audio Inputs: 2 x Analog audio inputs (line-level or mic-level with selectable sensitivity)

Audio Outputs: 2 x Analog audio outputs (line-level for external routing)

BOSCH PRS-NCO-3 Wiring & Connection Methodology

The BOSCH PRS-NCO-3 utilizes specialized interfaces for various system integrations, ensuring secure and stable connections:

Network Connections: Utilizes proprietary Bosch Praesideo plastic optical fiber (POF) connectors. These connectors are arranged in a loop configuration to provide complete system redundancy.

Power Connections: Features a standard 3-pin IEC socket for AC mains power input, alongside dedicated screw terminal blocks for secure 48 VDC backup battery input.

Control Inputs and Outputs: Uses detachable screw-terminal blocks (Euro-style connectors), making it easy to wire logic inputs (e.g., from fire alarm panels) and relay outputs to external indicators.

Audio Line I/O: Configured with standard XLR and cinch (RCA) connectors for line/microphone inputs and line outputs, allowing easy integration with external media players, mixers, or recording devices.

BOSCH PRS-NCO-3 Key Product Advantages

Advanced Network Routing: Efficiently handles up to 28 simultaneous high-quality audio channels across a secure digital network.

Fail-Safe Reliability: Features dual optical network interfaces that support redundant loop topology, ensuring continuous operation even if a network fiber cable is broken.

Dual Power Redundancy: Automatically switches from AC mains to 48 VDC backup battery power in the event of a power failure, ensuring zero downtime for emergency communication.

Built-in Message Storage: Features internal flash memory for storing critical emergency messages, chime signals, and scheduled announcements.

Comprehensive Supervision: Monitors the entire system infrastructure including connected devices, network integrity, and internal functionalities, reporting faults in real-time.

•
