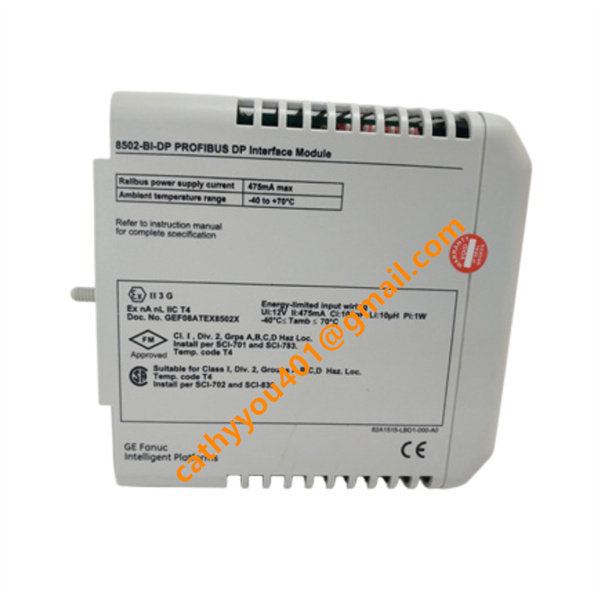

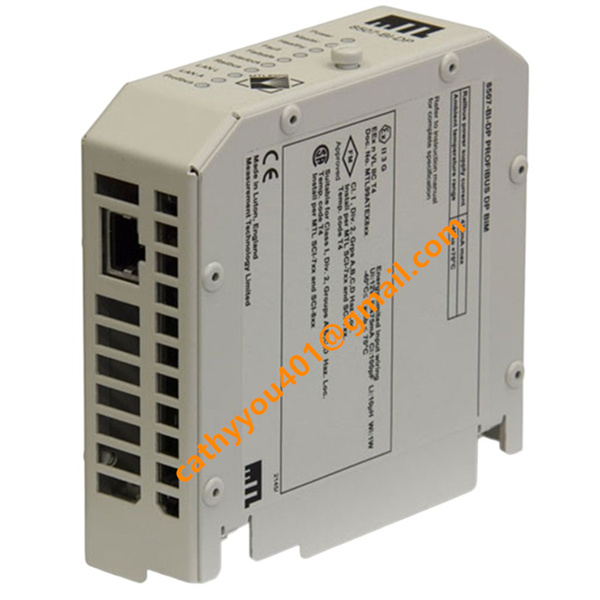

MTL 8502-BI-DP Bus Interface Module

• Brand
  MTL
• Model
  8502-BI-DP
• Product Name
  Bus Interface Module (PROFIBUS-DP)
• Country of Origin
  United Kingdom
• HS Code
  85389091
• Dimensions
  42mm (Width)x140mm(Height)x140mm(Depth)
• Weight
  0.35 kg (0.77 lbs)
• Operating Temperature
  -40°C to +70°C (-40°F to +158°F)
• Storage Temperature
  -40°C to +85°C (-40°F to +185°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

MTL 8502-BI-DP Electrical & Communication Parameters

Power Input (Supply Voltage): 24V DC nominal (typically accepts a range of 19.2V DC to 30V DC)

Signal Input/Output (Communication): PROFIBUS-DP network protocol

Transmission Rate: Up to 1.5 Mbps (automatically detected based on network configuration)

Address Range: 1 to 125 (configured via rotary switches or software)

MTL 8502-BI-DP Key Product Advantages

Intrinsic Safety Integration: Provides galvanic isolation and safety protection suitable for mounting in Zone 2 / Class I, Division 2 hazardous areas, while interfacing with Zone 1/0 field devices.

High Reliability: Built with industrial-grade components to withstand extreme temperatures, vibrations, and corrosive environments typical of process industries.

Plug-and-Play Maintenance: The hot-swappable design allows the module to be replaced on the backplane under power without disrupting the rest of the network or requiring rewiring.

Seamless Diagnostics: Equipped with comprehensive LED status indicators on the front panel for rapid troubleshooting of power, status, and communication errors.

Efficient Space Utilization: Compact footprint optimizes cabinet space when mounted on multi-slot carriers alongside other MTL 8000 series I/O modules.

MTL 8502-BI-DP Wiring and Connection Method

Mounting: Designed to plug directly into a dedicated MTL module carrier/backplane.

Fieldbus Connection: Handled through the backplane connectors, typically utilizing standard RS485 differential signaling via shielded twisted-pair cables.

Power/Ground Connection: Integrated via the carrier rail/backplane, minimizing manual wiring and reducing installation errors.

•
