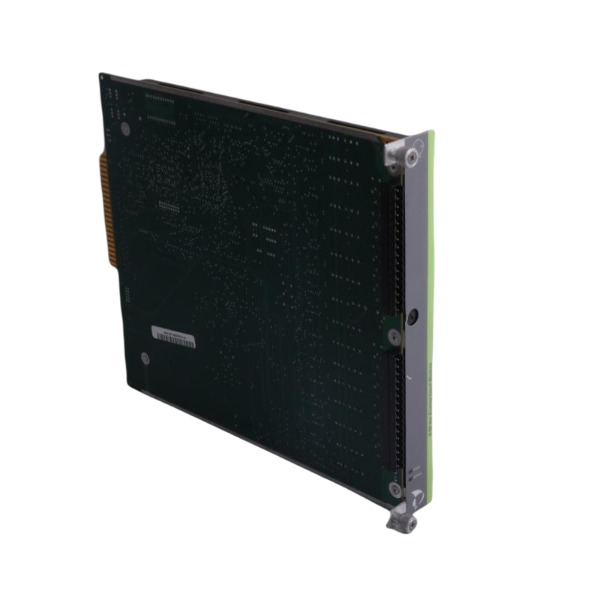

IOP365 METSO Isolated Analog Input and Output Module

• Brand
  METSO
• Model
  IOP365
• Product Name
  Isolated Analog Input and Output Module
• Place of Origin
  Finland
• Customs HS Code
  853890
• Power Supply
  21.6 ~ 26.4 V DC
• Dimensions
  220 mm × 120 mm × 38 mm
• Weight
  0.4 kg
• Operating Temperature
  -20℃ ~ +60℃
• Storage Temperature
  -40℃ ~ +85℃
• Warranty
  12 month
• Product Status
  new

Technical Specifications of Metso IOP365

The IOP365 is a high-density digital I/O module from Metso equipped with hot-swap capability, designed for discrete signal acquisition and control output.

Power specifications

Backplane supply: 24V DC

Typical power consumption: 8~12W

Power is supplied through the DCS rack backplane

Channel configuration

Configurable digital inputs and digital outputs; supports multiple DI/DO combinations. Galvanic isolation exists between the field side and backplane side.

Electrical characteristics

Typical field signal voltage: 24V DC

Input impedance: >10MΩ

Isolation voltage: 1500V AC between the field side and backplane

Compatible with sink/source type digital signals

Communication interface

Metso S800 I/O backplane bus; enables high-speed digital bus communication with the controller and supports module hot swap.

Accuracy & sampling

Sampling rate: 1000Hz

Delivers fast response for discrete on/off signals and adopts hardware-level signal filtering for noise suppression.

Mechanical & physical

Mounting: standard Metso DCS rack slot mounting

Protection class: IP20

Approximate weight: 0.38kg

Function features

Supports hot swap; integrates LED status indicators for Run, Fault and individual channel status. It has built-in channel diagnostics to detect open and short circuits.

Application

It is applied for field digital signal collection and relay control output within mining, pulp & paper, energy and chemical industries.

Module fails to power up and cannot be recognized

Phenomenon: The Power LED remains off and the DCS controller cannot detect the module.

Root causes: Abnormal backplane power supply; loose backplane connector; blown internal fuse; incompatible firmware; poor mechanical contact within the slot.

Total channel invalid / no measured values on all channels

Phenomenon: All process variables show bad quality with no valid readings.

Root causes: Interruption of backplane expansion bus communication; module initialization failure; incorrect hardware configuration; fault in the common field circuit.

Individual channel abnormal reading (drift, fixed value, no response)

Phenomenon: Only some channels operate abnormally while the rest work normally.

Root causes: Open or shorted field cables; reversed signal polarity; field sensor failure; incorrect channel scaling; damage to the internal channel circuit.

Intermittent signal loss on channels

Phenomenon: Channel readings flicker randomly, and signals appear and disappear irregularly.

Root causes: Loose terminals caused by vibration; ground loop interference; signal attenuation over long cables; marginal supply voltage; EMI noise from adjacent high-power cables.

Communication failure between IOP365 and controller

Phenomenon: The module occasionally goes offline, and communication timeout alarms appear in the DCS.

Root causes: Poor contact of backplane pins; expansion bus overload; mismatched module address; firmware mismatch; large ground potential difference on the bus.

False alarms

Phenomenon: Continuous alarms are activated without actual abnormal field conditions.

Root causes: Improper alarm threshold settings; sensor drift; electromagnetic interference; noise coupled into analog signal wiring.

Hot swap failure during module replacement

Phenomenon: The newly swapped module cannot be identified or activated.

Root causes: Hot swap is unsupported for this slot; poor backplane contact; inconsistent firmware versions between the old and new modules.

Module over-temperature fault

Phenomenon: The Fault LED illuminates and an over-temperature diagnostic alarm is triggered.

Root causes: Poor cabinet ventilation; excessive ambient temperature; dust accumulated on the module surface; densely arranged heat-generating modules inside the rack.

Measurement deviation and inaccurate data

Phenomenon: Readings are available but show obvious deviation from the actual physical quantity on site.

Root causes: Wrong signal range configuration; incorrect scaling parameters; uncalibrated field sensor; aging of the internal channel circuit.

Random module reset or crash

Phenomenon: The module spontaneously resets during operation, and all channels momentarily lose signals.

Root causes: Power ripple and voltage drop; severe field EMC interference; firmware bugs; hardware aging of the module.

FAQ of Metso IOP365

Q: What is the core feature of Metso IOP365?

A: The IOP365 provides high-speed data communication between the controller and remote I/O units, supports channel monitoring, fault detection and alarm reporting for connected I/O modules.

Q: Which Metso control system is IOP365 designed for?

A: It belongs to Metso’s legacy DCS system family, matched with corresponding controller, backplane and I/O modules in the same system series.

Q: Does Metso IOP365 support hot swap?

A: Hot swap capability depends on the rack configuration. Please verify with official documentation before replacement to avoid system interruption.

Q: What type of data can Metso IOP365 process?

A: It handles both digital and analog I/O data, transfers field sensor, valve and actuator signals to the main controller for closed-loop process control.
