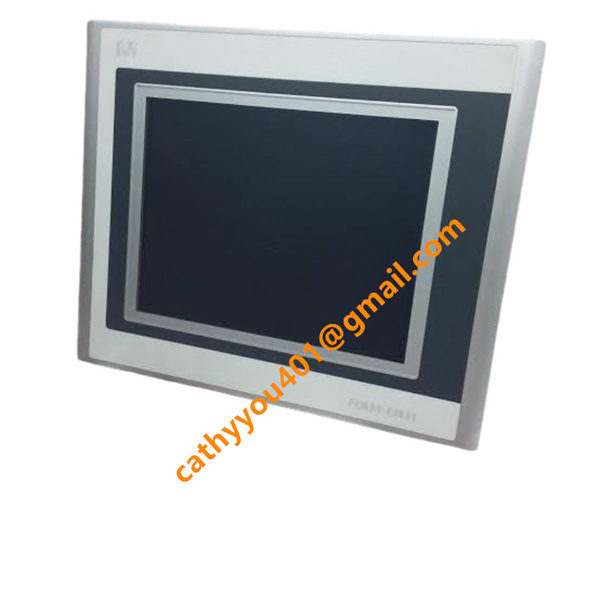

4PP420.1043-75 Human-Machine Interface

• Brand
  B&R
• Model
  4PP420.1043-75
• Product Name
  Human-Machine Interface (HMI) / Control Terminal
• Country of Origin
  Austria
• HS Code
  85371092

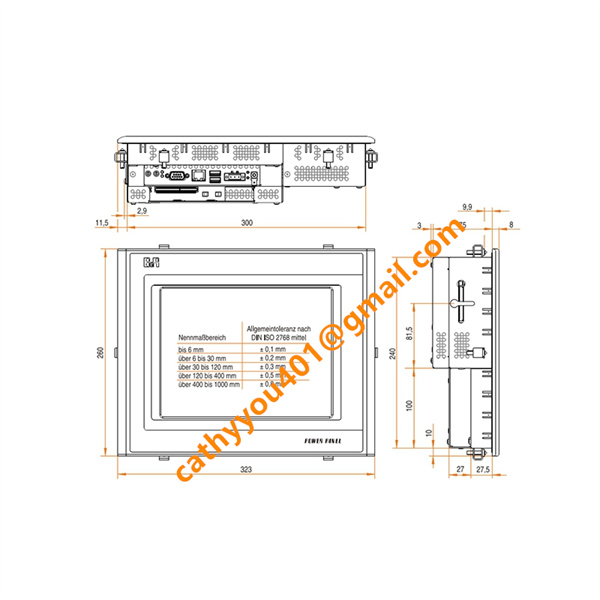

• Dimensions
  323 mm (W) x 260 mm (H) x 86 mm (D) 323 mm
• Weight
  3.9 kg
• Model/Series
  Power Panel 400 (PP420)
• Display Panel
  10.4-inch (264 mm) TFT color matrix display
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

B&R 4PP420.1043-75 Technical Specifications & Architecture

Central Processing Unit: AMD Geode LX800 processor clocking a deterministic 500 MHz frequency (32-bit x86 architecture with passive heatsink cooling).

Memory Matrix: Configured with 128 MB DDR SDRAM main memory and 512 kB of battery-backed SRAM for remanent variable retention during unexpected power failure states.

Firmware Storage: 2 MB on-board Flash dedicated entirely to firmware/bootloader runtime.

Backup Battery: Removable Renata 950 mAh lithium battery accessible from the exterior. Backed by an internal 10-minute capacitor buffer to prevent memory clearance during live battery hot-swaps.

Software Capability: Engineered for deployment via B&R Automation Studio. It functions as an integrated runtime target capable of driving complete PLC applications alongside visualization logic under Windows CE or Windows XP Embedded environments.

B&R 4PP420.1043-75 Display & Touch Interface

Display Panel: 10.4-inch (264 mm) TFT color matrix display.

Resolution: VGA standard (640 x 480 pixels) supporting up to 262,144 colors.

Luminance & Contrast: High-brightness screen rated at 450 cd/m² with an outstanding 900:1 contrast ratio.

Touch Technology: Analog resistive (AMT) matrix equipped with a serial 12-bit controller.Front displays come pre-calibrated straight from the factory.

Ingress Protection: IP65 / NEMA 250 Type 4X protection on the front face (dust tight and waterproof against direct hose sprays).Rear chassis rates at IP20.

B&R 4PP420.1043-75 Built-in Connectivity Ports

Network Controller: Intel 82551ER fast Ethernet controller supporting 10/100 Mbit/s Base-T lines.

Serial Interface: 1x COM1 interface (RS232 protocol, modem-capable via a standard 9-pin male D-sub port).

Peripheral Bus: 2x USB Type-A ports conforming to USB 1.1 / USB 2.0 architectures (supports high-speed 480 Mbit/s transfers up to 500 mA per port).

Storage Slot: 1x Type I CompactFlash slot with an integrated mechanical safety latch.

Modular Upgrades: Features 1x specialized aPCI expansion slot on the back panel to accommodate fieldbus option boards (such as POWERLINK master cards, CAN bus interfaces, or X2X Link masters).

•
