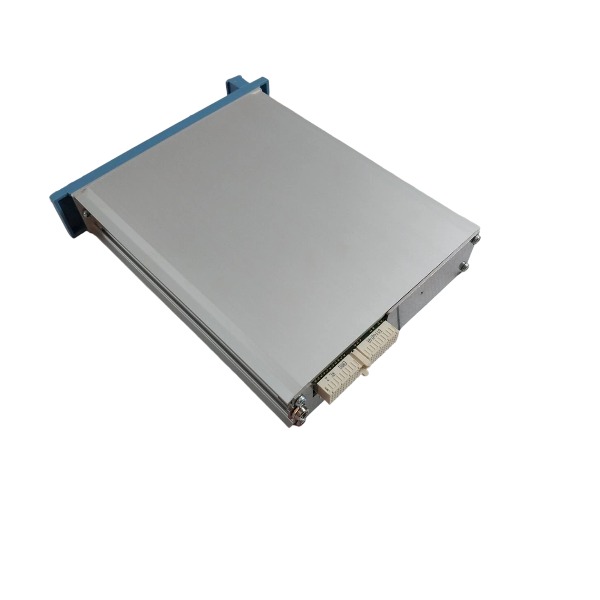

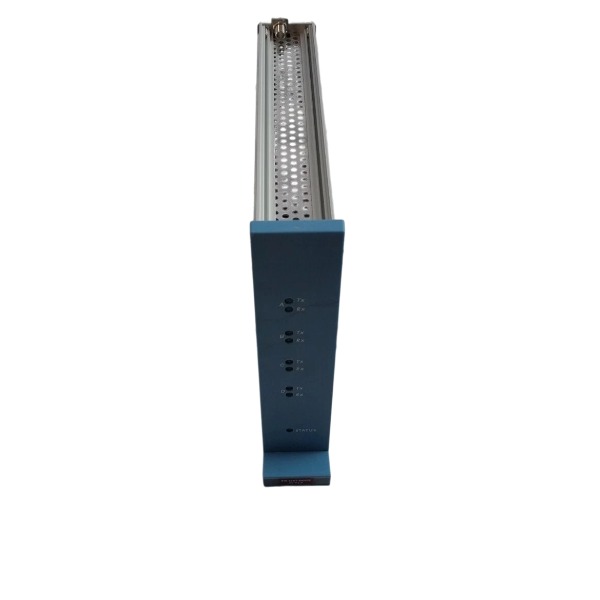

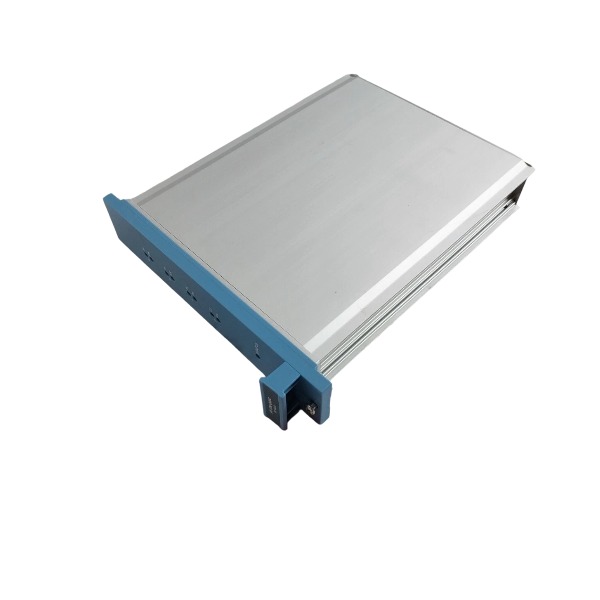

FX-USI-0002 HONEYWELL Universal Safety Interface Module

• Brand
  HONEYWELL
• Model
  FX-USI-0002
• Product Name
  Universal Safety Interface Module
• Place of Origin
  Germany
• Customs HS Code
  85423190
• Power Supply
  1.2A
• Dimensions
  176 mm × 35.2 mm × 212 mm
• Weight
  0.7kg
• Operating Temperature
  ‑5℃ to +70℃
• Storage Temperature
  ‑40℃ to +85℃
• Warranty
  12 month
• Product Status
  original

 Practical Field Troubleshooting Cases for HONEYWELL FX-USI-0002 Universal Safety Interface Module

The FX-USI-0002 is a core safety communication module for Honeywell Safety Manager SIS systems. It connects the system processor, remote I/O racks and Modbus-RTU field devices. Below are simplified and sorted practical on-site fault cases and solutions.

 Case 1: Hot-swap replacement fails, system prompts Incompatible Hardware

 Fault Phenomenon

The new FX-USI-0002 powers on normally but cannot be identified by the system, failing to join the redundant safety bus.

 Root Cause

The Safety Manager system version is lower than R140.1. FX-USI-0002 does not support old firmware versions.

 Solution

1. Reinstall the original old USI module to restore system redundancy temporarily.

2. Upgrade the system software to R140.1 or newer in a maintenance window.

3. Reinstall FX-USI-0002 for automatic firmware matching and normal synchronization.

 Experience

FX-USI-0002 is plug-and-play compatible in hardware, but requires a matched high system software version.

 Case 2: Redundant module Configuration Mismatch & Modbus intermittent timeout

 Fault Phenomenon

The main FX-USI-0002 runs normally, while the standby module reports configuration mismatch, causing occasional Modbus data loss.

 Root Cause

Firmware versions are inconsistent between primary and standby modules.

 Solution

1. Check firmware versions of both modules via the engineering tool.

2. Uniformly upgrade the standby module firmware.

3. Soft reset the module and wait for full configuration synchronization.

 Experience

Redundant modules must keep consistent firmware versions to avoid communication jitter.

 Case 3: MMEM safety bus flapping, remote I/O intermittent offline

 Fault Phenomenon

Remote I/O modules drop out occasionally; module ERR LED flashes frequently in humid or thunderstorm weather.

 Root Cause

1. Safety bus cable lacks standard shielding grounding and suffers strong electromagnetic interference.

2. Module backplane connector contacts are oxidized and poorly contacted.

 Solution

1. Separate safety bus cables from high-power cables and apply standard single-end shielding grounding.

2. Remove the module, clean the gold-plated contacts, and reinstall tightly.

 Case 4: Module running normally but RS-485 Modbus communication fully interrupted

 Fault Phenomenon

Module RUN LED is normal with no hardware alarms, but all Modbus device data stops updating.

 Root Cause

Lightning surge damages the module’s internal serial transceiver circuit.

 Solution

1. Exclude field cable and slave device faults.

2. Switch Modbus communication to the spare serial port of the module for quick recovery.

3. Replace the faulty module and add surge protection barriers for RS-485 bus.

 Case 5: Module stuck in boot state after system power restart

 Fault Phenomenon

The module keeps cycling startup and fails to enter running mode after chassis power recovery.

 Root Cause

Instant backplane voltage drop causes incomplete firmware loading.

 Solution

1. Remove the faulty module, wait 2–3 minutes, then reinstall it.

2. Reflash firmware if the fault persists, and replace the module for repeated failures.

 General FX-USI-0002 On-Site Troubleshooting Checklist

Confirm the system version is R140.1 or above.

Judge fault types via RUN / ERR / LINK LED status.

Verify stable 5 VDC backplane power and firm module insertion.

Distinguish faults among module hardware, backplane, safety bus cable and external serial wiring.

Download fault logs before replacement for root cause analysis.

Install surge protection for outdoor/field RS-485 lines.

 Features for HONEYWELL FX-USI-0002 Universal Safety Interface Module

 Electrical Characteristics

Operating Voltage: 5 VDC ±5% (backplane bus powered)

Maximum Current Draw: 1.2 A

Typical Power Consumption: 4.5 W

Galvanic Isolation: ≥2.5 kVdc isolation between 5VDC power domain and Ethernet circuits; ≥1.5 kVdc isolation between signal circuits and module chassis

 Communication Interfaces

Dual-channel dual-speed Fast Ethernet ports, supporting Honeywell proprietary MMEM and EUCN safety bus protocols

Two configurable serial ports (RS-232 / RS-485) for Modbus-RTU communication with third-party field devices

High-speed data exchange with distributed remote I/O racks

Supports in-situ firmware upgrade without module removal or system shutdown

 Safety-Related Features

Safety Certification: Compliant with IEC 61508 / IEC 61511, certified for **SIL 3**, suitable for SIL1–SIL3 safety loop applications

Full diagnostic coverage: Comprehensive power-on self-test for CPU registers, RAM, shared memory, firmware integrity and peripheral hardware

Continuous runtime self-diagnosis, reporting internal hardware anomalies to the Safety Manager logic solver in real time

Compatible with 1oo2D dual-redundant and QMR quad-redundant system architectures

Integrated hardware watchdog and real-time communication link fault detection mechanism

 Compatibility & Technical Advantages

Supports online hot-swap replacement, allowing maintenance and module replacement without system shutdown

Built-in ECC error-correction SRAM to eliminate soft memory data errors and improve system stability

Widely applicable to SIS safety systems in petrochemical, oil & gas, power generation and other high-risk industrial scenarios
