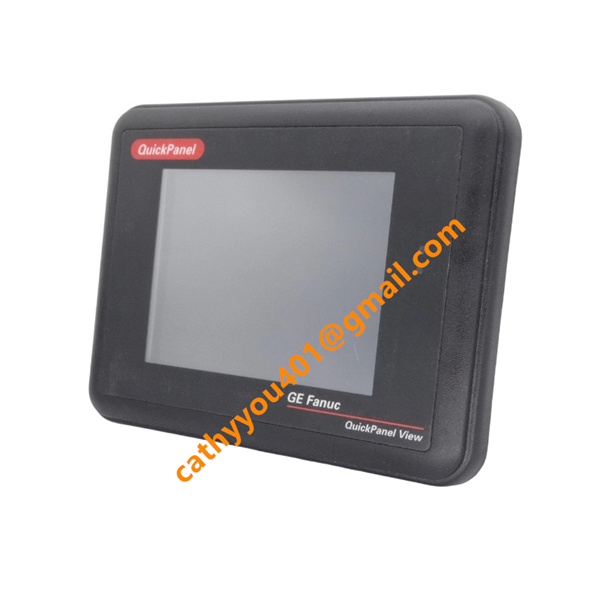

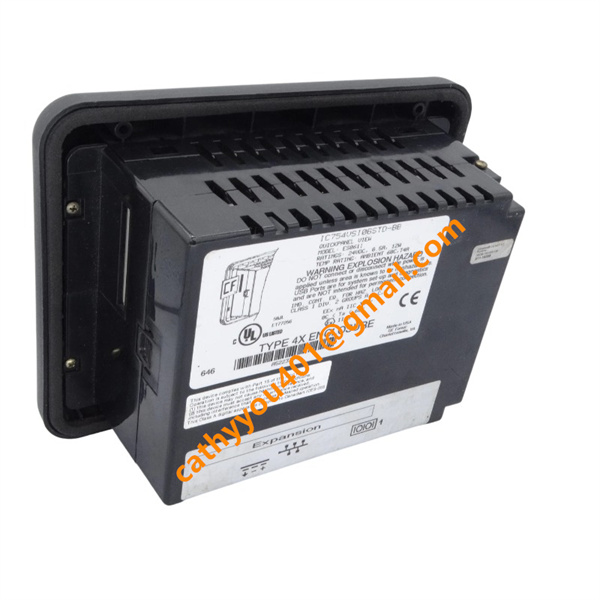

GE Fanuc IC754VSL06MTD Touchscreen HMI

• Brand
  GE
• Model
  IC754VSL06MTD
• Product Name
  QuickPanel View 6-Inch Monochrome/Color Touchscreen HMI
• Country of Origin
  United States
• HS Code
  85371091
• Dimensions
  168mm (Width)×135mm (Height)×69 mm(Depth)
• Weight
  1.1 kg
• Operating Temperature
  0°C to 50°C
• Storage Temperature
  -20°C to 60°C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

GE Fanuc IC754VSL06MTD Technical Specifications

Display Size and Type: 6.0-inch STN Monochrome or Color Passive Matrix Touchscreen Display

Operator Input: Analog resistive touchscreen matrix allowing precise finger or stylus inputs

Relative Humidity: 10% to 85% RH, non-condensing atmosphere

Cooling Method: Natural convection / fanless design to minimize dust ingestion

Enclosure Rating: NEMA 4/4X/12 and IP65 compliant front panel when properly mounted in a compatible enclosure

Product Features

Windows CE Operating System: Powered by a stable Windows CE embedded runtime environment, offering familiar system file operations and flexible application deployment.

Integrated Visualization: Fully compatible with Proficy Machine Edition (Cimplicity ME) software for quick HMI screen drafting and tag database configuration.

High-Speed Processing: Equipped with a dedicated RISC processor architecture to ensure rapid screen switching times and fast communication polling.

Rugged Front Bezel: Features a scratch-resistant, heavy-duty overlay capable of weathering chemical splatters and physical wear in demanding industrial zones.

Wiring and Connection Methods

Power Supply Input Connection: Uses a removable 3-pin pluggable screw-terminal block located on the rear chassis. Wiring requires standard 14–22 AWG copper conductors for Positive (+24V), Negative (0V), and dedicated Chassis Ground (FG) lines.

Communication Wiring: Plugs directly into the standard 9-pin D-sub connector for serial links or utilizes shielded twisted-pair (STP) Cat5e/Cat6 cabling with RJ-45 plugs for industrial Ethernet routing.

Grounding Requirements: A direct, low-impedance ground connection to the functional ground terminal is strictly required to shield the internal electronics from electromagnetic interference (EMI) and electrical noise.

GE Fanuc IC754VSL06MTD Power and Input Specifications

Rated Input Voltage: 24V DC nominal

Input Voltage Range Tolerance: 18V DC to 30V DC operation

Power Consumption: Approximately 24 Watts maximum power consumption under full load

Output and Communication Interfaces

Serial Ports: One 9-pin D-sub male connector supporting RS-232, RS-422, and RS-485 serial communication protocols

Ethernet Interface: One RJ-45 10/100 Base-T fast Ethernet port for high-speed network communication and PLC linking

USB Ports: Type A and Type B USB ports for peripheral connectivity (e.g., keyboard, mouse) and convenient project downloads

Expansion Storage: Dedicated CompactFlash (CF) card slot for historical data logging, recipe storage, and application backup
