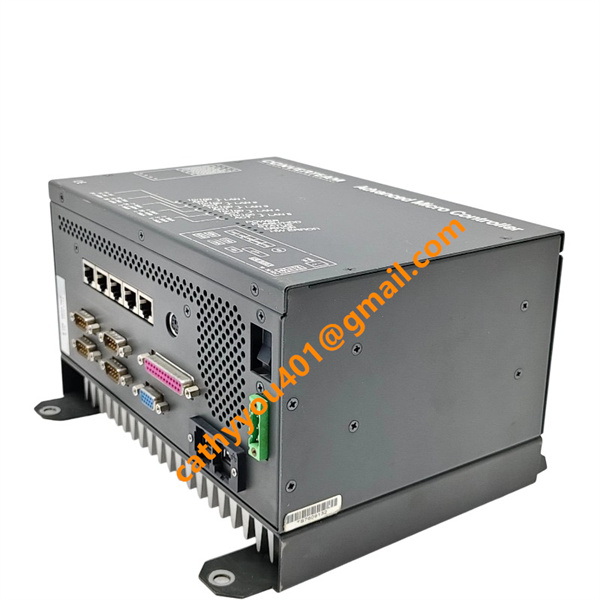

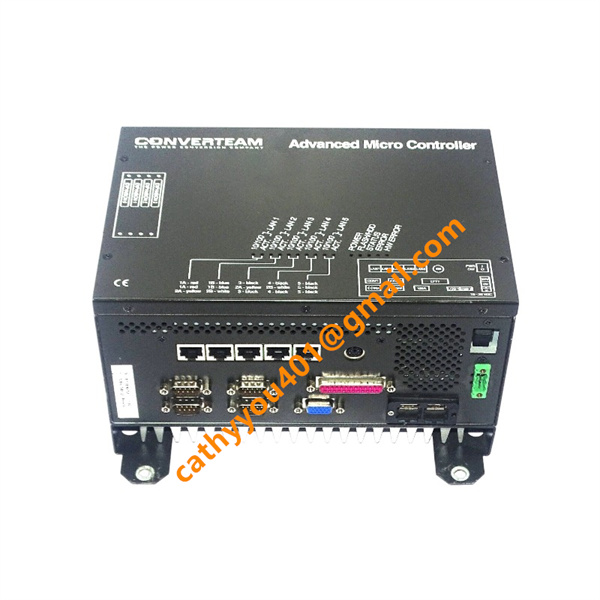

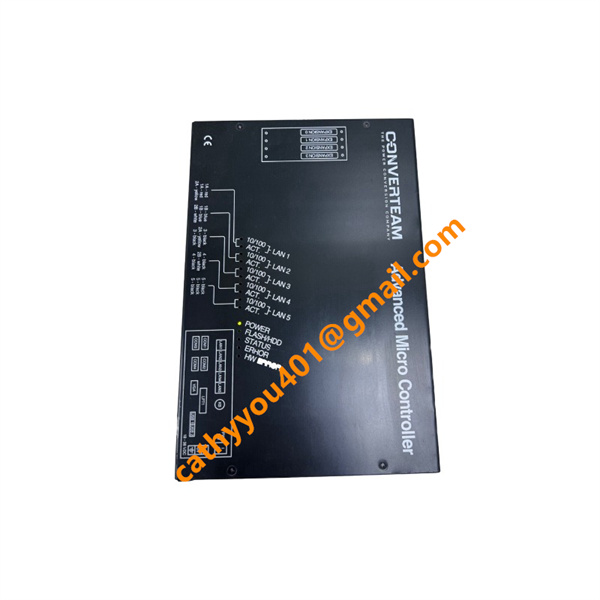

GE P111-6052 Advanced Micro Controller

• Brand
  GE
• Model
  P111-6052
• Product Name
  Advanced Micro Controller
• Country of Origin
  United States
• HS Code
  8537109190
• Dimensions
  263 mm (Width) × 58 mm (Height) × 28 mm (Depth)
• Weight
  4.3 kg
• Operating Temperature
  -10°Cto +70°C
• Storage Temperature
  -35°Cto +90°C
• Power Supply
  24V DC
• Warranty
  12 month
• Product Status
  New and original

GE P111-6052 Technical Specifications

Power and Input Specifications

Rated Input Voltage: 24V DC

Input Voltage Range Tolerance: 18 VDC to 36 VDC (Allowing ±20% operational fluctuation)

Power Consumption: Approximately 0.9A nominal current draw

Output and Communication Interfaces

Network / LAN Interfaces: 5 integrated Ethernet communication ports supporting reliable network topologies

Serial Interfaces: 4 serial communication links (RS232/Modbus protocol supported), with 3 channels dedicated and open for end-user applications

Display Output: 1 integrated VGA connection port for localized monitoring and human-machine interface (HMI) configurations

USB Ports: 2 USB connection ports featuring a high-reliability Yamaichi latch system to prevent accidental cable disconnection

Wiring and Connection Methods

Interface Wiring: Employs a pluggable high-density terminal connection method for serial and power cables, allowing quick field maintenance and reduction of up to 80% in wiring complexities.

Network Wiring: Uses standard industrial RJ45 connectors for Ethernet ports and heavy-duty latching mechanical connectors (Yamaichi system) for secure USB and communication plug stability against harsh marine vibrations.

GE P111-6052 Product Features

High Performance Core: Powered by advanced microcontroller/processor architecture paired with high-capacity DRAM and an extractable Compact Flash HDD for local system storage.

Modular and Expandable Structure: Features 4 PMC/PC104+ expansion slots. Supports hardware expansions such as 16-channel serial (Serial 16+), FIP, Profibus Master, and Profibus Slave fieldbus modules.

Intelligent Safeguards: Outfitted with an integrated system hardware Watchdog and automated ambient temperature monitoring functions.

Visual Status Indicators: Front panel features dedicated LED status indicators providing real-time alerts for Power, Healthy, and Running states.

Identity Protection: Includes an Identity Dongle port explicitly utilized for defining and safeguarding the unique controller ID assignment.

Software Platform Support: Broad compatibility with high-end marine and automation programming suites, notably including the Marine Controller (Isagraf) and HPCi systems.
