GE 151X1225DF01PC03RA Drive Regulation Board

• Brand
  General Electric (GE)
• Model
  151X1225DF01PC03RA
• Product Name
  Pitch 1.5 MW Power Converter Assembly / Drive Regulation Board
• Country of Origin
  China
• HS Code
  8504409190
• Dimensions
  420mmx310mmx240mm
• Weight
  16.60 kg (36.6 lbs)
• Operating Temperature
  -30°C to +60°C (-22°F to 140°F)
• Storage Temperature
  -40°C to +85°C (-40°F to 185°F)
• Part Number
  104W4708P003
• Warranty
  12 month
• Product Status
  New and original

GE 151X1225DF01PC03RA Technical Specifications

Continuous Output Rating: 4.2 kW

Maximum Peak Output Rating: 12.0 kW @ 80 VDC

Input Specifications: Receives unregulated DC voltage or conditioned 3-phase AC input (fed from system isolation transformers and line reactors) depending on its structural role in the converter cabinet configuration.

GE 151X1225DF01PC03RA Product Advantages

High Peak Power Output: Capable of delivering up to 12 kW of localized power at 80 VDC, providing the immediate bursts of torque required to adjust wind turbine pitch blades dynamically under heavy wind loads.

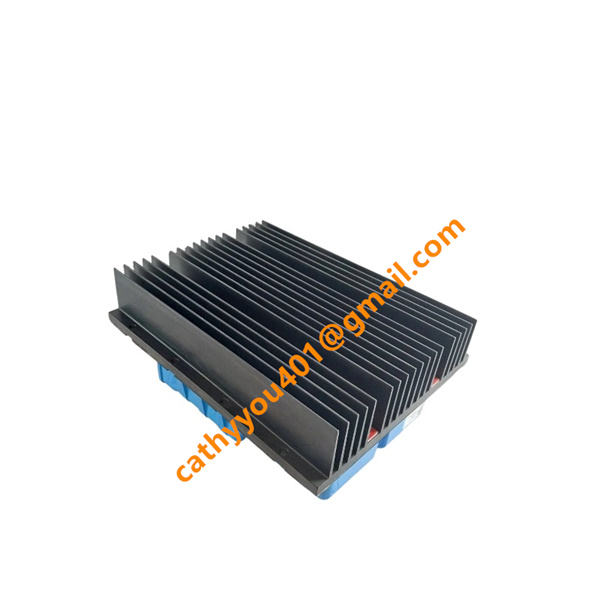

Excellent Thermal Dissipation: Designed around a massive, vented aluminum backplane and integrated heatsink that dissipates heat efficiently, eliminating thermal throttling without needing complex active liquid-cooling inside the hub.

Industrial Nacelle Durability: Built specifically to survive extreme environments, tolerating massive structural vibration, wide seasonal temperature shifts, and moisture condensation inside isolated turbine structures.

Precise Control Integration: Features onboard specialized software (Revision WP1R) designed to handshake flawlessly with broader GE Mark VI and VersaMax I/O turbine management architectures, keeping tracking latency near zero.

GE 151X1225DF01PC03RA Wiring and Connection Method

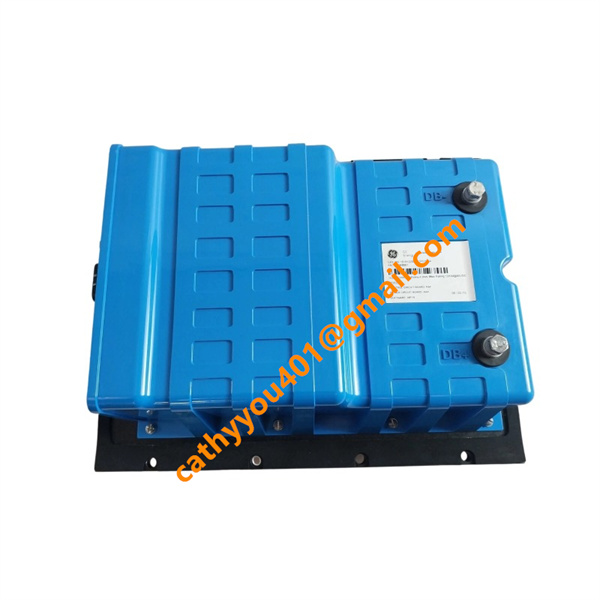

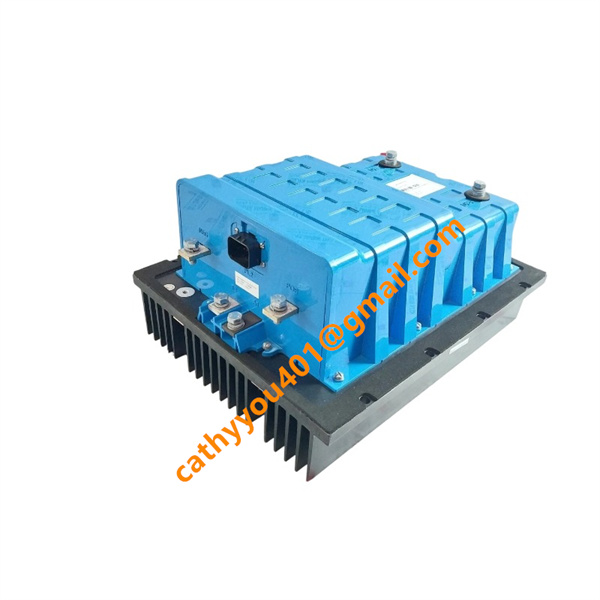

Power Connections: Utilizes heavy-duty, high-current internal terminal studs and dedicated screw ports labeled for positive and negative poles (POS / NEG), as well as dedicated dynamic braking line poles (DB- / DB+).

Control and Signal Wiring: Equipped with multi-pin pluggable control wire receptacles connecting directly to the upper control circuit board (Revision RAF) and the underlying main power circuit board (Revision AAA) to handle external feedback control loops and system diagnostics.

•
