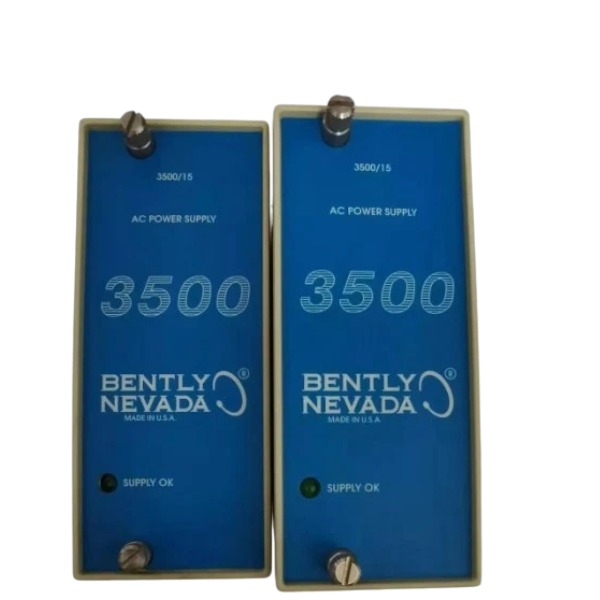

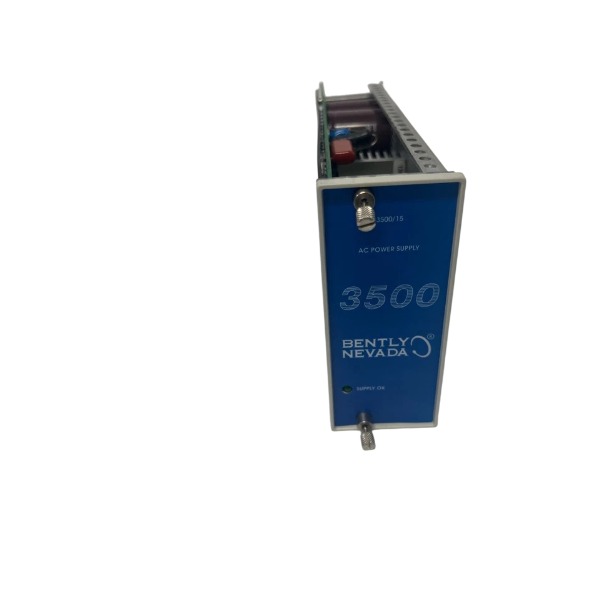

3500/15-05-05-00 Bently Nevada 3500 Series Universal AC Power Supply Module

• Brand
  Bently Nevada
• Model
  3500/15-05-05-00
• Product Name
  3500 Series Universal AC Power Supply Module
• Place of Origin
  United States
• Customs HS Code
  85389000
• Power Supply
  85 V AC to 264 V AC, 47 Hz to 63 Hz
• Dimensions
  120.7 mm × 50.8 mm × 251.5 mm
• Weight
  1.39 kg
• Operating Temperature
  -30°C to +65°C
• Storage Temperature
  -40°C to +85°C
• Warranty
  1 year
• Product Status
  brand new

Operation Steps for Bently Nevada 3500/15-05-05-00 Power Supply Module

Ensure the 3500 rack achieves reliable grounding prior to wiring and module installation.

Install the 3500/15 module into the assigned left half-height rack slot; the lower slot serves as the primary unit and the upper slot for redundant backup.

Align the DIP switch settings of the new module with the original unit to maintain uniform grounding setup.

Wire the Power Input Module (PIM) strictly in accordance with site electrical schematics and validate the input voltage range.

Fasten all terminal connections and inspect insulation to rule out potential short-circuit hazards.

In redundant setups, keep identical ground switch configurations on both power modules to prevent ground loops.

Energize the power supply and monitor the front-panel Power OK LED; a solid green light signifies normal operation.

Log into System 1 software to remotely monitor rack bus voltage and the health condition of the power supply.

Conduct hot-swap replacement only when the redundant standby power supply is active to prevent rack power loss.

Release the module latches symmetrically and extract the module straight outward during replacement; avoid prying to protect backplane pins.

Push the replacement module fully home until the latches engage, then verify LED status and communication restoration.

Run a redundancy switchover test to confirm uninterrupted power transfer between primary and backup modules.

Document the module serial number, firmware revision and commissioning information for equipment archives.

Disconnect the input power and allow capacitors to discharge before carrying out non-hot-swap maintenance.

Examine LED alarm signals, input voltage and internal fuses if the Power OK LED remains unlit or flashes irregularly.

Observe the front-panel “Power OK” LED indicator: a steady green light represents normal operation.

An unlit, flashing or red LED points to module failure or invalid power input.

Confirm the input voltage falls within the rated range, and check that wiring terminals are securely fastened.

Examine the matched PIM (Power Input Module) for active alarms or visible burn marks.

Open System 1 or the 3500 rack configuration software to retrieve power health status and backplane bus voltage data.

Validate that the rack backplane bus voltage stays within the 3500 system’s acceptable operating limits.

For dual redundant 3500/15 arrangements, verify both modules operate normally with no redundancy mismatch alerts.

Watch out for ground loop alarms caused by mismatched DIP switch grounding settings on the two power supplies.

Detect signs such as excessive heat, unusual noise or burning odor from the module, which indicate hardware failure.

Run hot-swap and redundancy transfer tests to ensure seamless power switching without rack reboot.

Reset faults by power cycling and re-evaluate; if alarms remain, the module is faulty and requires replacement.

FAQ: Bently Nevada 3500/15-05-05-00 Power Supply Module

Q1: What is Bently Nevada 3500/15-05-05-00?

A: The Bently Nevada 3500/15-05-05-00 is a power supply module designed for the 3500 machinery monitoring system, delivering stable power for rack modules used in turbomachinery protection and vibration monitoring.

Q2: What system is 3500/15-05-05-00 compatible with?

A: It works with the Bently Nevada 3500 rack system, widely deployed on turbines, compressors, pumps, generators and other rotating equipment.

Q3: What is the function of the Bently Nevada 3500/15-05-05-00?

A: It converts input power and supplies regulated power to all installed monitoring modules in the 3500 rack, supporting continuous machinery protection operation.

Q4: Is the 3500/15-05-05-00 a hot-swappable module?

A: Yes, this power supply module supports hot swap, allowing replacement without shutting down the entire 3500 monitoring rack under proper operating procedures.

Q5: What input voltage options does 3500/15-05-05-00 support?

A: This specific part number accepts AC or DC input according to its configuration label, matching common industrial power supply specifications for turbomachinery skids.

Q6: Can I use 3500/15-05-05-00 for redundant power setup?

A: Yes, the 3500 rack supports dual redundant power supply configuration with two 3500/15 modules to improve system reliability for critical machinery.

Q7: Is Bently Nevada 3500/15-05-00 still in active production?

A: The 3500 series is an older machinery monitoring platform. Original new units are limited; we supply tested surplus, refurbished and used 3500/15-05-05-00 modules.
