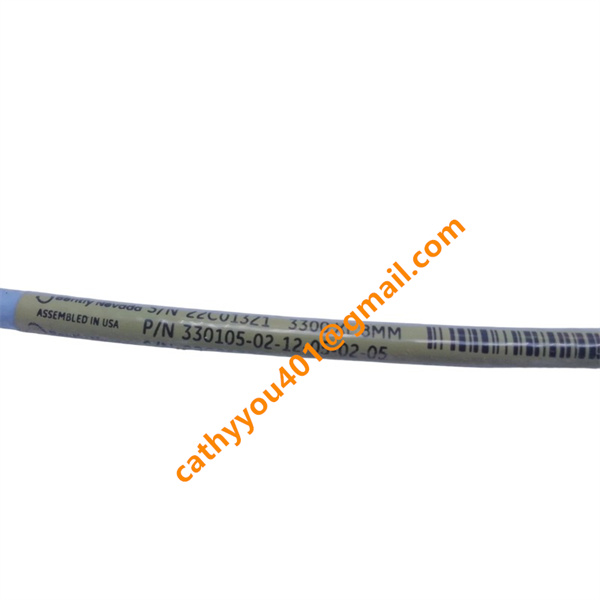

330105-02-12-05-02-05 BENTLY NEVADA DCS Proximity Probe

• Brand
  BENTLY NEVADA
• Model
  330105-02-12-05-02-05
• Product Name
  3300 XL 8 mm Reverse Mount Proximity Probe
• Place of Origin
  United States
• HS Code
  85437099
• Dimensions
  204 mm × 222 mm × 37 mm
• Weight
  0.23 kg
• Operating Temperature
  -45 ℃ ~ +177 ℃
• Storage Temperature
  -55 ℃ ~ +180 ℃
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Power Supply Requirements (for matched Proximitor Sensor)

Operating supply voltage range: -17.5 VDC ~ -26 VDC (without safety barriers)

Operating supply voltage range: -23 VDC ~ -26 VDC (with intrinsic safety barriers installed)

Recommended nominal supply voltage: -24 VDC

Maximum operating current consumption of proximitor: ≤12 mA

Attention: If supply voltage is higher than -23.5 VDC, the effective linear measuring range will be reduced.

Electrical Output Characteristics

System sensitivity: 7.87 V/mm (200 mV/mil)

Linear output voltage range: -1 VDC ~ -17 VDC corresponding to 0.25 mm ~ 2.3 mm measuring gap

Output signal type: continuous analog voltage signal, no standard 4–20 mA current output

Output impedance of proximitor: 50 Ω

Supply sensitivity: Less than 2 mV output variation per 1 V fluctuation of input power

Probe Internal Electrical Property

Nominal DC resistance of probe coaxial cable: 8.5 Ω ±1.1 Ω

Signal transmission form: high-frequency alternating eddy current signal between probe coil and proximitor

Frequency response: 0 Hz ~ 10 kHz (-3dB)

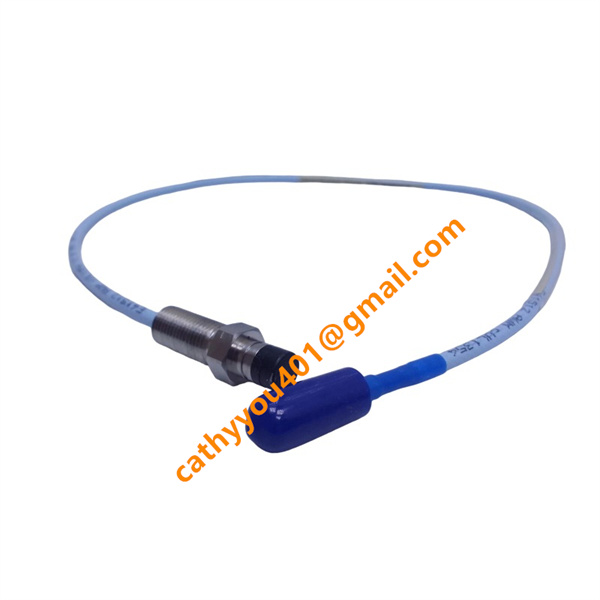

330105-02-12-05-02-05 is a 3300 XL 8mm reverse-mount eddy current proximity probe. It cannot function as a standalone unit. A complete measurement system comprises the proximity probe, extension cable and compatible 3300 XL proximitor sensor.

Internal Connection Between Probe and Proximitor

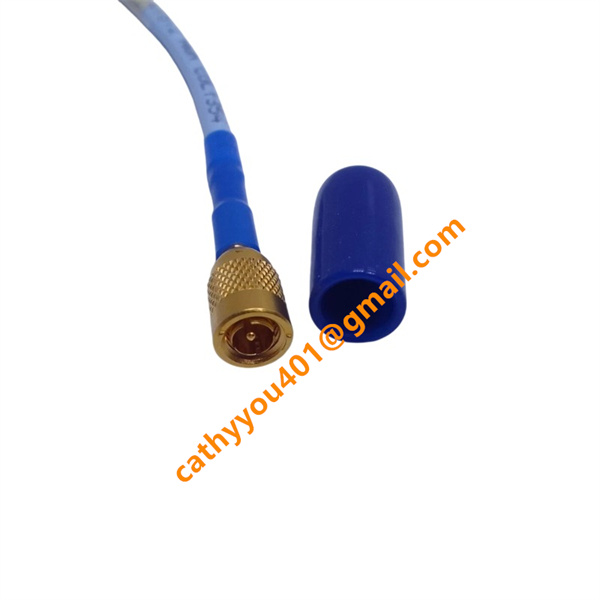

Connect the triaxial cable connector of the 330105 probe to the extension cable, then link the opposite end of the extension cable to the ClickLoc triaxial port on the front panel of the proximitor. Tighten all connectors manually until a clear locking click is audible. Do not apply tools to avoid over-tightening.

Field Terminals on Proximitor (Three-wire Connection)

VT: Negative power input terminal, connected to -17.5 ~ -26 VDC power supply

COM: Common reference ground terminal

OUT: Analog voltage signal output terminal, connected to monitoring modules including 3500 series monitors

Shielding & Grounding Requirements

Multi-point grounding is forbidden for the triaxial shield of the probe and extension cable. Single-point grounding shall only be performed at the monitoring system side. Ensure the proximitor housing is insulated from equipment ground to eliminate ground loop interference.

Signal Cable Requirements (Proximitor to Monitor)

Shielded 3-core cables shall be used for signal transmission. The maximum permissible cable length between the proximitor and monitor is 305 meters. Signal cables should be routed separately from high-voltage power cables to mitigate electromagnetic interference.
