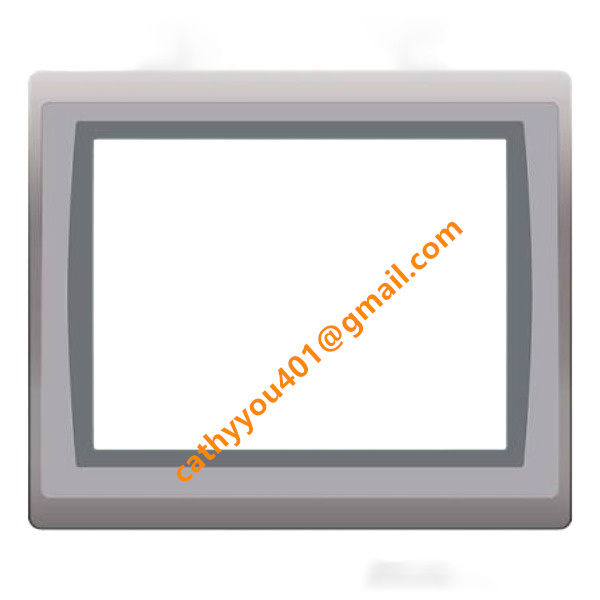

2711P-T10C22D9P Allen-Bradley 10-inch Touch HMI Terminal

• Brand
  Allen-Bradley
• Model
  2711P-T10C22D9P
• Product Name
  PanelView Plus 7 Performance 10-inch Touch HMI Terminal
• Dimensions
  345 mm × 276 mm × 65 mm
• Weight
  2.1 kg
• Place of Origin
  Multiple
• HS Code
  85285211
• Operating Temperature
  0°C to +55°C
• Storage Temperature
  -20°C to +70°C
• Power Supply
  24 V DC (18–30 V DC operating range)
• Warranty
  1 year
• Status
  new brand

2711P-T10C22D9P Allen-Bradley Features

Product Type: PanelView Plus 7 Performance industrial touchscreen HMI terminal;

Display: 10.4-inch TFT color resistive touch screen, SVGA 800 × 600 resolution, 300 nits brightness;

Operating System: Windows 10 IoT Core, compatible with FactoryTalk View Machine Edition runtime software;

Memory: 512 MB RAM plus 512 MB on-board storage, roughly 80 MB usable memory reserved for user applications;

Power Supply: 24 V DC nominal input, acceptable working voltage range from 18 V DC to 30 V DC;

Communication Ports: Dual 10/100 Mbps Ethernet ports with built-in network switch and DLR (Device Level Ring) capability; one RS-232 serial port; three USB 2.0 interfaces; SD card slot available for project backup and program transfer;

Display Backlight: LED backlight with a service life rating of 50,000 hours;

Function Support: Real-time process visualization, alarm management, data logging, VNC remote viewing and email notification;

Installation: Panel mount design equipped with integrated sealing gasket;

Real-time Clock: Battery-supported internal RTC to provide time stamps for alarms and event records;

Software Compatibility: Native connectivity for Rockwell PLC platforms and mainstream industrial network communication;

Structural Features: Robust industrial construction, engineered for cabinet mounting in factory automation environments.

2711P-T10C22D9P Allen-Bradley Supported Communication Protocols

EtherNet/IP: Native Rockwell automation protocol. Equipped with dual Ethernet ports incorporating an internal network switch, it supports DLR (Device Level Ring), linear and star network topologies to establish stable communication with ControlLogix, CompactLogix and other Rockwell PLC controllers.

Modbus TCP: Ethernet deployed Modbus protocol, enabling data exchange with third-party programmable controllers, variable frequency drives and field measurement instruments.

Modbus RTU: Serial Modbus RTU accessed through the RS-232 interface, supporting both master and slave operation modes for serial field device communication.

DF1: Allen‑Bradley proprietary DF1 serial protocol running over RS-232 physical connection, designed for data interaction with older legacy Rockwell controllers.

HTTP/HTTPS: Supports web-based access and VNC remote monitoring functions, allowing remote operators to view HMI screen pages over the network.

FTP: File transfer protocol for uploading, downloading HMI project files and performing local data backup.

BACnet IP: Realized via FactoryTalk Linx driver, used for data interconnection with building automation related devices.

Other third-party drivers: More industrial communication protocols can be activated and configured by utilizing FactoryTalk Linx or KEPServer Enterprise software to expand connectivity to diverse field devices.
