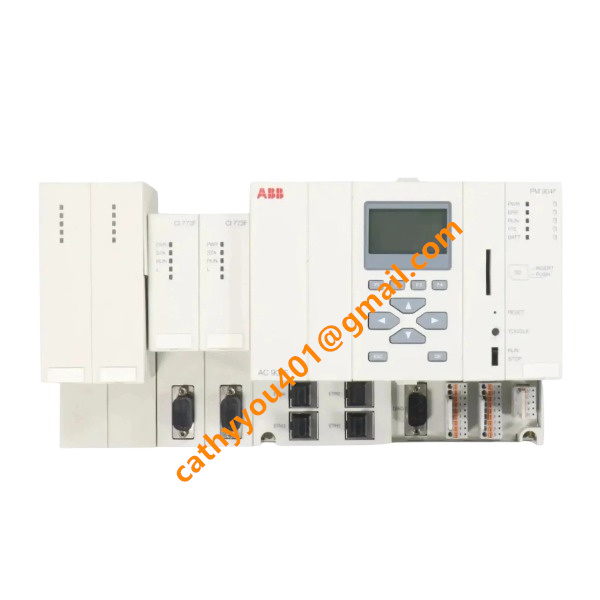

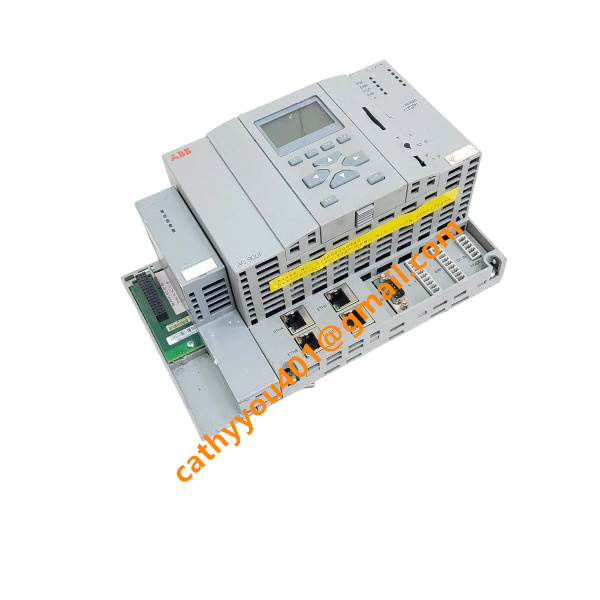

PM904F ABB CPU module in stock

• Brand
  ABB
• Model
  PM904F
• Product Name
  PM904F Plus CPU
• Dimensions
  285 × 152 × 95 mm
• Weight
  1.1 kg
• HS
  8537101190
• Article Number
  3BDH001002R0001
• Operating Temperature
  -20 to +70 °C
• Storage Temperature
  -40 to +85 °C
• Power Supply
  24 W
• Warranty
  12 month
• Status
  new and original

ABB PM904F Key Features

High-performance CPU for ABB Freelance AC 900F

800 MHz PowerQUICC II Pro processor

48 MB controller memory

16 MB battery-buffered SRAM

32 MB DRAM

Four integrated Ethernet interfaces

Two general-purpose serial interfaces

One service/diagnostic interface

Four communication-interface module slots

Supports PROFIBUS and CAN communication modules

Supports Modbus TCP

Supports IEC 60870-5-104

Built-in SD-card interface

Optional LCD display and keypad

Supports controller redundancy

Supports direct S700 I/O

Supports remote I/O and field devices

G3 corrosion protection compliance

DIN-rail or wall mounting

Designed for industrial DCS applications

Main Functions

1. Control Program Execution

The ABB PM904F executes control applications developed in the ABB Freelance Engineering environment. As the central processing unit of the AC 900F controller, it performs real-time control, data processing, communication, and I/O management.

The main control functions include:

Logic and Boolean control execution

Sequential and procedural control

Interlock and permissive management

Process control

PID and other regulatory control algorithms

Alarm and event processing

Process data acquisition and handling

Communication management

I/O processing and monitoring

The controller supports configurable cyclic, event-driven, and PLC-style task execution. Depending on the application and system configuration, controller task cycle times can be configured from approximately 5 ms.

2. I/O Management

The PM904F supports flexible integration of both local and remote I/O systems, allowing it to control and monitor a wide range of industrial field devices.

Supported I/O and field-device architectures include:

Directly connected S700 I/O modules

Remote I/O systems

PROFIBUS-based I/O

CAN-based Freelance Rack I/O

Digital and analog field devices

Process transmitters

Control valves and actuators

Motor and drive systems

An AC 900F controller can support up to 10 S700 I/O modules connected directly to the controller, subject to the applicable system configuration and engineering limitations.

3 .Communication and Network Functions

The PM904F provides extensive communication capabilities for integration with control systems, remote I/O, field devices, and third-party equipment.

The controller incorporates four integrated Ethernet interfaces and supports up to four communication interface modules, allowing the communication architecture to be expanded according to application requirements.

Depending on the installed communication modules and Freelance system configuration, supported communication protocols and interfaces may include:

Modbus TCP

IEC 60870-5-104

Modbus RTU

Modbus ASCII

IEC 60870-5-101

PROFIBUS DP V0/V1

CAN Bus

FOUNDATION Fieldbus

PROFINET, where supported by the applicable Freelance version and hardware configuration
