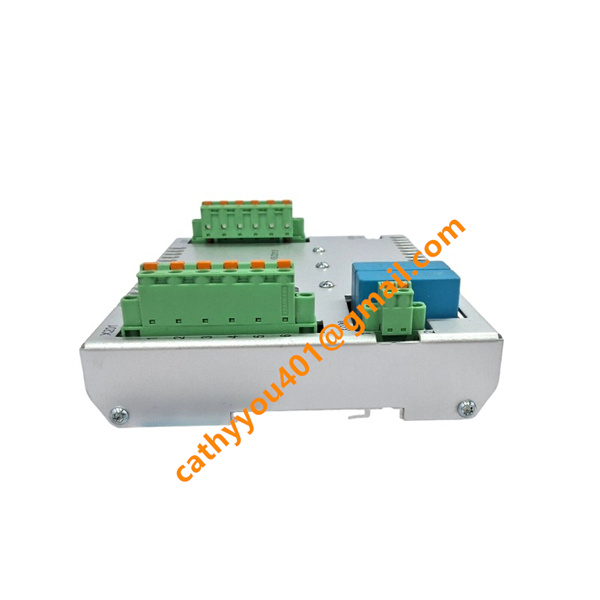

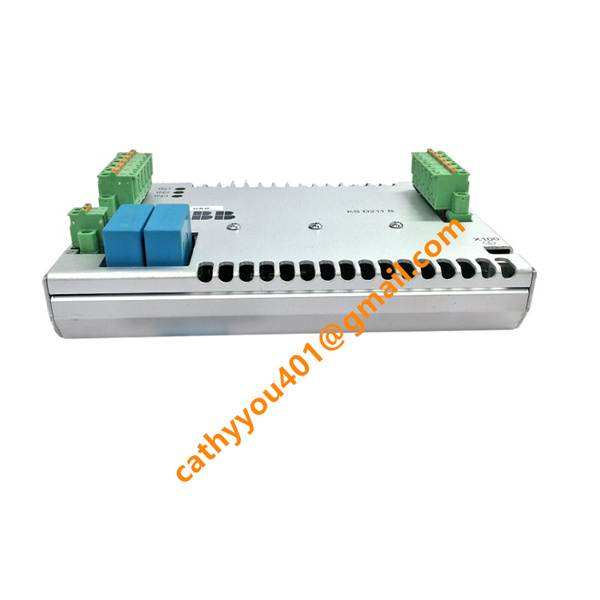

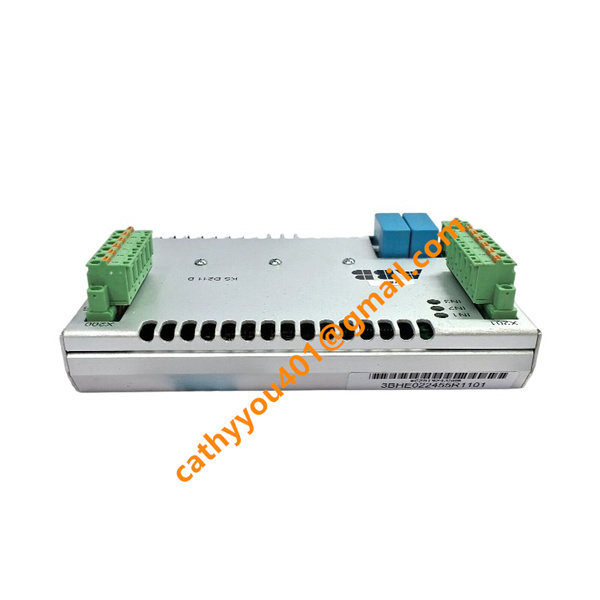

KSD211B 3BHE022455R1101 ABB DCS input coupling unit

• Brand
  ABB
• Model
  KSD211B
• Product Name
  Input Coupling Unit
• Country of Origin
  Switzerland
• HS Code
  85437000
• Dimensions
  165mm×120mm×50mm
• Weight
  0.5 kg / 1.1 lbs
• Operating Temperature
  0°C ~ +55°C (32°F ~ 131°F)
• Storage Temperature
  -40°C ~ +70°C (-40°F ~ 158°F)
• Part Number
  3BHE022455R1101
• Warranty
  12 month
• Product Status
  New and original

ABB KSD211B 3BHE022455R1101 Technical Specification Document

Electrical Specifications

Module Working Power Supply: DC 24V, allowable fluctuation range: 20.4 VDC ~ 28.8 VDC

Typical Operating Current: 75mA @ rated 24VDC

Maximum Power Consumption: ≤ 1.8 W

Field Analog Input Signal Types: AC voltage signal 0–120V; DC low voltage signal 0–10V; 4–20mA industrial standard current signal

Signal Channel Capacity: Multi-channel independent isolated signal input terminals, each channel equipped with independent filter circuit

Backplane Bus Communication Power: Isolated internal power supply, separated completely from field signal power circuit

Overvoltage Protection: Built-in TVS surge suppression components for anti-lightning impulse and transient high voltage impact

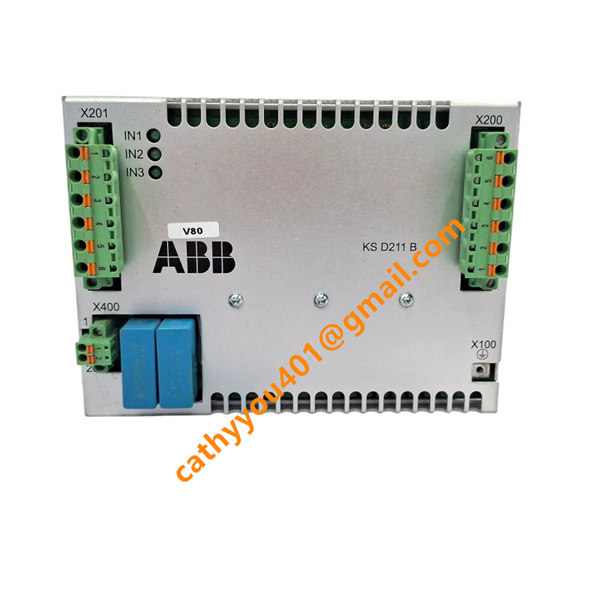

KSD211B 3BHE022455R1101 ABB Detailed Wiring & Connection Instructions

1. DC 24V Working Power Wiring

Power terminals locate on lower terminal row X200: terminal 1 = +24VDC positive pole; terminal 2 = 0V/GND negative pole

Cabinet PE protective ground wire connects dedicated grounding terminal, must implement reliable earthing

Recommend shielded twisted pair cable for power wiring; cable shielding layer single-end grounded inside control cabinet

2. On-site Measuring Sensor Signal Input Wiring (Terminal X400)

Terminal block X400 is dedicated for external analog signal access: generator voltage transformer, current transformer, transmitter 4–20mA signal connect corresponding channel terminals respectively

Wiring specification: AC voltage signal uses 1.5mm² insulated wire; 4–20mA current signal uses shielded twisted pair wire

Signal positive and negative polarity must be strictly distinguished; reversed wiring will cause signal acquisition deviation or module channel fault alarm

3. Backplane Bus Communication Wiring

Internal bus terminals connect UNITROL 6000 rack backplane bus, realize data interaction between coupling unit and excitation master controller

Bus cable adopts double-shielded dedicated industrial bus wire; install terminal matching resistor at the end of bus cascade arrangement

4. Fault Signal Output Wiring (Terminal X201)

X201 terminals are used for channel fault alarm passive contact output, can be connected to on-site alarm indicator light and DCS remote fault reporting system

Contact rated load: Max 250VAC / 3A resistive load

5. Wiring Operation Important Notes

1. All wiring operations must be carried out under complete power-off state of excitation system to avoid high voltage electric shock and module burnout.

2. High voltage transformer secondary wiring and weak current signal wiring shall be laid separately in different wiring conduits to avoid electromagnetic crosstalk.

3. After wiring completion, conduct continuity test and insulation resistance test for each channel before power-on commissioning.

KSD211B 3BHE022455R1101 ABB Core Product Advantages

1. Professional Matching for UNITROL 6000 Excitation System: Developed targeted for generator excitation control system, perfect protocol and hardware compatibility without extra signal adapter conversion.

2. High-strength Electrical Isolation Technology: Complete isolation between field high-voltage measuring loop and control core circuit, thoroughly eliminating ground loop noise and high voltage back-feed damage risk.

3. Multi-stage Signal Filtering & High Measurement Precision: Integrated passive LC filter + active signal conditioning circuit, effectively suppress power plant harmonic interference; signal conversion accuracy reaches ±0.1% FS.

4. Modular Plug-and-Play Structure: DIN rail quick installation design, support hot swap replacement under system standby state, greatly shorten power plant equipment maintenance outage duration.

5. Channel Independent Fault Diagnosis: Each signal channel is equipped with independent fault detection circuit; front panel LED indicator separately displays power status, channel abnormal, open circuit and overload faults.

6. Ultra-compact Cabinet Layout: Small body size saves precious control cabinet installation space, convenient for centralized rack arrangement of multiple excitation system auxiliary modules.

7. Strong Industrial Harsh Environment Adaptability: Strict power plant grade aging test, stable long-term continuous operation under high dust, slight temperature fluctuation and strong electromagnetic interference environment.

•
