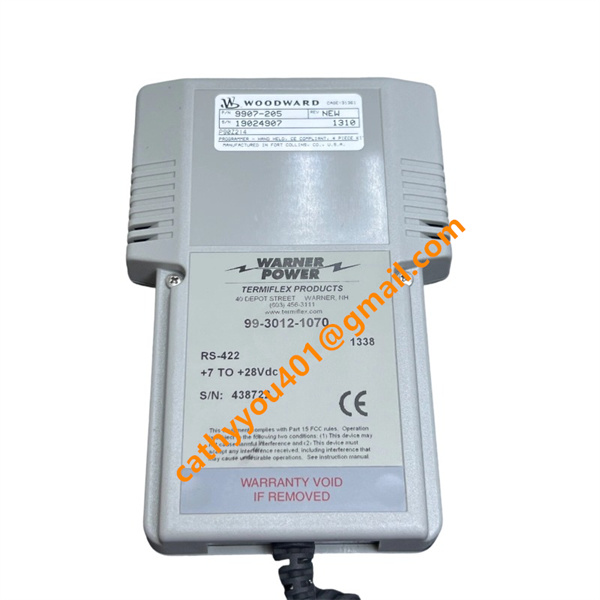

WOODWARD 9907-205 Hand-Held Programmer

• Brand
  WOODWARD
• Model
  9907-205
• Product Name
  Hand-Held Programmer (HHP) / Control Interface Module
• Country of Origin
  United States (USA)
• HS Code
  8537109190
• Dimensions
  14 inches x 11 inches x 4 inches
• Weight
  10 lbs
• Operating Temperature
  -13°F to +149°F (-25°C to +65°C)
• Storage Temperature
  -40°F to +185°F (-40°C to +85°C)
• Power Supply
  15 kV
• Warranty
  12 month
• Product Status
  New and original

WOODWARD 9907-205 Technical Specifications

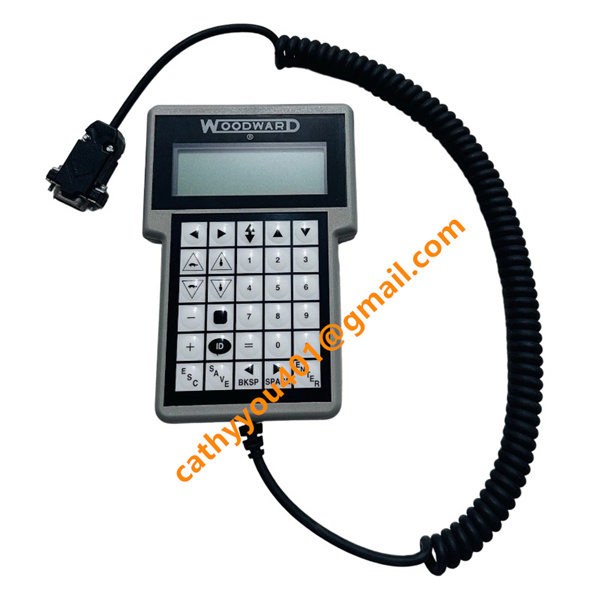

Input Specifications: Powered directly through the host control module's communication bus connection (Operating range typically tolerates 18-32 VDC supplied from the primary control panel). It incorporates a user interface consisting of a 30-key analog tactile keypad and a 2-row, 12-character high-contrast display.

Output / Communication Interface: Direct serial communication (RS-232 / RS-485 custom link protocol) designed to feed configuration parameters, diagnostic prompts, and tuning commands straight into the linked governor or synchronizer module.

WOODWARD 9907-205 Product Advantages

High Portability & Convenience: Eliminates the need to carry heavy laptops or specialized industrial computers onto the factory floor or into tight generator enclosures for routine calibration.

Pre-Power Configuration: Enables engineers to define specific control thresholds, network configurations, and safety parameters safely before completely spinning up the prime mover or generator system.

On-the-Fly Diagnostics: Provides field technicians with instant visibility into real-time generator metrics, power factoring curves, contact switches, and analog input/output health loops.

Industrial-Grade Resilience: Built with robust environmental defense mechanisms, featuring high ESD resistance and strong physical housing designed to absorb drop shocks and physical strain in power plants.

Simplified Multi-Functionality: Serves as a single universal maintenance tool across several generations of Woodward platforms (MSLC, DSLC, ProAct, and 721 series), reducing total tooling costs for industrial service teams.

WOODWARD 9907-205 Wiring and Connection Method

Connection Type: Plug-and-play serial tether.

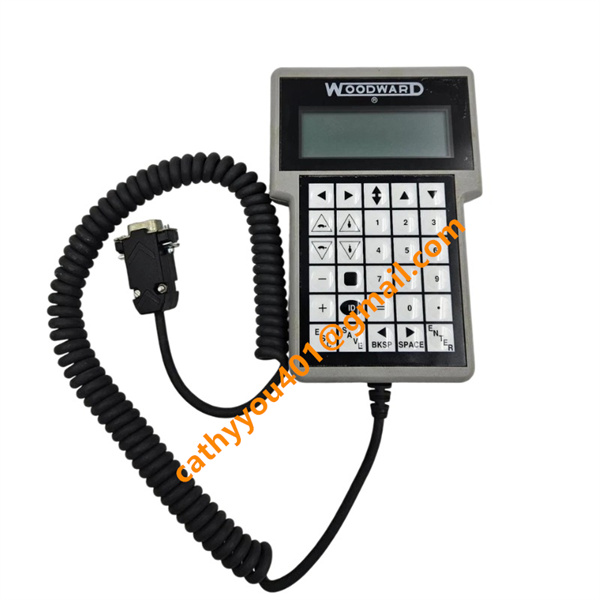

Wiring Method: It does not use fixed screw terminals. Instead, it utilizes a dedicated, pre-wired serial cable assembly equipped with a round multi-pin industrial connector (or a standard D-sub subminiature connector depending on the companion model) that plugs directly into the "Hand-Held Programmer" or serial service port located on the front face of the active Woodward module.

•
