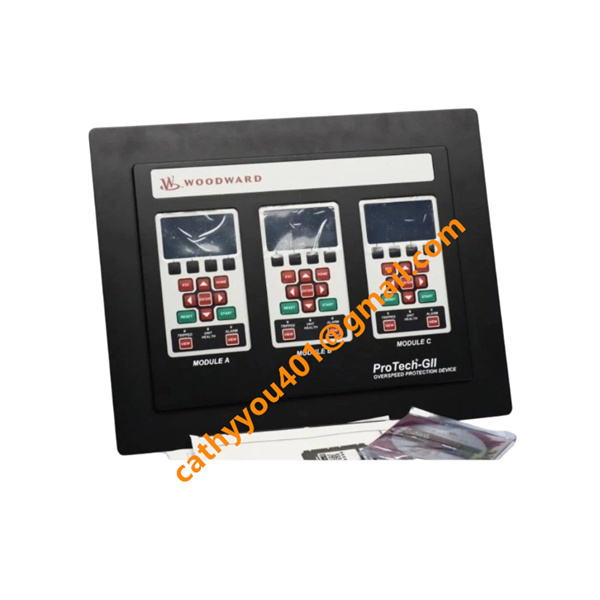

WOODWARD 8237-1369 Control Module

• Brand
  WOODWARD
• Model
  8237-1369
• Product Name
  Control Module / Governor Controller
• Country of Origin
  United States
• HS Code
  8537109190
• Dimensions
  25.4 cm x 20.3 cm x 10.2 cm (10.0 in x 8.0 in x 4.0 in)
• Weight
  2.5 kg (5.5 lbs)
• Operating Temperature
  -40°C to +70°C (-40°F to +158°F)
• Storage Temperature
  -55°C to +105°C (-67°F to +221°F)
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

WOODWARD 8237-1369 Technical Specifications & Details

Inputs: Multi-channel inputs including analog inputs (e.g., 4-20 mA, 0-5 V) for sensor feedback, digital/discrete inputs for status switching, and high-speed magnetic pickup (MPU) inputs for precise speed sensing.

Outputs: Proportional actuator drivers (e.g., 0-200 mA), configurable analog outputs for remote monitoring, and discrete relay outputs for alarms, trips, and status signaling.

WOODWARD 8237-1369 Key Product Advantages

Exceptional Reliability: Built with industrial-grade components to withstand severe vibrations, thermal shock, and electromagnetic interference (EMI) typical of harsh engine room environments.

High Precision Control: Offers advanced microprocessing power for ultra-fast response times, ensuring tight speed and load control of critical prime movers.

Versatile Interfacing: Equipped with flexible input/output configurations, making it highly adaptable to a wide range of actuators, sensors, and legacy systems.

Simplified Maintenance: The plug-and-play nature of the terminal connections reduces downtime during system diagnostics, upgrades, or hardware replacements.

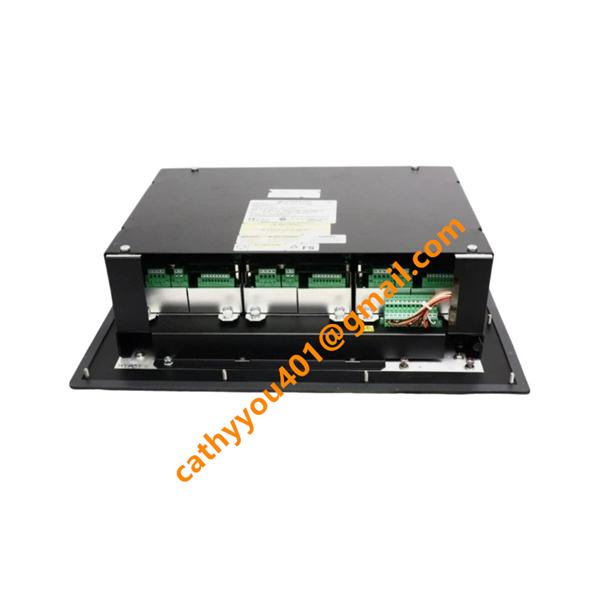

WOODWARD 8237-1369 Wiring & Connection Method

Wiring Method: Screw terminal block connection. It features heavy-duty, pluggable terminal blocks that allow for secure point-to-point wiring. This design accommodates shielded twisted-pair cables for signal integrity and facilitates easy replacement or maintenance without disconnecting individual wires.

•
