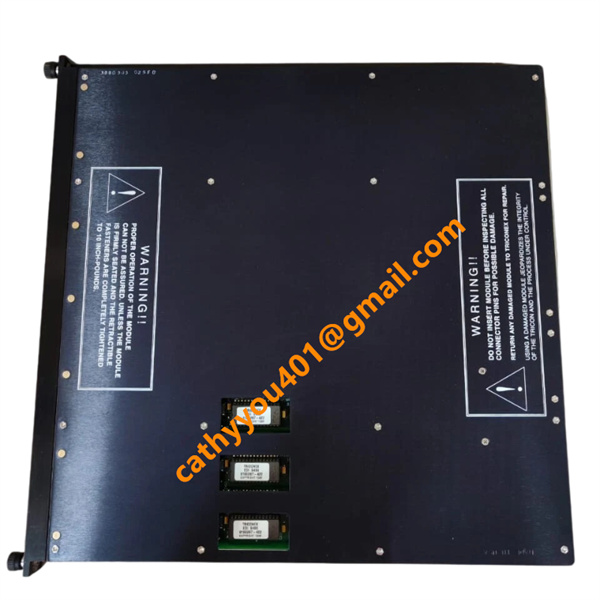

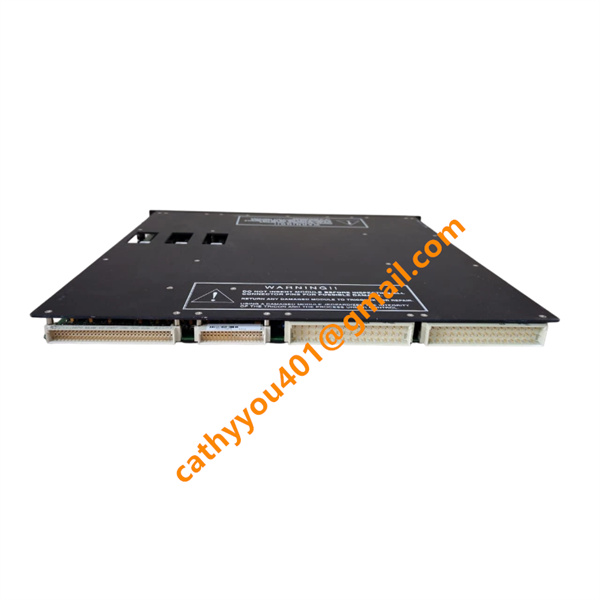

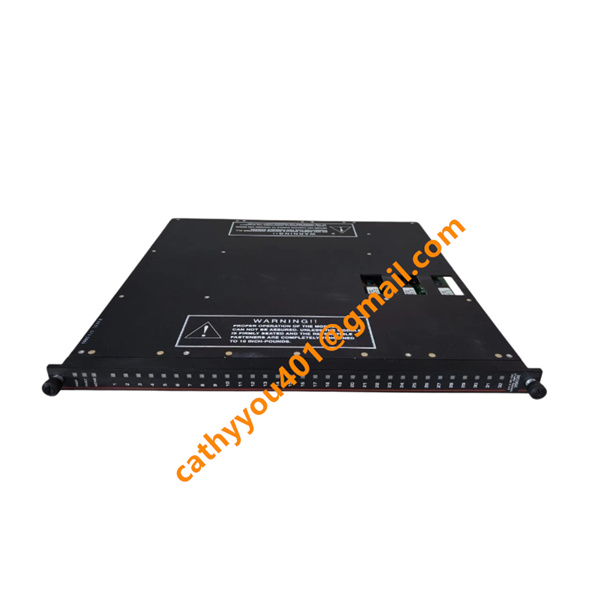

Triconex 3503E DCS digital input module

• Brand
  Triconex
• Model
  3503E
• Product Name
  3503E High-density Digital Input Module
• Country of Origin
  United States
• HS Code
  85371011
• Dimensions
  340mm×115mm×35mm
• Weight
  0.95kg
• Operating Temperature
  -40°C to +70°C
• Storage Temperature
  -40°C to +85°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

Triconex 3503E Product Introduction and Technical Parameters

Electrical Parameters

The Triconex 3503E supports wide-range industrial DC power supply adaptation with excellent power stability. It accepts a standard external 24VDC power supply with an effective input voltage range of 12VDC to 36VDC, and a signal input voltage range of 20VDC to 42.5VDC. The module features a single-channel input current of 1.5A and output current of 2A, with low overall power consumption. Built with high-precision isolated power regulation circuits, it integrates complete over-voltage, under-voltage and over-current protection functions. It supports DC and 47–63Hz low-frequency signal acquisition, with 3500V AC isolation strength between channels and the system, effectively avoiding signal crosstalk and electrical damage caused by power supply anomalies.

Core Product Characteristics

Firstly, it adopts professional TMR triple modular redundant fault-tolerant architecture. Three independent parallel channels and 2oo3 voting logic eliminate single-point failure risks, ensuring extremely high operational reliability for safety-critical systems.

Secondly, it features high-density and high-isolation design. The 32-channel independent grouping isolation structure prevents mutual interference between signals, and the high insulation strength improves system anti-interference ability in complex electromagnetic environments.

Thirdly, it possesses strict safety certification performance. Fully compliant with SIL3 safety integrity level standards, it meets international industrial safety system design specifications and provides reliable safety guarantee for high-risk process industries.

Fourthly, it has excellent environmental and electrical stability. The wide temperature working range, robust anti-vibration structure and perfect power protection mechanism ensure long-term stable operation in harsh industrial scenarios.

Product Advantages

The Triconex 3503E has prominent comprehensive advantages in industrial safety control applications. Its TMR fault-tolerant design and voting logic effectively avoid system shutdown and signal errors caused by single module or channel faults, greatly improving the safety and continuity of industrial production. The high-density 32-channel design saves cabinet space and reduces overall system configuration costs. With fast signal response, high acquisition accuracy and strong anti-interference capability, it ensures real-time and effective execution of safety interlock actions. Verified by massive industrial field applications, the module features stable long-term operation, convenient maintenance and high system compatibility, making it a core preferred I/O module for high-reliability SIS safety control systems in process industries.

Interface and Functional Configuration

This high-density digital input module is equipped with 32 isolated input channels, grouped into 4 independent groups with 8 channels per group for decentralized signal collection. It is compatible with both dry contact and wet contact field signal types, covering most industrial on-site switching signal collection scenarios. Featuring a fast response speed within 2ms, it realizes real-time signal detection and data uploading. It supports standard system bus communication and seamless data interaction with the Tricon main controller, achieving synchronous signal acquisition, fault diagnosis and data feedback for safety interlock control.
