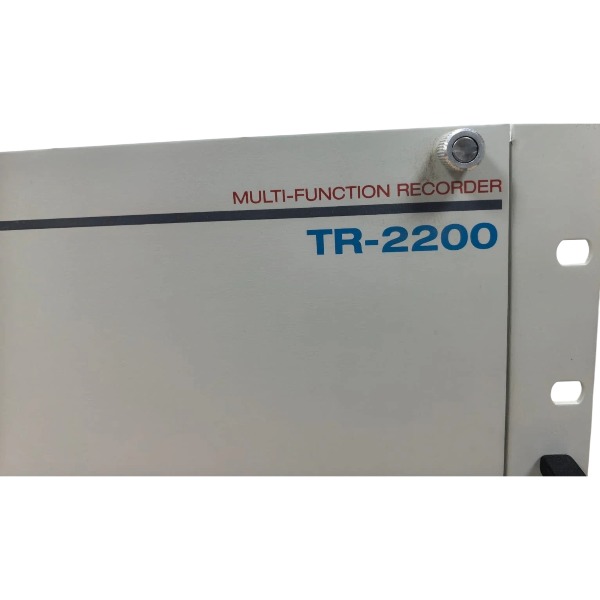

TR-2200 AMETEK Multi-Function Transient / Digital Fault Recorder

• Brand
  AMETEK
• Model
  TR-2200
• Product Name
  Multi-Function Transient / Digital Fault Recorder
• Place of Origin
  United States
• Customs HS Code
  90303900
• Power Supply
  85 V AC to 264 V AC, 125 V DC / 250 V DC
• Dimensions
  483 mm × 178 mm × 356 mm
• Weight
  13.6 kg
• Operating Temperature
  -20°C to +60°C
• Storage Temperature
  -40°C to +85°C
• Warranty
  12 month
• Product Status
  brand new

Technical Specifications, Features and Functions of AMETEK TR-2200 Multi-Function Transient Fault Recorder

 Technical Specifications

16-bit high-resolution analog sampling.

Configurable sampling speed reaching 3840 samples per cycle.

Expandable analog and digital input channels to acquire voltage, current and contact status signals.

Compatible with 50 Hz and 60 Hz power system frequencies.

IRIG-B and GPS time synchronization deliver millisecond-accurate time stamping.

Standard 19-inch 4U rack-mount form factor.

Wide-range DC auxiliary power input designed for substation deployment.

High-isolation input circuitry for CT and VT signal connection.

Meets PRC-002-2 disturbance recording compliance requirements.

 Key Features

Modular channel expansion design enables flexible system configuration.

Strong electromagnetic immunity for demanding substation environments.

Reliable long-duration continuous recording performance.

Onboard high-capacity non-volatile storage for waveform and event logs.

Supports IEC 61850 MMS and GOOSE communication protocols.

Remote access and data download available over Ethernet.

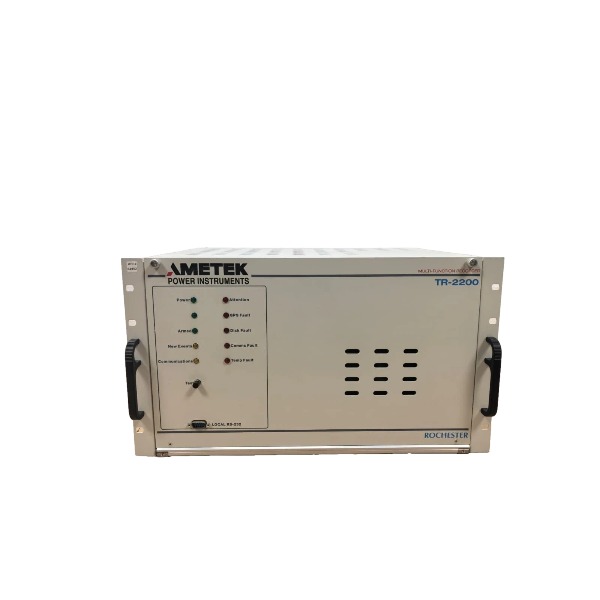

Front-panel LED status indicators for rapid on-site health checking.

Conforms to North American electric utility industry standards.

 Main Functions

Captures transient fault waveforms during power system failures.

Records sequence of events (SOE) with high-precision timestamps.

Monitors dynamic system disturbances and captures abnormal events.

Adjustable pre-fault and post-fault recording time windows.

Multi-condition programmable trigger logic for fault triggering.

Stores, replays and exports waveform data for post-fault investigation.

Transmits disturbance records to central monitoring hosts via network.

Generates fault reports to support power system incident analysis.

Transmission and distribution substations for grid disturbance capture and post-fault analysis.

IEC 61850 digital substations for logging GOOSE, MMS messages and analog oscillography data.

Renewable energy collector substations to monitor grid faults at wind farms and solar power stations.

Switchgear chambers in thermal power plants for event recording of generator and transformer protection systems.

Heavy-load industrial power distribution networks serving petrochemical and mining facilities.

Utility feeder monitoring projects to meet PRC-002-2 requirements and support disturbance reporting.

Railway traction power substations for recording transients and short-circuit events in traction power supplies.

Remote and island unattended substations, featuring GPS and IRIG-B time-synchronized SOE recording.

Power quality assessment sites to capture voltage sags, swells and harmonic disturbance waveforms.

Supplementary recording source for protection relay logs during investigations of misoperation and false tripping.

FAQ: AMETEK TR-2200 Multi-Function Transient Recorder

Q1: What is AMETEK TR-2200?

A: AMETEK TR-2200 is a high-speed multi-function transient recorder / digital fault recorder for power system monitoring, fault waveform capture, power quality analysis and synchrophasor recording, widely used in power generation, transmission and distribution utilities.

Q2: What are the main applications of AMETEK TR-2200?

A: It is used for power system fault analysis, relay protection performance verification, harmonic & power quality monitoring, breaker switching timing test, transient oscillation recording and WAMS wide-area grid stability monitoring.

Q3: What is the maximum sampling rate of AMETEK TR-2200?

A: The TR-2200 supports up to 195 kHz high-speed sampling to capture fast electrical transients and fault waveforms accurately.

Q4: Is AMETEK TR-2200 19-inch rack mountable?

A: Yes, TR-2200 adopts standard 19-inch rack chassis design, which can be installed in standard switchgear cabinets or customized turnkey cabinet systems.

Q5: Can AMETEK TR-2200 record both analog and digital signals?

A: Yes, the TR-2200 platform supports expandable analog and digital input modules to collect voltage, current, status and contact signals at the same time.

Q6: Is AMETEK TR-2200 still available for new orders?

A: The TR-2000 series including TR-2200 has stopped accepting new orders from AMETEK official; we supply surplus, used and refurbished TR-2200 units with functional testing and after-sales support.
