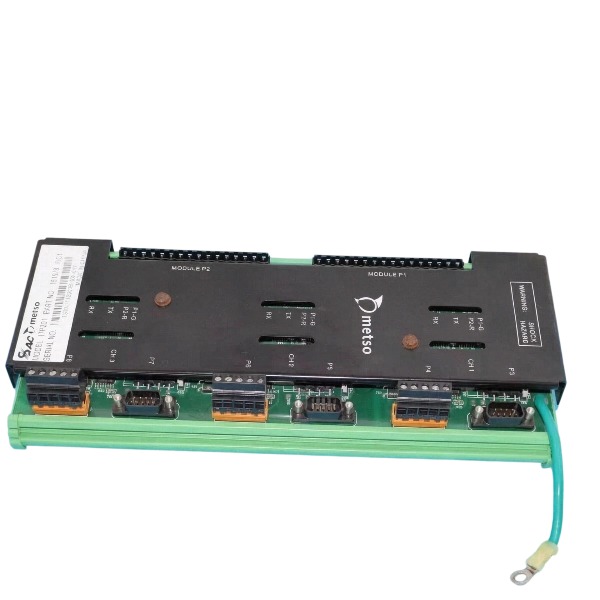

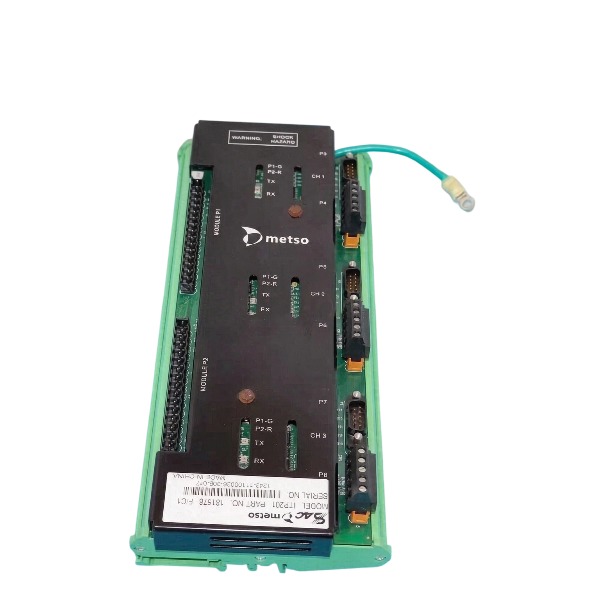

ITP201 Metso Analog Input Transmitter Module in stock

• Brand
  Metso
• Model
  ITP201
• Product Name
  Analog Input Transmitter Module
• Place of Origin
  Finland
• Customs HS Code
  85437099
• Power Supply
  24 V DC
• Dimensions
  200 mm × 70 mm × 40 mm
• Weight
  0.06 kg
• Operating Temperature
  ‑20℃ to +60℃
• Storage Temperature
  ‑40℃ to +85℃
• Warranty
  1year
• Product Status
  new and original

Metso ITP201 Intelligent Temperature Transmitter-Function Description

ITP201 is a head-mounted smart temperature transmitter developed by Metso (Valmet), specially designed for industrial process temperature measurement.

It captures raw temperature signals supplied by RTD and multiple-type thermocouple field sensors;

Built-in algorithms complete signal linearisation, automatic cold-junction compensation, digital filtering and precise temperature computation;

Measured temperature data is converted into industry-standard 4-20 mA loop analogue signal, together with superimposed HART 7 digital communication;

Processed signals are sent to DCS, PLC or local display units to realise real-time temperature observation and closed-loop process regulation;

Users can locally or remotely configure measurement span, sensor mode, damping parameter and engineering unit through HART hand-held communicator;

Integrated diagnostic functions continuously monitor sensor status, covering cable breakage, short-circuit and measurement over-range alarm notifications;

Excellent long-term stability and minor thermal drift make it suitable for pulp-and-paper, power generation, chemical and other heavy-duty working scenarios;

IP66 / NEMA 4X rated enclosure provides reliable defence against dust and humidity for demanding field installation conditions.

Input: Pt100 RTD; Thermocouple types J, K, T, E, R, S, B, N

Output: 4-20 mA analogue signal with HART 7 digital protocol

Power supply: 11~42 VDC

Measurement accuracy: ±0.1 % of span for RTD inputs; ±0.2 % of span for thermocouple inputs

Operating ambient temperature: -40 ℃ ~ +85 ℃

Protection class: IP66 / NEMA 4X

Installation form: Thermocouple-head mounting style

Advantages of Metso ITP201 Intelligent Temperature Transmitter

Compatible with diverse sensor options, covering Pt100 RTD and complete thermocouple variants J, K, T, E, R, S, B, N to accommodate various on-site measurement requirements;

High-precision signal processing electronics deliver minimal thermal drift and consistent long-term measuring performance;

Integrated HART 7 protocol enables remote parameter setup, live process data retrieval and on-board device diagnostic functions;

Comprehensive built-in sensor diagnostics identify cable breaks, short-circuit faults and measurement over-range events with dedicated alarm outputs;

Space-saving head-mounted construction allows direct assembly onto thermowells, simplifying installation and lowering overall wiring expenses;

Robust IP66 / NEMA 4X housing offers dependable protection against dust and moisture for severe industrial operating conditions;

Broad 11-42 VDC supply tolerance ensures seamless compatibility with standard industrial loop power infrastructures;

Configurable signal damping filters electrical interference and effectively mitigates undesired temperature signal oscillations;

Well-adapted to heavy-duty process sectors including pulp and paper, power generation and chemical processing;

Delivers robust temperature-to-standard-signal conversion, guaranteeing steady data communication to DCS and PLC control platforms.
