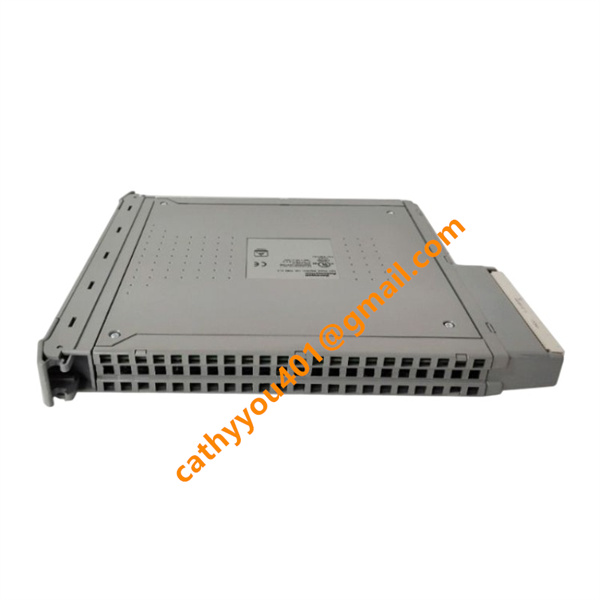

ICS Triplex T8801 40 Channel DI FTA Module

• Brand
  ICS Triplex
• Model
  T8801
• Product Name
  24VDC Digital Input FTA (Field Terminal Assembly) Module
• Country of Origin
  United States
• HS Code
  85389000
• Dimensions
  0.65kg
• Weight
  220mm×150mm×25mm
• Operating Temperature
  -10°C to +70°C
• Storage Temperature
  -12°C to +90°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

ICS Triplex T8801 Product Introduction and Technical Specifications

Electrical Input and Output Parameters

Working Power Input: Standard 24VDC industrial power supply, adaptive voltage range of 20VDC to 32VDC, supporting stable power supply for internal filter and terminal circuits

Field Signal Input: Adapted to 24VDC passive switch signal input from on-site equipment such as limit switches and proximity switches, supporting wide-range field digital signal access

Signal Output: Standard filtered and stabilized digital signal output, matched with Trusted series main input module signal level specifications. It outputs pure and interference-free standard digital signals to the rear-end system, without signal amplification and drive functions, focusing on signal sorting and optimization transmission

Wiring and Installation Methods

Wiring Mode: Adopts layered terminal centralized wiring design. It is divided into field signal incoming terminals and system matching outgoing terminals, with clear signal direction classification. The module uses standard screw fixed terminals for on-site wiring, with firm connection and strong anti-loosening ability. It supports one-to-one corresponding signal transmission, and achieves unified wiring specification and signal isolation through internal circuit optimization, avoiding signal crosstalk caused by dense field wiring.

Installation Mode: Supports standard cabinet side plate fixed installation and auxiliary DIN rail mounting. As a peripheral wiring accessory module, it is usually installed near the main I/O module, which is convenient for short-distance signal connection, reduces wiring length, and optimizes cabinet internal wiring layout.

Core Product Features

Firstly, it features professional field signal conditioning function, integrating filtering and surge suppression circuits to optimize messy field switch signals and eliminate interference noise. Secondly, it adopts dedicated FTA terminal matching design, perfectly compatible with Trusted TMR system digital input modules, realizing zero-error signal docking. Thirdly, it has standardized signal sorting capability, classifying and integrating scattered on-site multi-channel signals to standardize system wiring logic. Fourthly, it adopts passive signal transmission design, no signal delay and distortion, ensuring real-time consistency between field signals and system acquisition data. Fifthly, the lightweight and thin body structure is specially designed for cabinet auxiliary installation, which does not occupy the main slot position of the system rack.

Product Advantages

In terms of signal stability, the built-in filtering and anti-surge design effectively solves the problem of unstable field switch signals, greatly improving the accuracy of system digital signal acquisition. In terms of engineering standardization, the unified terminal wiring specification standardizes on-site construction, reduces wiring errors, and facilitates later circuit inspection and maintenance. In terms of system compatibility, it is exclusively adapted to ICS Triplex Trusted safety systems, with high matching degree and no signal adaptation failure. In terms of cost control, as a low-power passive accessory module, it has low power consumption and no redundant performance waste, reducing long-term system operation energy consumption. In terms of layout optimization, the auxiliary installation method optimizes cabinet wiring aesthetics and rationality, reduces wiring chaos, and improves the overall stability of the control system wiring loop.
