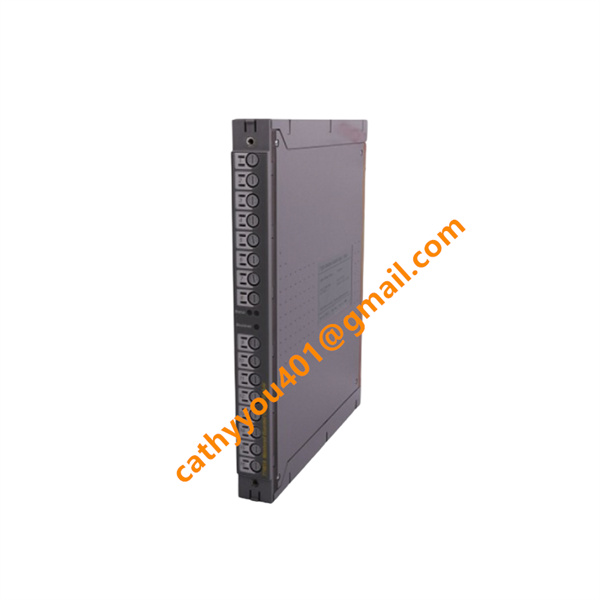

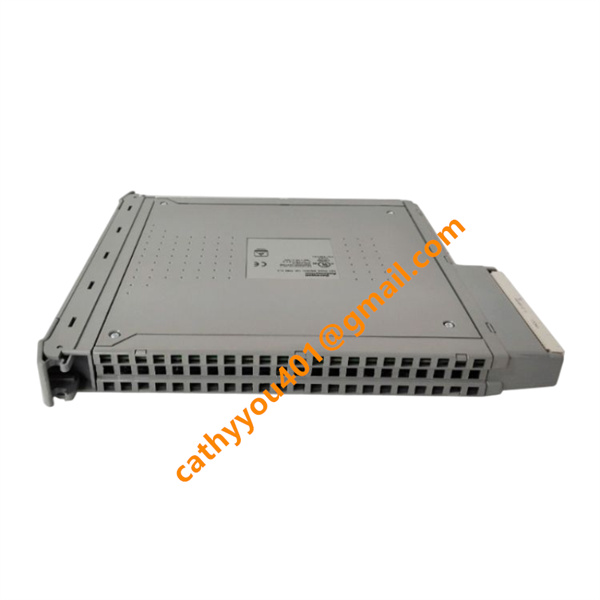

T8431 ICS Triplex DCS Analog Input Module

• Brand
  ICS Triplex
• Model
  T8431
• Product Name
  Trusted TMR 24VDC Analog Input Module
• Country of Origin
  United States
• HS Code
  85371011
• Dimensions
  266mm× 31mm× 303mm
• Weight
  1.149kg
• Operating Temperature
  -20°C to +70°C
• Storage Temperature
  -40°C to +85°C
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

ICS Triplex T8431 Product Introduction and Technical Parameters

Electrical Parameters

Powered by standard industrial 24VDC power supply, the T8431 features stable and low power consumption performance with a total power consumption of 15W to 18W. It supports versatile analog signal input ranges, including 0–6VDC voltage input and 0–22mA current input, compatible with mainstream industrial analog transmitters. The module achieves ultra-high acquisition resolution of 3.9μA and precise calibration accuracy of 0.03%, with a safety accuracy of ±1% full scale. It is equipped with 2500Vrms isolation voltage between internal circuits and field signals, effectively preventing electrical interference and surge damage. Integrated over-voltage and over-current protection functions further enhance operational safety and stability.

Core Product Characteristics

Firstly, it adopts professional TMR triple modular redundant fault-tolerant architecture. The 2oo3 voting logic eliminates single-point failure risks and ensures ultra-high operational reliability for safety-critical industrial systems.

Secondly, it possesses high-precision and high-density signal acquisition performance. With 40-channel high-capacity signal processing, microsecond-level resolution and excellent calibration accuracy, it guarantees precise and stable analog signal collection.

Thirdly, it integrates comprehensive intelligent diagnosis functions. Built-in cable fault detection and high-precision SOE event recording facilitate rapid fault location and system status monitoring.

Fourthly, it features strong electrical isolation and anti-interference capability. The high isolation voltage design effectively isolates field signal interference and protects internal core circuits from surge and electromagnetic impact.

Product Advantages

The ICS Triplex T8431 provides prominent comprehensive advantages for industrial safety control applications. Its TMR fault-tolerant design ensures non-stop signal acquisition and avoids system shutdown caused by single module or channel faults, greatly improving production safety and continuity. The high-density multi-channel design saves cabinet space and reduces overall system configuration costs. Ultra-fast response speed and high acquisition accuracy effectively improve the precision of process control and safety interlock action. With intelligent self-diagnosis and wiring monitoring functions, it lowers maintenance difficulty and reduces equipment failure downtime. Field-verified for long-term industrial operation, it features strong stability, high safety level and excellent system compatibility, serving as a premium core analog input module for SIS safety systems in process industries.

Interface and Functional Configuration

This high-density analog input module is configured with 40 independent signal input channels, supporting separate parameter configuration and line monitoring for each channel. It delivers an ultra-fast sample update time of 0.5ms, ensuring real-time signal collection and data uploading. The module integrates intelligent cable diagnosis functions, which can automatically detect open circuit and short circuit faults of field wiring. It supports 1ms high-precision Sequence of Events (SOE) reporting, realizing accurate fault time recording and system event tracing. It can seamlessly communicate with the Trusted system main controller to complete real-time data analysis and safety logic judgment.
