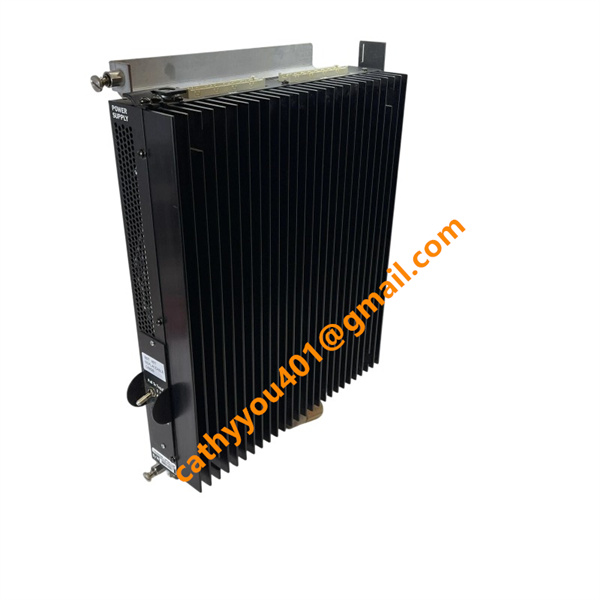

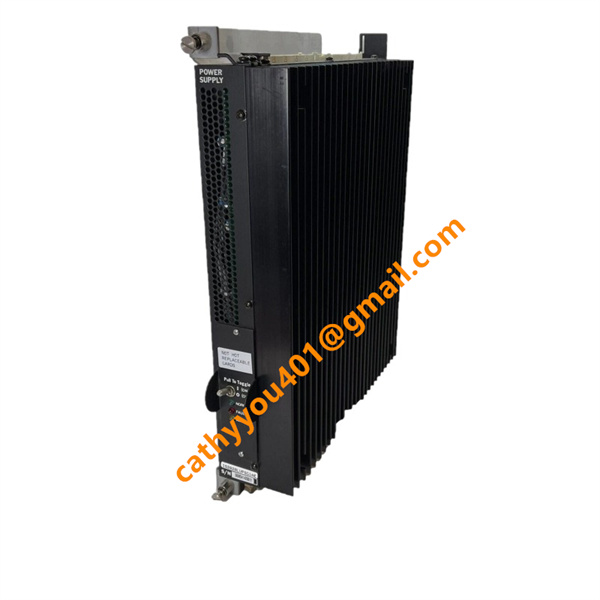

IS2020JPDFG01 GE DC Power Distribution Module

• Brand
  GE
• Model
  IS2020JPDFG01
• Product Name
  DC Power Distribution Module
• Place of Origin
  United States
• HS Code
  85389091
• Dimensions
  268 mm × 215 mm × 46 mm
• Weight
  0.78 kg
• Operating Temperature
  -10 °C ~ +55 °C
• Storage Temperature
  -40 °C ~ +85 °C
• Power Supply
  24 VDC
• Warranty
  12 month
• Product Status
  New and original

Backed by abundant in-stock inventory and nearly 20 years of industry experience, our company stands as a leading player in the industrial control sector.We offer an extensive range of industrial control products covering numerous models. Should you have any other requirements, please feel free to contact us, and we will respond to you promptly.

Our main brand:

1.ABB's module cards, touch screens, controllers, etc., such as PP846 touch screen, IGCT starting with 5SHY, PM starting controller, AI, DO starting input/output module, SP starting Bailey module, etc

2.GE's module card CPUs, such as VMIC starter, IS200, IS215, IS400, IS420 series, etc,

3.Emerson's card components and EPRO probes, Westinghouse 1C series, Honeywell CC series, Schneider 140 series, Envision full series, Bentley 3500 series, Rexroth motors and drives, and Foxboro small modules.

Main Power Input Parameters

Nominal input voltage: 125 VDC

Continuous operating voltage range: 100 VDC ~ 140 VDC

Maximum transient withstand voltage: 150 VDC (short-duration only)

Minimum operational threshold voltage: 95 VDC

Max continuous total input current: 12 A

Typical steady-state operating current under full load: 7.5 A

Peak inrush current during power-up: Less than 18 A

Dual redundant power input terminals are equipped to enhance overall system reliability.

Distributed Power Output Specifications

Rated output bus voltage: 125 VDC floating DC bus (ungrounded design)

Max continuous output current for each branch: 3 A

Overcurrent protection for each circuit branch: 3.15 A rated fuse

Maximum aggregated total output current across all branches: 11 A

Output voltage tolerance under rated load: ±3 VDC

Voltage drop between input terminal and load terminal: Less than 0.8 V

Onboard Auxiliary Power Circuit

Auxiliary logic power converted from the main 125 VDC input

Internal auxiliary operating voltage: 24 VDC

Typical power consumption of auxiliary circuit: 0.25 A

Maximum allowable load current of auxiliary circuit: 0.4 A

The auxiliary power supplies the ground fault detection circuit and status indicator LEDs.

Ground Fault Detection Circuit Electrical Ratings

Detection bus voltage: Floating 125 VDC

Ground fault triggering threshold: 10 kΩ insulation resistance

Operating current of detection circuit: Below 1.5 mA

Continuous withstand voltage of detection circuit: 150 VDC

Electrical Protection Characteristics

Independent fuse overcurrent protection is deployed for every distribution branch.

The board can resist reverse polarity connection within a limited period.

Overvoltage protection lockout activates once voltage exceeds 142 VDC.

Internal thermal protection will be triggered upon excessive board temperature rise.

Short-circuit occurring on any output branch will blow the corresponding branch fuse without cutting off power supply for the whole system.

System Compatibility

This board is specially developed for GE Speedtronic Mark VIe turbine control racks and compatible with TMR triple modular redundant architecture. It acts as the key 125 VDC floating power distribution unit inside control cabinets.

Power Plant Turbine Control

It is installed within control panels of gas turbine systems, steam turbine systems and combined cycle power plants, delivering DC power to main controllers, I/O modules, protection circuit boards and signal conditioning modules.

Oil & Gas Industry

It is adopted in control systems of natural gas pipeline compressor stations, supplying stable distributed power for turbine-driven compressor control as well as safety interlock circuits.

Industrial Power Generation

It applies to waste heat power generation equipment, distributed energy facilities and independent power stations equipped with Mark VIe control platforms.

Core Functional Application Scenarios

Accepts redundant 125 VDC battery power input and distributes separate branch power to downstream control devices.

Carries out ground fault monitoring on floating DC buses to improve the safety level of control systems.

Equips each power branch with independent fuse overcurrent protection, avoiding overall system shutdown caused by single circuit failures.

Retrofit & Maintenance Application

Available as original replacement spare parts for equipment overhauls, system upgrades and component replacement of existing Mark VIe control devices.

Environmental Adaptation

Suitable for standard industrial control rooms with stable temperature and humidity conditions. It can be mounted in enclosed electrical cabinets of power plants and petrochemical sites, and operate in environments with moderate electromagnetic interference.
