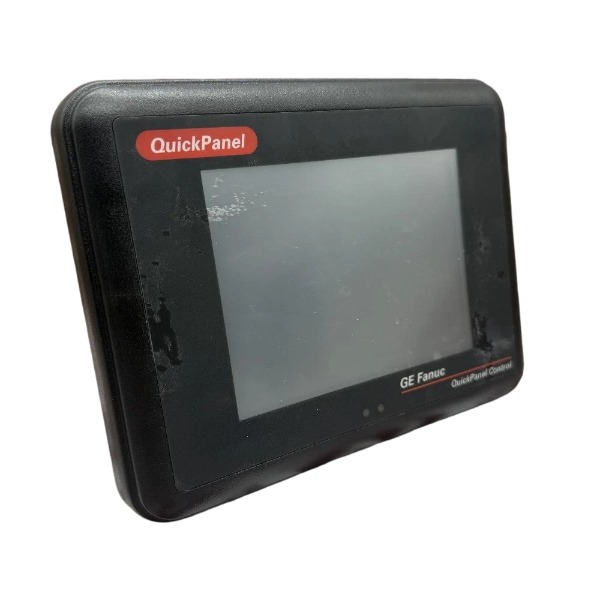

IC754CBL06CTD GE QuickPanel Control Operator Interface Terminal

• Brand
  GE
• Model
  IC754CBL06CTD
• Product Name
  QuickPanel Control Operator Interface Terminal
• Place of Origin
  United States
• Customs HS Code
  8528591000
• Power Supply
  12–30 VDC, rated 24 VDC
• Dimensions
  219 mm (height) × 154 mm (width) × 40 mm (depth)
• Weight
  0.90 kg
• Operating Temperature
  0°C to +60°C
• Storage Temperature
  -20°C to +70°C
• Warranty
  12 month
• Product Status
  new

IC754CBL06CTD GE QuickPanel HMI Working Principle

This device is an industrial touchscreen operator terminal powered by an embedded microprocessor and native runtime firmware. It runs visualization projects which are designed and downloaded using Proficy Machine Edition software.

It communicates with PLCs, controllers and field devices over RS232, RS485 and Ethernet ports via compatible industrial protocols. It periodically retrieves real-time tag information including process measurements, status bits and alarm data from connected controllers, and visualizes graphics, trend curves and alarm notifications on the TFT screen.

The resistive touch panel detects touch inputs from operators, translates these actions into control instructions, and writes setpoints, start-stop commands and trigger signals back to the associated control system.

Local onboard memory stores HMI project files, recipe parameters and historical event records. The embedded firmware manages communication scheduling, touch signal acquisition, screen refresh and alarm latch functions.

Status LEDs and an integrated buzzer deliver local visual and audible alerts for communication failures and active alarms. It serves as a bidirectional data gateway between on-site operators and the lower-level control system, and cannot execute standalone logic for safety-critical control loops.

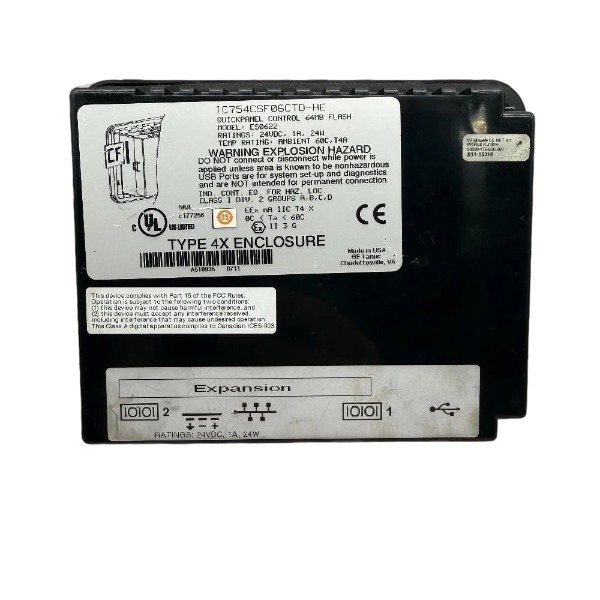

IC754CBL06CTD GE QuickPanel HMI Communication Interfaces

Serial COM Port (DB25 combo port)

This single multi-functional serial connector supports EIA RS232 and EIA RS485 standards, selectable through software settings. The baud rate ranges from 300 bps to 115200 bps, with adjustable parity, data bits and stop bits. It supports Modbus RTU, GE SNP and other proprietary serial PLC protocols to directly connect GE PLCs and third-party controllers. This port can also be applied for project download and on-site debugging with Proficy Machine Edition.

Ethernet Interface

1 × 10/100 Mbps auto-negotiation RJ45 port, conforming to IEEE 802.3 10BASE-T and 100BASE-TX standards. It implements the TCP/IP stack and supports Modbus TCP, GE Ethernet protocols, FTP file transfer and an onboard HTTP web server. It is applied to remote project upload and download, network tag read-write, alarm transmission and remote browser access to HMI screens. Auto-negotiation works for both full-duplex and half-duplex modes.

USB Interface

1 × USB 1.1 host port. It supports USB flash drives for offline project loading, recipe backup, event log export and firmware updates. It is not used as a real-time control communication link for PLCs.

Expansion Bus Interface

An internal expansion connector for optional fieldbus expansion modules, which can add extra communication interfaces such as PROFIBUS when necessary.

Supported Communication Protocols

Serial: Modbus RTU, GE SNP, Serial SNP, DF1 and other mainstream serial PLC drivers

Ethernet: Modbus TCP, GE SRTP, FTP, HTTP, TCP/IP

Software configuration: All communication drivers are configured in Proficy Machine Edition; multiple controller connections can operate simultaneously.

Diagnostic Features

Each communication channel is equipped with link status indicators. The HMI runtime records communication error counters, timeout logs and offline device alarms. These records can be checked on the local screen or exported for troubleshooting.
