Description
-
BrandGE
-

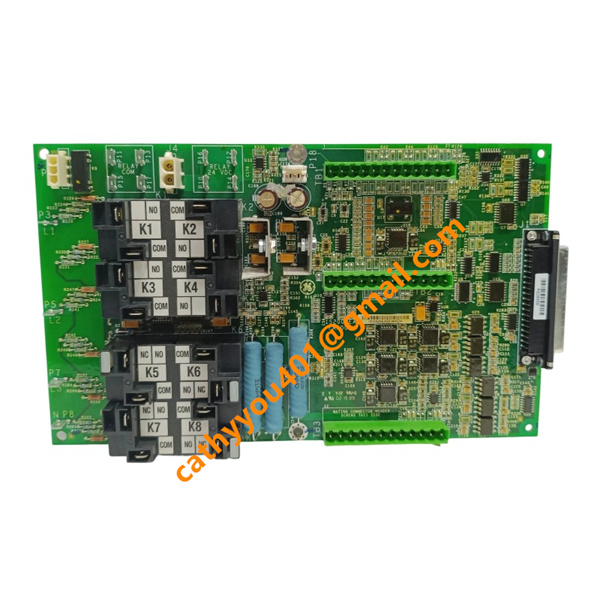

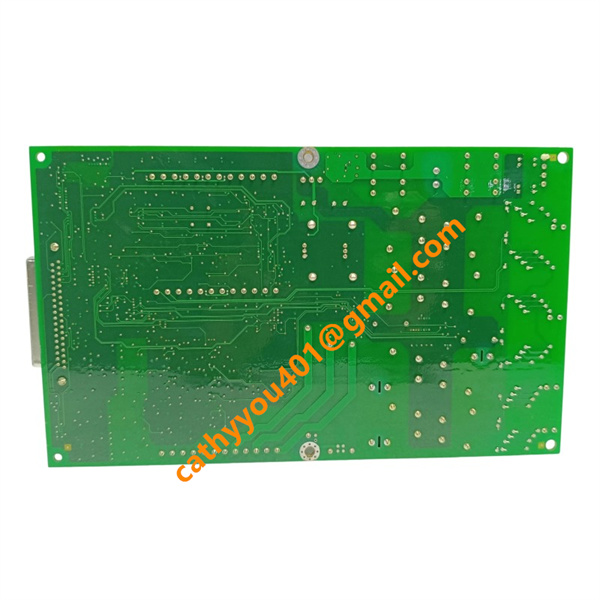

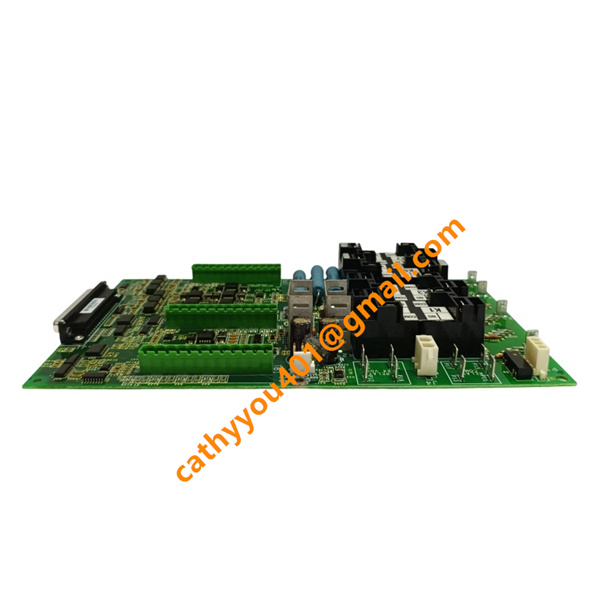

ModelIS200AEADH4ADA
-
Product NameInput Terminal Board
-
Country of OriginUnited States
-
HS Code8538909100
-
Dimensions17.8 cm wide x 33.02 cm high
-
Weight0.65 kg (1.43 lbs)
-
Operating Temperature+30°C to +65°C (+86°F to +149°F)
-
Storage Temperature
-
Power Supply24VDC
-
Warranty12month
-
Product StatusNew and original
GE IS200AEADH4ADA Noise Suppression & Wiring Configurations
The physical wiring interface is optimized to minimize electromagnetic interference (EMI) across its signal spectrum:
Hardware Input Filtering: The board splits its inputs into two separate noise suppression blocks. The first ten input circuits utilize a hardware filter featuring a single-pole down break at 500 rad/sec to damp out high-frequency disturbances. The second set of ten circuits incorporates an enhanced two-pole down break filter at 72 and 500 rad/sec, protecting highly sensitive monitoring lines from multi-spectrum noise.
Wiring Block Layout: Equipped with high-density, front-facing screw terminal blocks that allow direct termination of field sensor copper wires. This configuration supports rapid diagnostic validation and safe physical disconnects during standard field servicing.
System Network Integration: Connects seamlessly through internal ribbon or backplane cabling to remote I/O modules, which communicate back to main control cabinets using the private, high-speed IONet network.
GE IS200AEADH4ADA Product Advantages
Direct Sensor Integration: Bypasses intermediate transmitters or transducers, cutting out extra hardware layer costs and removing secondary points of data distortion or signal loss.
Advanced Noise Immunity: Dual-tier hardware filtering guarantees clean, reliable signal readings, even when cables run alongside heavy motors or high-voltage power lines inside power plants.
Engineered for Extreme Availability: Fully optimized to operate in either simplex or Triple Modular Redundant (TMR) control architectures, ensuring that a single wire fault won't cause an immediate, costly turbine trip.
Rugged Industrial Lifecycle: Built out of premium, industrial-grade components that survive continuous 24/7 exposure to elevated ambient cabinet heat and vibration.
