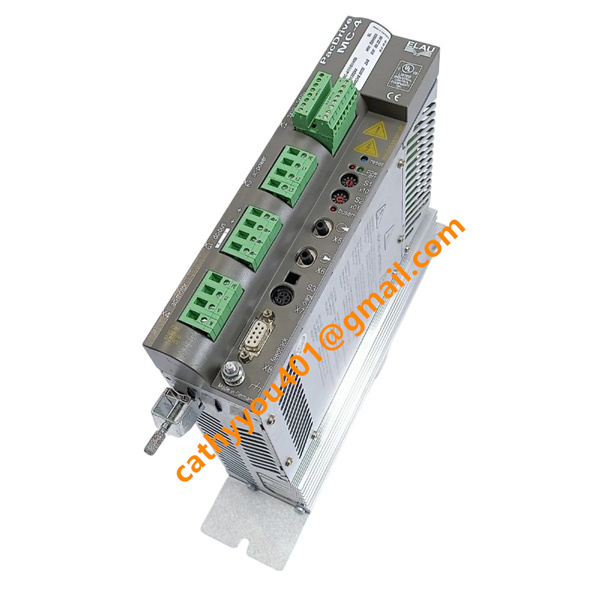

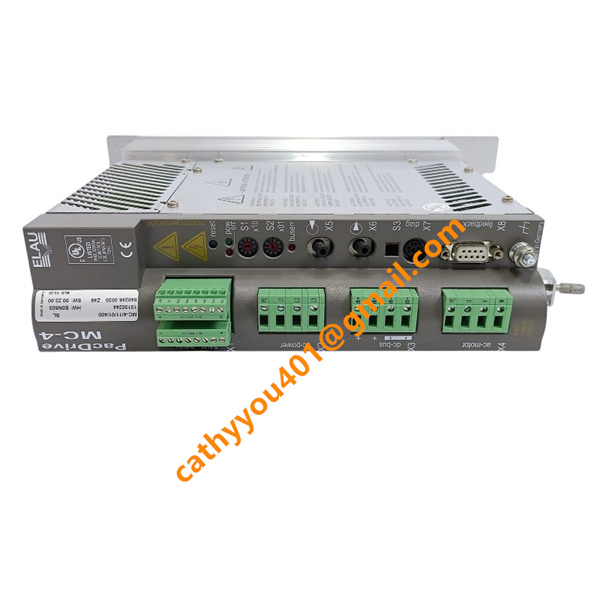

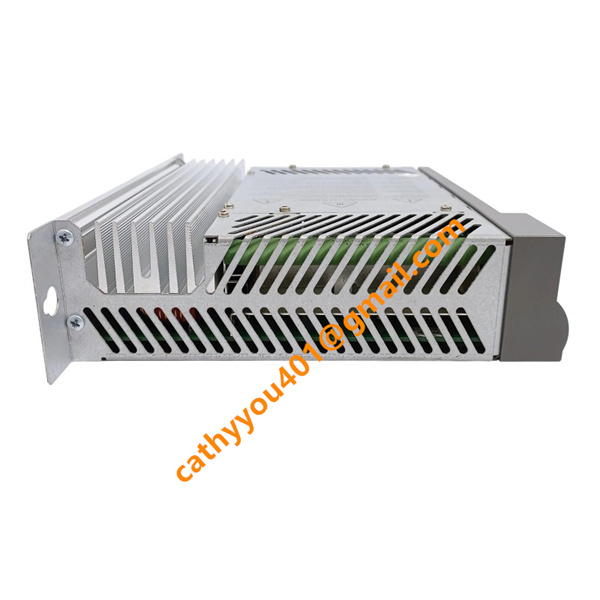

ELAU MC-4/11/01/400 Servo Drive

• Brand
  ELAU
• Model
  MC-4/11/01/400
• Product Name
  PacDrive MC-4 Servo Drive / Servo Amplifier
• Country of Origin
  Germany
• HS Code
  8537109190
• Dimensions
  320 mm x 100 mm x 400 mm
• Weight
  3.1 kg
• Operating Temperature
  +5 °C to +45 °C
• Storage Temperature
  -25 °C to +70 °C
• Power Supply
  24VCD
• Warranty
  12 month
• Product Status
  New and original

ELAU MC-4/11/01/400 Technical Specifications and General Information

Electrical Input Specifications

Rated Mains Supply Voltage: 3-Phase AC 380 V (-10%) to 480 V (+10%)

Mains Frequency Range: 48 Hz to 62 Hz

Control Circuit Supply Voltage: DC 24 V (Acceptable range of -15% to +25%)

Control Circuit Input Current: 1.0 Ampere

Internal DC Bus Voltage: DC 530 V to 680 V

DC Bus Capacitance: 165 µF

Integrated Bleeder Resistor Value: 120 Ohms

Bleeder Continuous Power: 50 Watts

Bleeder Peak Power Capability: 5 Kilowatts (for 1 second)

Digital Input Signal Rating: DC 20 V to 30 V at 5 mA per input

Inverter Enable (ie-input) Safety Rating: DC 20 V to 30 V at 30 mA (Includes an integrated input hardware filter of <= 5 milliseconds)

Electrical Output Specifications

Rated Output Voltage to Motor: Variable 3-Phase 0 V to 480 V AC

Output Frequency Range: 0 Hz to 6000 Hz / 12000 Hz (Depending on firmware configuration)

Rated Output Power: 1.1 kVA

Rated Output Continuous Current (at 8 kHz switching frequency): 1.5 Amperes (rms)

Peak Output Current (for 1 second duration): 3.75 Amperes (rms)

Relay Diagnostic Outputs: DC 20 V to 30 V rated up to 2.0 Amperes

ELAU  MC-4/11/01/400 Comprehensive Wiring Method and Steps

Executing connection steps requires qualified electrical personnel. Power down the entire cabinet and verify that the internal DC Bus voltage has completely discharged (wait at least 5 minutes after disconnecting mains supply) before handling terminals.

Mounting and Grounding: Bolt the unit securely onto a grounded metallic backplane within the electrical cabinet to maintain structural stability and optimize EMC shielding. Ensure the top and bottom ventilation paths remain clear.

Control Power Hookup (24 VDC): Connect the auxiliary DC 24 V power supply to the designated control voltage inputs. This powers the internal CPU, encoders, and communication circuits independently from the main 3-phase line.

Fiber-Optic Ring Connection: Insert the SERCOS fiber-optic transmit (Tx) and receive (Rx) cables into the corresponding ports. Ensure the minimum bend radius of the fiber optic cables is maintained to prevent signal attenuation.

Motor Power and Feedback Connections: Route the 4-core motor power cable (U, V, W, plus PE ground) from the motor to the drive’s output terminal blocks. Connect the motor encoder feedback cable to the drive's dedicated feedback interface connector. Ensure all shield clamps make direct, broad surface contact with the drive ground plane.

Safety and Signal I/O Wiring: Wire the "Inverter Enable" (ie-input) safety circuit through your system's emergency stop or safety relay contacts. Wire the standard digital inputs and diagnostic relay outputs according to your machine schematic.

Main Power Supply Connection: Wire the primary 3-phase AC line (380V - 480V) through a proper circuit breaker or fuse block to the L1, L2, and L3 mains terminals on the drive. If utilizing a residual current device (RCD), a Type B breaker with a 500 mA trigger threshold must be used due to the drive's operational leakage currents.

Final Physical Check: Double-check all terminal tightening torques, verify there are no stray wire strands creating short circuits, and confirm that the ground connections are perfectly continuous. Turn on the 24V control power first to verify initial firmware and communication status before applying 3-phase high voltage.

ELAU MC-4/11/01/400 Key Product Advantages

Space-Saving Single-Axis Integration: Combines power electronics, line filter, and controller intelligence within a narrow book-size frame to drastically reduce control panel space.

Decentralized Architecture via SERCOS: Fiber-optic interfacing completely eliminates electromagnetic noise and simplifies field installation.

Intelligent Motor Plug-and-Play: Automatic recognition of ELAU SH-Series synchronous motors optimizes control loop tuning parameters immediately without manual configuration.

High Dynamic Overload Performance: Delivers up to 250% transient torque capabilities to manage aggressive start-stop indexing profiles in packaging mechanisms.

Excellent Electrical Safeguards: Includes integrated class 1 overvoltage protection, overvoltage category K III certification, and Class A EN 55011 radio interference suppression.

•
