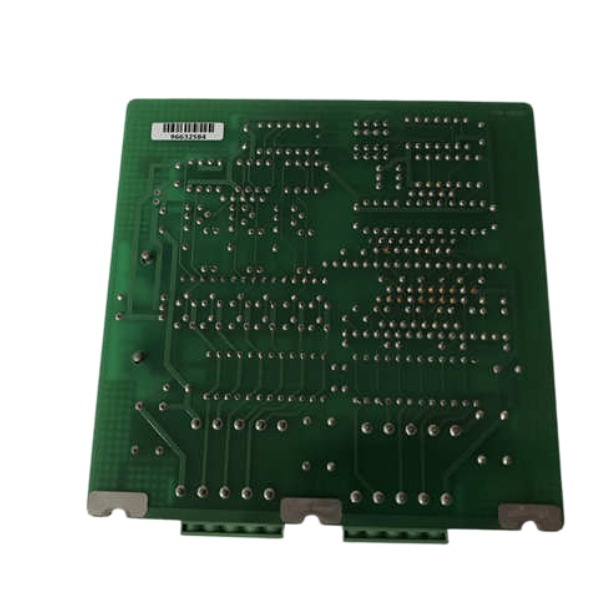

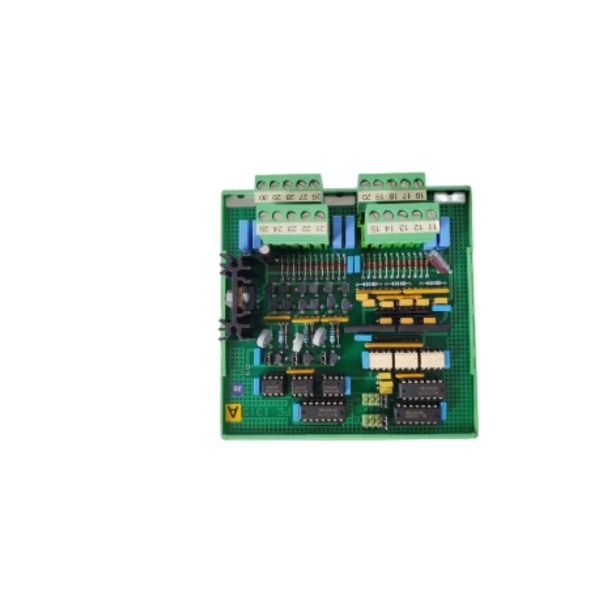

PE1315A 5FSE707630-7 ABB Opto-Isolated Pulse Amplifier Module new

• Brand
  ABB
• Model
  PE1315A 5FSE707630-7
• Product Name
  Opto-Isolated Pulse Amplifier Module
• Place of Origin
  Sweden
• Customs HS Code
  85389000
• Power Supply
  5V DC to 24V DC
• Dimensions
  125mm × 80mm × 30mm
• Weight
  0.24kg
• Operating Temperature
  -20°C to +70°C
• Storage Temperature
  -40°C to +80°C
• Warranty
  1 year
• Product Status
  new

ABB PE1315A（5FSE707630-7）Common Faults and Solutions

Product Type: 3-channel optically isolated pulse amplifier (Channel A, B, Strobe)

1. No pulse output and power indicator off

Cause: Missing power supply, reversed power polarity or loose terminal connections

Solution: Confirm stable 5–24 VDC power input, check power polarity correctness, tighten all DIN rail terminals and measure supply voltage with a multimeter.

2. Power indicator on, but no pulse output for all channels

Cause: Absent input pulse signal, mismatched input voltage level or open-circuited input cable

Solution: Inspect the output status of encoder or pulse source, verify input signal conforms to 5–24 VDC specification, test pulse signal with an oscilloscope, and replace faulty input cables.

3. Single channel (A/B/Strobe) no output, other channels work normally

Cause: Broken single-channel wiring, damaged optocoupler or loose channel terminals

Solution: Perform cross-test by swapping A/B channel wiring, inspect terminal connection status. If the fault follows the channel, replace the PE1315A module.

4. Intermittent pulse signal loss

Cause: Inadequate cable shielding, ground loop interference, loose terminals or insufficient signal amplitude

Solution: Adopt shielded twisted-pair cables with single-point shielding grounding, fasten all terminals tightly, check the driving capability of pulse source, and separate signal cables from high-power cables.

5. Distorted pulse waveform and abnormal signal edge

Cause: Overloaded output load, signal reflection or mismatched working mode setting

Solution: Ensure single-channel output load current ≤13 mA, confirm complementary/non-complementary mode matches the encoder type, and shorten signal cables appropriately.

6. Output stuck high/low and fails to follow input pulse changes

Cause: Internal output circuit failure, optocoupler damage caused by overcurrent or output side short circuit

Solution: Disconnect field load for retest. If the output status remains locked, replace the module and eliminate short-circuit faults of output cables and rear terminals.

7. Abnormal pulse counting and A/B channel phase error

Cause: Reversed A/B phase wiring or inconsistent signal delay of dual channels

Solution: Correct A/B wiring sequence, unify A/B cable length, and verify encoder phase sequence with an oscilloscope.

8. Module overheating

Cause: Exceeded operating ambient temperature, long-term output overload or poor cabinet ventilation

Solution: Improve ambient heat dissipation, guarantee output current within rated range, and reserve ventilation gaps between adjacent DIN rail modules.

Product Features of ABB PE1315A（5FSE707630-7）

Type: Optically Isolated Pulse Amplifier

Adopts three independent signal channels (A, B, Strobe), specially developed for quadrature pulse signals from incremental encoders.

Features complete optical galvanic isolation between input and output circuits, effectively eliminating ground loop interference and providing reliable protection for downstream control devices.

Compatible with both complementary and non-complementary pulse signal types, supporting diverse encoder signal modes.

Wide 5–24 V DC input and output voltage range, with each channel offering a rated output current of 13 mA.

Supports high-speed pulse processing with a maximum operating frequency of 50 kHz and microsecond-level fast response capability.

Integrates pulse signal isolation, waveform shaping and signal amplification functions, allowing a single pulse source to drive multiple downstream receiving devices.

Compact modular design with standard DIN rail mounting, easy for integrated installation inside control cabinets.

Built-in power indicator lamp for intuitive and rapid equipment status diagnosis.

IP20 protection grade, suitable for indoor control cabinet industrial scenarios.

Boasts wide operating temperature adaptability and excellent EMC anti-interference performance, stable for harsh industrial working conditions.

Adopts terminal block wiring design, simplifying on-site signal connection, daily inspection and equipment maintenance.
