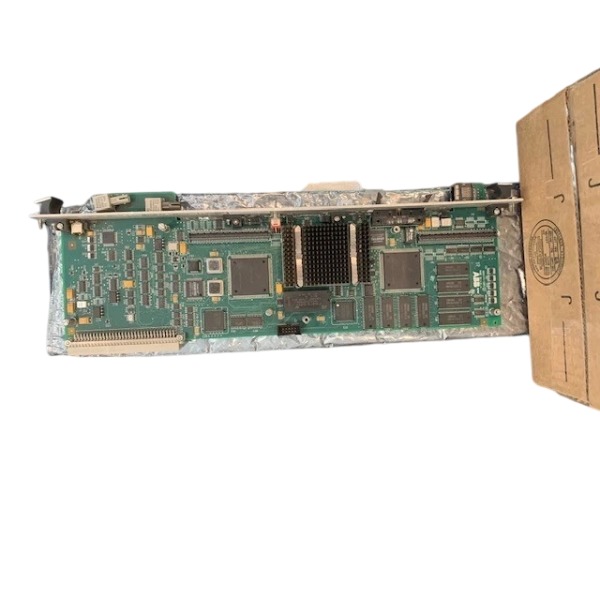

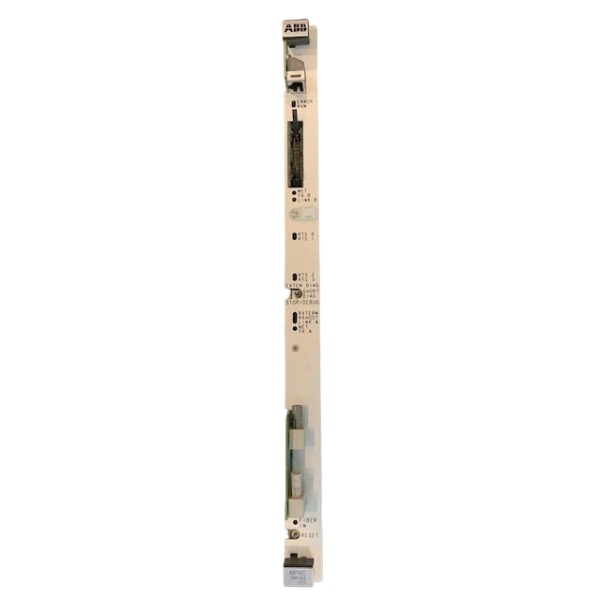

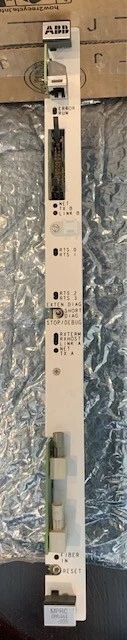

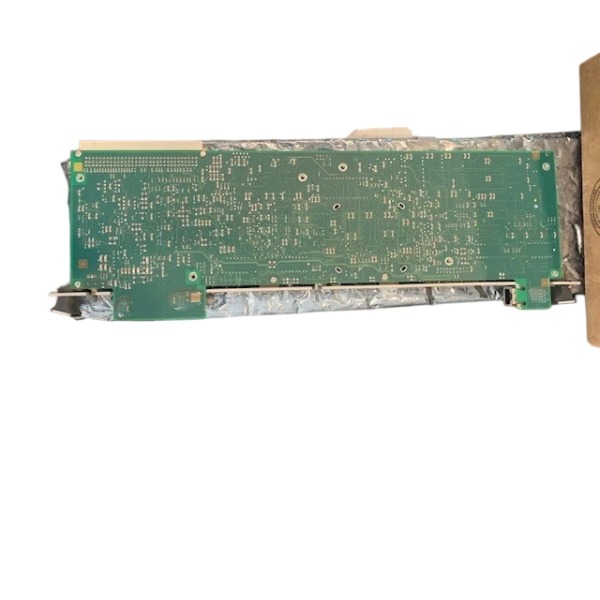

MPRC 086444-005 ABB Measurement Process Board

• Brand
  ABB
• Model
  MPRC 086444-005
• Product Name
  Measurement Process Board
• Place of Origin
  United States
• Customs HS Code
  8538900000
• Power Supply
  0.3 A
• Dimensions
  48 mm × 420 mm × 160 mm
• Weight
  0.4 kg
• Operating Temperature
  -40 °C to +85 °C
• Storage Temperature
  -45 °C to +90 °C
• Warranty
  12 month
• Product Status
  brand new

ABB MPRC 086444-005

Input & Output

Power supply: 24 VDC nominal supply voltage

Analog input: accepts 4–20 mA current signal and 0–10 V voltage signal

Digital input: 24 VDC compatible, supports dry contact, NPN and PNP sensor types

Analog output: configurable for 0–10 V voltage output or 4–20 mA current output

Digital output: 24 VDC transistor-type output

Maximum single-channel analog current: 20 mA

Maximum single-channel analog voltage: 10 V

Digital output rated load current: 0.5 A per channel

Compatible Systems

ABB ACS800 variable frequency drive series

ABB 800xA distributed control system

ABB Advant OCS control system

ABB Symphony Plus control system

Protocols

RS485 physical interface

Modbus RTU communication protocol

Profibus-DP available as optional communication interface

Software

ABB DriveWindow for drive monitoring and parameter setup

ABB Control Builder M for control logic configuration

800xA Engineering Workplace for DCS project engineering and commissioning

1. Pre-Installation Safety & Preparation

Disconnect all associated power supplies prior to installation and wiring work. Observe ESD control measures and wear an anti-static wristband to protect internal circuitry from electrostatic discharge damage. Inspect the module for visual defects including cracks, deformation and damaged connectors. Confirm the part number MPRC 086444-005 and verify compatibility with the target ABB control system. Check the enclosure environment; the location must be clean, dry, and free of conductive dust, corrosive vapors and excessive vibration. The ambient temperature must stay within the module’s rated operating range. Prepare insulated screwdrivers, shielded cables, cable ties and a multimeter for wiring and verification.

2. Mechanical Mounting

This module is designed for standard DIN rail mounting. Snap the module vertically onto the DIN rail and securely engage the bottom locking clip. Maintain adequate clearance around the unit to facilitate natural convection and avoid obstructing ventilation slots. Position it at a safe distance from high-power devices such as contactors and drives to minimize EMC interference. Avoid installation close to heat sources. The mounting base must be rigid and isolated from persistent mechanical shock.

3. Wiring Instructions

Power wiring: Connect the 24 VDC supply strictly in accordance with polarity markings. Positive and negative terminals must not be reversed. Select conductors of suitable cross-section and fasten terminals to the required torque value.

Analog signal wiring: Use shielded twisted-pair cables for 4–20 mA and 0–10 V analog signals. Cable shields shall be single-point grounded at the cabinet PE bar. Separate analog wiring from power cables to prevent inductive coupling interference.

Digital signal wiring: Twisted conductors are recommended for 24 VDC dry contact, NPN and PNP digital inputs. Digital outputs are 24 VDC transistor outputs; the load for each channel must not exceed 0.5 A.

Communication wiring: Shielded twisted-pair cable is required for RS485 / Modbus RTU. For the optional Profibus-DP interface, follow standard Profibus wiring practices and fit matching bus terminating resistors at both ends of the bus segment. Route signal cables and power cables in separate trunking.

4. Grounding Requirements

Run a short, heavy-gauge ground conductor from the module protective earth terminal to the cabinet PE busbar. Ensure equipotential bonding between the cabinet, DIN rail and system grounding network. Improper grounding may lead to signal drift, intermittent communication loss and sporadic faults.

5. Post-Wiring Inspection

Recheck all terminals for loose connections, short circuits and miswiring. Confirm correct polarity of the 24 VDC power supply. Verify shield continuity and grounding integrity. Use a multimeter to test insulation between signal circuits and power circuits before energizing. Clear any loose debris from the cabinet and terminal area.

6. Power-On & Commissioning

Apply the 24 VDC supply gradually. Check the module power indicator and confirm there is no abnormal heating or smoke. Launch the corresponding configuration software (DriveWindow, Control Builder M or 800xA Engineering Workplace) to establish communication. Retrieve module diagnostic information, validate AI / DI readings and test AO / DO output responses. Configure communication parameters including station address, baud rate and protocol as per project specifications. Download the configuration and save parameter sets. Carry out a complete functional test with connected field sensors and actuators.

7. Installation Notes

Hot-plugging while energized is prohibited unless the official product manual explicitly supports hot swap. Keep the module away from high-frequency interference sources such as variable frequency drive output cables. Clearly label all cables and terminals for ease of maintenance. If the module has been stored for an extended period before installation, complete a full functional test prior to commissioning.

8. Removal & Replacement Procedure

De-energize the 24 VDC power supply and implement lockout/tagout procedures. Disconnect all power, signal and communication wiring. Release the DIN rail latch and remove the module. Mount the replacement unit and repeat wiring, inspection and commissioning steps. Back up configuration files before replacement to avoid parameter loss.

FAQ for ABB MPRC 086444-005 Direct Fiber Optic Module

Q: What is ABB MPRC 086444-005?

A: The ABB MPRC 086444-005 is a direct fiber optic communication board for ABB multi-processor control systems. It delivers high-speed, noise-immune optical data transmission between control processors.

Q: What fiber connector type does MPRC 086444-005 adopt?

A: It uses LC fiber connectors, supporting multi-mode fiber for short-distance high-speed communication inside the control cabinet.

Q: What are the advantages of fiber communication on this MPRC module?

A: Optical transmission completely isolates electromagnetic interference, which is ideal for environments with heavy noise from high-power drives and power equipment.

Q: Which ABB control systems is MPRC 086444-005 compatible with?

A: It is designed for ABB legacy multi-processor control platforms. You need to match the firmware version and backplane to ensure normal communication linkage.

Q: What is the typical application of ABB MPRC 086444-005?

A: Widely deployed in power plants, oil & gas, pulp and paper, heavy industry for DCS and drive system inter-processor communication.

Q: Is ABB MPRC 086444-005 still in production?

A: This is an obsolete ABB spare part. We supply original surplus and fully tested refurbished boards for old system maintenance and replacement.

Q: Does the MPRC 086444-005 support hot swap?

A: It depends on the rack configuration. In most legacy ABB MPRC racks, power down is required before removing or installing this fiber module.
