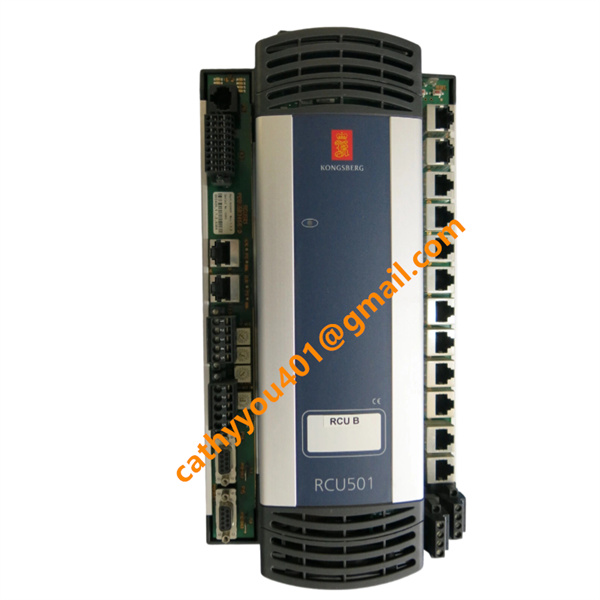

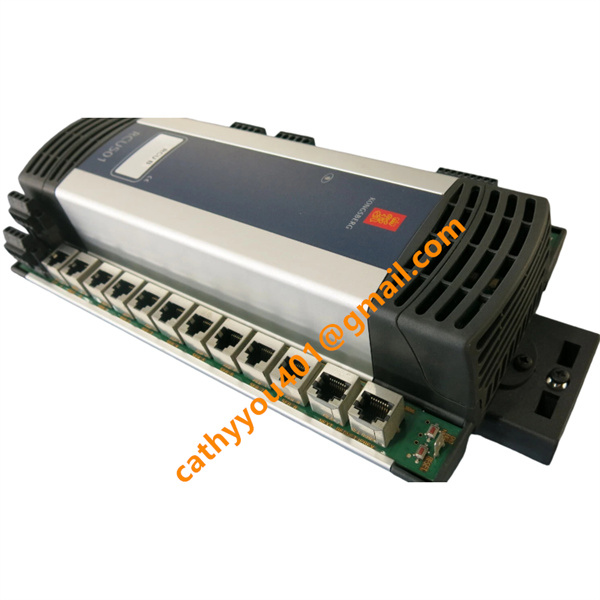

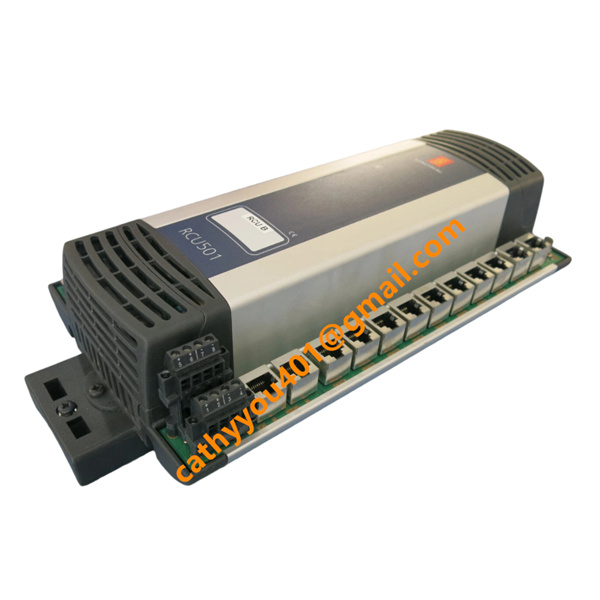

KONGSBERG RCU501 603439 Remote Control Unit

• Brand
  KONGSBERG
• Model
  RCU501
• Product Name
  Remote Control Unit / Remote Controller Unit
• Country of Origin
  Norway
• HS Code
  85371011
• Dimensions
  355mm*158mm*87mm
• Weight
  1.35kg
• Operating Temperature
  -25°C to +70°C
• Storage Temperature
  -40°C to +85°C
• Part Number
  603439
• Warranty
  12 month
• Product Status
  New and original

KONGSBERG RCU501 (603439) Product Introduction and Technical Parameters

Electrical Parameters

The RCU501 features stable industrial-grade voltage and current operating specifications, adapting to standard marine industrial power supply systems. It supports conventional marine DC power supply input, with stable working voltage and low power consumption. The built-in power regulation module ensures continuous and stable current output, avoiding signal fluctuation and equipment shutdown caused by power supply voltage instability. The optimized circuit design realizes over-current, over-voltage and short-circuit self-protection functions, effectively protecting internal chips and circuit structures and improving the safety of equipment operation.

Core Product Characteristics

Firstly, it has high integration and lightweight design. The equipment integrates control, monitoring, protection, data transmission and signal processing functions into one compact unit, eliminating the need for multiple auxiliary modules, greatly reducing cabinet space occupation and on-site wiring workload, and improving the convenience of installation and later maintenance.

Secondly, it supports redundant communication and stable real-time operation. The dual redundant CAN bus design avoids single-point communication failure, ensures uninterrupted data transmission of the automation system, and the embedded Power PC core guarantees high-speed real-time data calculation and response, meeting the high-precision control requirements of marine dynamic positioning and thruster systems.

Thirdly, it has strong environmental resistance and industrial reliability. With IP66 high protection grade and wide temperature working range, it adapts to harsh marine working conditions such as humidity, salt fog, dust and temperature difference. It has passed Ex Zone 2 explosion-proof certification, suitable for hazardous industrial areas on offshore platforms and ships.

Fourthly, it has powerful expandability and compatibility. The rich expandable I/O channels and diverse bus interfaces support docking with mainstream marine automation equipment and third-party systems, realizing flexible function expansion according to different ship types and industrial system requirements, with strong universal applicability.

Product Advantages

As a core control module of KONGSBERG’s mature marine automation system, RCU501 603439 has extremely high operational stability and field practicability. Its integrated design effectively reduces system failure points and later maintenance costs, while the redundant communication mechanism ensures the safety and continuity of marine equipment operation, which is crucial for ship navigation safety and offshore platform stable operation. Compared with traditional discrete control modules, it has higher integration density, faster response speed and stronger environmental adaptability. It can realize decentralized on-site precise control and unified upper system scheduling, greatly improving the automation level and operation efficiency of marine and offshore industrial systems. In addition, the standardized industrial design and complete certification system enable it to meet international marine industry specifications, with wide application scope and long service life, becoming a preferred core control component for high-end marine automation systems.

Interface and Channel Configuration

Equipped with rich and expandable signal acquisition and communication interfaces, the unit integrates 4 universal digital input channels and 4 universal digital output channels, supporting basic on-site signal collection and equipment control. It is configured with dual redundant CAN bus communication interfaces, complying with KONGSBERG’s exclusive CAN-based communication protocol, and also supports RS-485 serial interface and PROFIBUS bus channel. In addition, it provides 32 serial lines for third-party equipment docking, realizing seamless data interaction with various marine sensors, execution components and upper monitoring systems. The device carries up to 38 standard digital and analog I/O interfaces, which can be expanded to 166 channels according to system requirements, covering temperature measurement, vibration detection, frequency measurement and other signal acquisition functions, and supports relay and transistor signal output.
