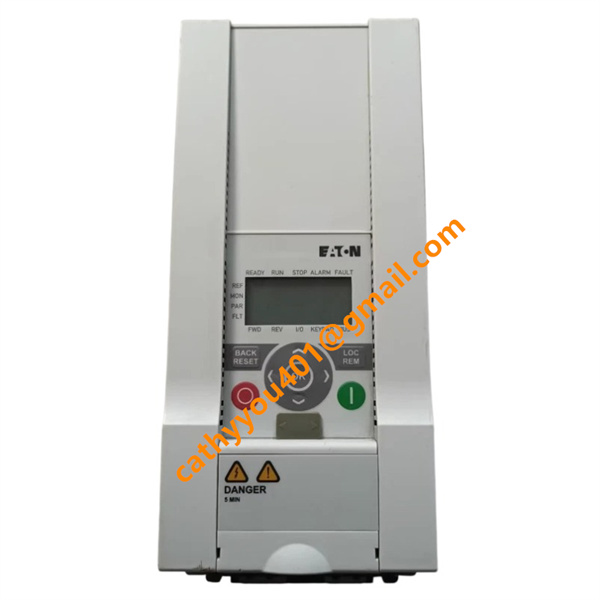

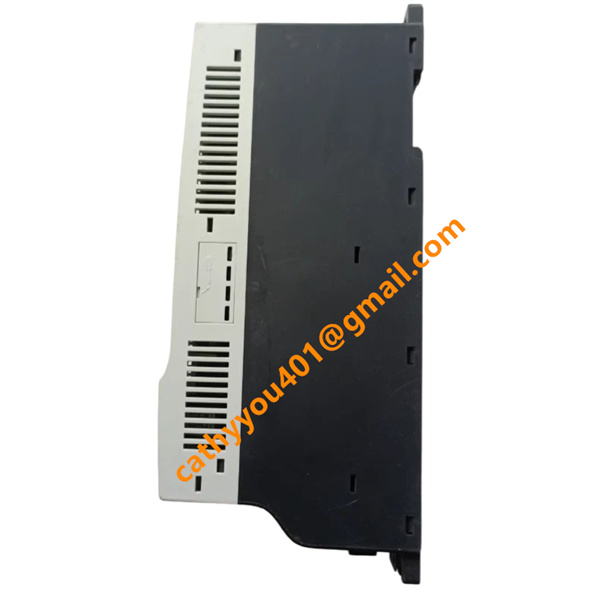

MMX34AA014F0-0 Eaton DCS AC Drive NEW BRAND

• Brand
  Eaton
• Model
  MMX34AA014F0-0
• Product Name
  M-Max Series 3-Phase Sensorless Vector Adjustable Frequency AC Drive, Full Version with Built-in EMC Filter
• Country of Origin
  China / Philippines
• HS Code
  8504403090
• Dimensions
  100 mm×253 mm×112 mm
• Weight
  0.99 kg / 2.18 lbs
• Operating Temperature
  0°C ~ +50°C (32°F ~ 122°F)
• Storage Temperature
  -40°C ~ +70°C (-40°F ~ 158°F)
• Power Supply
  24VDC
• Warranty
  12month
• Product Status
  New and original

Eaton MMX34AA014F0-0 Technical Specification

Electrical Specifications

1.Input Power Supply: 3 Phase AC 380V ~ 480V (Nominal 460V), 50/60Hz

2.Input Rated Current: 18.7 A

3.Output Power Parameter: Matched motor power 7.5kW / 10HP; Max Continuous Output 4.Current: 14 A

5.Output Frequency Range: 0 ~ 320 Hz

65.Control Circuit Auxiliary Power: Internal isolated 24VDC control power supply

7.Overload Capacity: 150% rated output current for 60 seconds; 200% overload instantaneous protection

8.Built-in EMC Filter: Integrated RFI filter meets industrial EMC standard, avoids external filter purchase

MMX34AA014F0-0  Eaton  Detailed Wiring & Connection Instructions

1. Main Power Input Wiring
Three-phase industrial AC 380~480V power cable connects terminals R, S, T on upper power terminal block in sequence

Use shielded power cables for field wiring; cable shielding layer single-end grounded inside control cabinet to eliminate ground loop interference

Match external circuit breaker and fuse according to 18.7A input rated current for primary circuit safety protection

2. Motor Output Wiring (U/V/W Terminals)

Output terminals U, V, W connect three terminals of asynchronous motor respectively; phase sequence interchange can adjust motor forward/reverse rotation direction

Motor cable recommends shielded cable with grounding wire; motor shell PE protective ground must be connected reliably to cabinet earth bar

Do not connect capacitors or lightning arrestors between output U/V/W and ground to avoid inverter internal module damage

3. Control Signal Terminal Wiring (Lower Terminal Block)

1. Digital Input Terminals: DI1~DI5 multi-function programmable terminals, for external forward/reverse run, fault reset, multi-speed selection, emergency stop signal access; all digital signals adopt passive dry contact wiring mode

2. Analog Input Wiring: AI1 (0~10V voltage signal), AI2 (4~20mA current signal), used for external speed potentiometer, pressure/temperature transmitter closed-loop PID signal input

3. Relay Fault Output Terminal: Normally open/closed relay contact terminals, used for external alarm indicator light, fault interlock circuit connection, contact capacity AC250V/3A maximum

4. Communication Wiring

Modbus RTU RS485 communication terminals adopt twisted pair shielded cable wiring; bus trunk line installs terminal matching resistance at both ends; strictly follow A/B line definition to avoid reversed communication wiring failure

5. DC Brake & External Brake Resistor Wirin

If dynamic braking function is required, connect external braking resistor to DC+ and BR terminals; confirm resistor power and resistance value comply with inverter technical specifications to prevent overheating burnout

MMX34AA014F0-0  Eaton  Core Product Advantages

1. Sensorless Vector High-performance Control: Realizes high starting torque at low speed, stable speed precision without encoder feedback, suitable for heavy-load startup equipment such as conveyors and mixers.

2. Built-in Integrated EMC Filter: Factory pre-installed internal interference filter, saves external filter cost and cabinet installation space, meets strict industrial electromagnetic compatibility requirements.

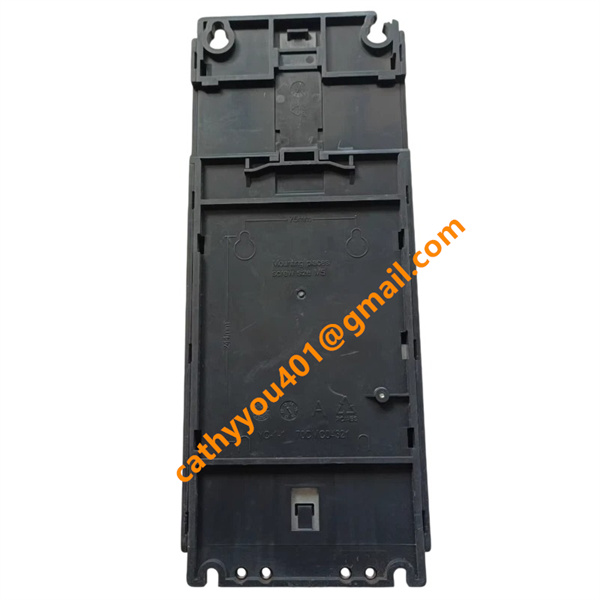

3. Ultra-compact Body & Flexible Installation: Small FS3 frame structure supports both DIN rail and wall panel mounting, highly adaptable to compact electrical cabinet layout.

4. Complete Full-version AA Firmware: Full functional software preloaded, including multi-step speed, PID closed-loop constant pressure/temperature control, motor parameter auto-tuning, without additional firmware upgrade expenses.

5. Comprehensive Multi-layer Protection System: Over-current, over-voltage, under-voltage, over-temperature, overload, phase loss, motor stall, short-circuit fault automatic detection & protection with fault code display.

•
