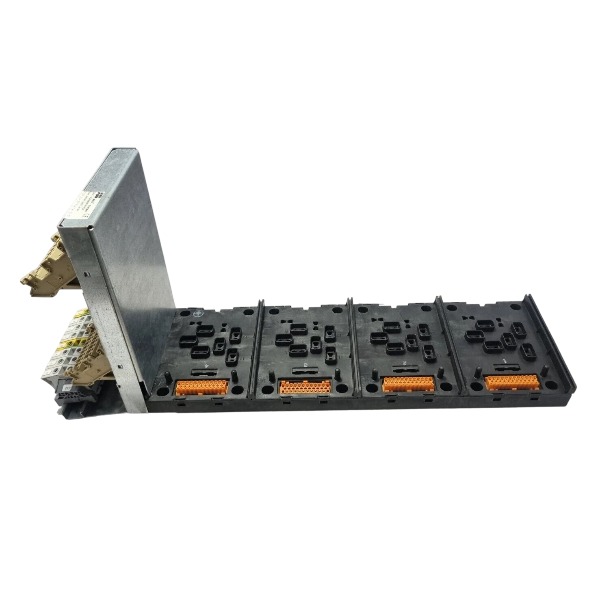

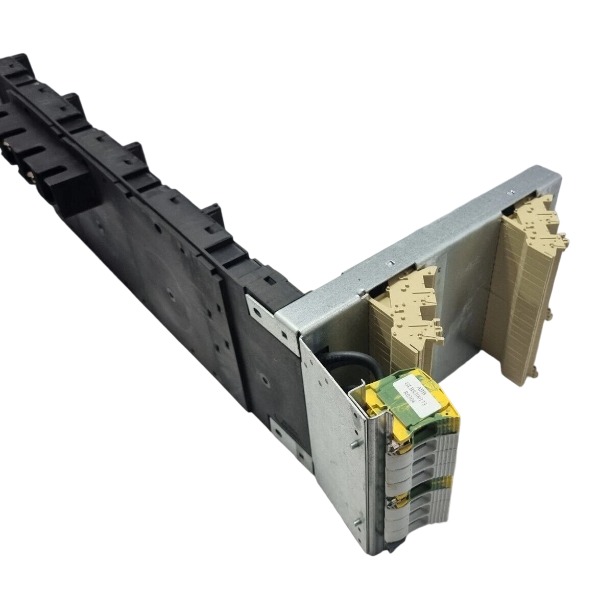

GLBS200516R5104 EKD3P-8E/2-40SK ABB Interface Module

• Brand
  ABB
• Model
  GLBS200516R5104
• Product Name
  Retirable Condapter Interface Module
• Place of Origin
  Sweden
• Customs HS Code
  85371011
• Part number
  EKD3P-8E/2-40SK
• Dimensions
  240mm × 120mm × 65mm
• Weight
  1.2 kg
• Operating Temperature
  -20°C ~ +70°C
• Storage Temperature
  -60°C ~ +90°C
• Warranty
  1year
• Product Status
  new

ABB GLBS200516R5104 (EKD3P-8E/2-40SK)

Input & Output

Digital Input: 8 digital input channels (DI) for acquiring field discrete status signals

Digital Output: 2 digital output channels (DO) for sending on/off control commands to field actuators

Voltage & Current

DI rated operating voltage: 24VDC; typical input current for each DI channel: 5mA

DO rated operating voltage: 24VDC; maximum output current per DO channel: 0.5A

Module power supply voltage: 24VDC DC power supply

Supported Software

ABB Control Builder M, ABB Engineering Workplace, ABB Freelance Engineering Tool. These engineering software packages are used for hardware configuration, parameter setting, logic programming, project download and online diagnosis of the module.

Supported System

ABB Freelance DCS distributed control system, fully compatible with AC 800M series controllers for process control applications.

Supported Protocols

Profinet IO, PROFIBUS DP, ABB Fieldbus. Multiple fieldbus options support flexible networking and data exchange between the module and the main controller.

Additional Information

This unit is a distributed digital I/O module. GLBS200516R5104 represents the material part number, while EKD3P-8E/2-40SK is the module type code. It comes with channel-level fault diagnosis function to detect open circuit, short circuit and wiring faults. All I/O channels adopt galvanic isolation to protect the control system from field electromagnetic interference. It supports hot swap operation, allowing module replacement without system shutdown for maintenance.

Application Cases of ABB GLBS200516R5104 (EKD3P-8E/2-40SK)

1. Water & Wastewater Treatment Plant

A municipal wastewater treatment plant implements the GLBS200516R5104 as a distributed digital I/O module within the ABB Freelance DCS platform. Its 8 digital input channels acquire status feedback from pump operating signals, level switches and valve limit switches. The 2 digital output channels deliver control commands to solenoid valves and auxiliary pump interlock circuits. Communication with the AC 800M controller is established via PROFIBUS DP. Built-in channel diagnosis enables early identification of cable breaks and signal malfunctions. The module reduces wiring workload for local cabinets and simplifies routine maintenance for aeration tank and sludge discharge control loops.

2. Chemical Batch Processing Workshop

A fine chemical plant installs multiple GLBS200516R5104 modules in field control cabinets to implement interlock control for batch reactors. Digital inputs monitor emergency stop signals, pressure switch states and safety door interlock status. Digital outputs activate alarm indicators and perform on/off control for small process valves. The hot-swap capability allows module replacement without full DCS system shutdown, effectively cutting production downtime. All signal configuration and program download are completed through Control Builder M, providing dependable safety interlock protection for batch reaction sequences.

3. Power Plant Auxiliary Boiler Control

A thermal power station adopts GLBS200516R5104 for local signal acquisition and logic output of auxiliary boiler systems. DI channels collect flame detector status, blower running feedback and pressure alarm switch signals. DO channels drive alarm horns and purge valve interlock functions. Integrated into the Freelance DCS, the module transmits field status data to the central control room. Galvanic isolation shields the DCS controller from electromagnetic interference generated by inductive field loads, boosting operational stability in the high-noise boiler house environment.

4. Pulp & Paper Process Line

A paper mill deploys GLBS200516R5104 in the pulp preparation section. DI channels receive signals from conveyor speed switches, jam detection sensors and tank level switches. DO channels control local warning lamps and small bypass valves. Mounted inside field junction cabinets near sensors and actuators, the module shortens field signal cables and mitigates EMC interference. It supports both Profinet IO and PROFIBUS DP, enabling seamless data exchange with the AC 800M controller for continuous pulp feed monitoring and protective interlock.

5. Food & Beverage Production Line

A beverage processing plant utilises GLBS200516R5104 for safety interlock on packaging lines. Digital inputs capture safety door status, emergency stop triggers and conveyor presence feedback. Digital outputs actuate local alarm lights and stop interlock signals. Its compact form factor fits neatly into small local control enclosures. Channel-level fault diagnosis allows maintenance technicians to rapidly pinpoint open-circuit and short-circuit faults, minimising line downtime for continuous food manufacturing.
