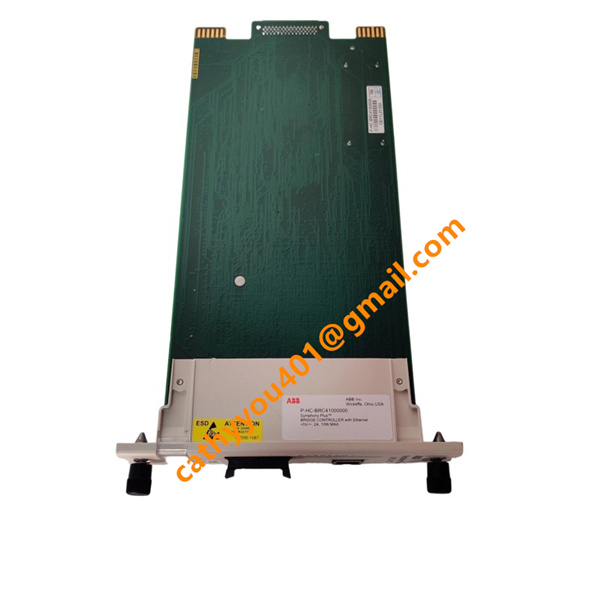

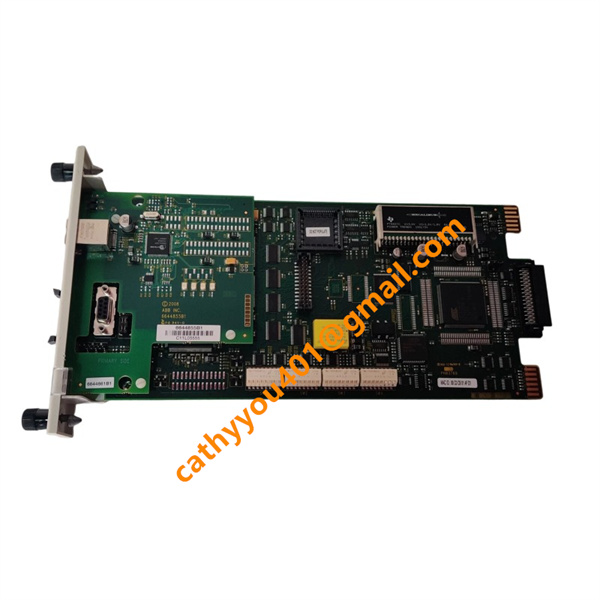

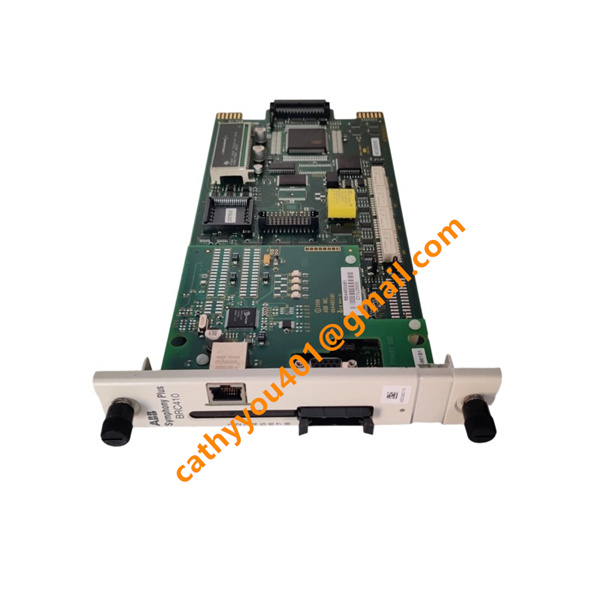

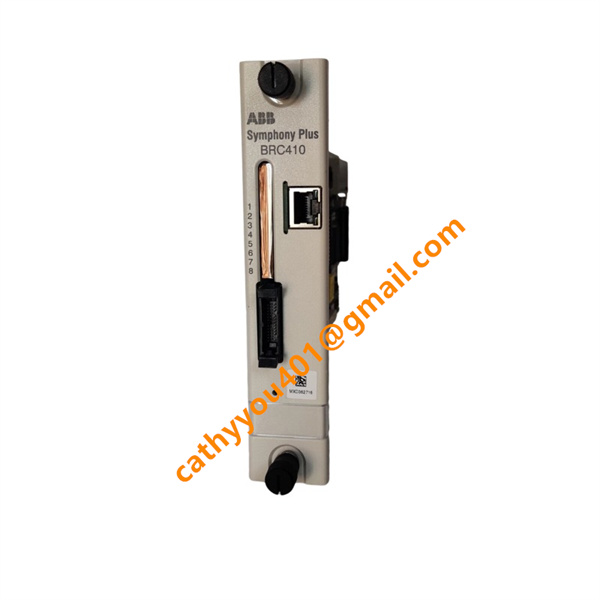

BRC410 ABB DCS Bridge Controller

• Brand
  ABB
• Model
  BRC410
• Product Name
  High-Performance Bridge Controller for Symphony Plus / INFI 90 DCS System
• Country of Origin
  Sweden
• HS Code
  8537209000
• Dimensions
  245mm(L)×32mm(W)×185mm(H)
• Weight
  0.78 kg
• Operating Temperature
  0 ℃ ~ +60 ℃
• Storage Temperature
  -40 ℃ ~ +85 ℃
• Power Supply
  24VDC
• Warranty
  12 month
• Product Status
  New and original

ABB BRC410 Complete Product Specification

Core Technical Parameters

1. Rated Working Voltage: 24 VDC (20 VDC ~ 28 VDC allowable fluctuation range)

2. Typical Operating Current: 0.45 A; Maximum Inrush Current: 0.8 A

3. Processor: 20 MHz 16-bit industrial processor

4. Onboard Memory: 2 MB NVRAM for user configuration storage

5. Control Algorithm Capacity: Supports up to 30,000 function blocks, over 150 built-in standard control algorithms

6. Communication Interface: 4 independent control loop interfaces, 1 Mbps bus communication rate

7. Installation Method: Standard 19-inch rack-mounted, DIN rail compatible backplane installation

8. Protection Class: IP20 (for cabinet internal installation only)

9. Relative Humidity: 5%-95% non-condensing

ABB BRC410 Standard Wiring & Connection Method

1. Power Wiring

Positive Terminal: Connect to stabilized 24 VDC industrial power supply positive pole;

Negative Terminal: Connect to power supply negative pole and system common ground simultaneously;

Wiring requirement: Use shielded DC cables, separate power wiring from signal wiring to avoid interference.

2. Backplane Bus Communication Wiring

Insert BRC410 into the designated controller slot of the Symphony Plus backplane;

Connect redundant communication cables between primary and standby BRC410 modules if redundancy configuration is adopted;

Ensure tight locking of module fixing screws to guarantee reliable backplane contact.

3. External Control Loop Bus Wiring

Four loop communication interfaces connect to corresponding field I/O station bus cables respectively;

All bus cables use dedicated ABB shielded differential communication lines, with both ends grounded;

Strictly follow system topological layout to avoid loop connection errors.

4. Wiring Precautions

Complete all wiring operations under power-off status of the control cabinet;

Do not mix strong current power cables and weak signal communication cables;

After wiring, perform communication address configuration via S+ Engineering Composer software before power-on test;

Regularly check grounding condition to ensure grounding resistance ≤4 Ω.

ABB BRC410 Product Advantages

1. Ten times higher processing performance than previous-generation Bailey controllers, greatly improving overall DCS operation efficiency;

2. Full backward compatibility with legacy INFI 90 and Harmony I/O modules, no need to replace existing field I/O hardware during system upgrade;

3. Supports redundant dual-controller hot backup, seamless switching without system downtime, extremely high operational reliability;

4. Adopts downloadable firmware and online configuration editing, no shutdown required for parameter adjustment and program modification;

5. Rich built-in control function libraries, supporting multiple control modes and custom C programming to meet complex industrial process requirements;

6. Hot-swappable module design, convenient for maintenance and replacement without affecting the entire control system;

7. Compact single-board structure with strong anti-electromagnetic interference capability, stable operation in harsh industrial electromagnetic environments;

8. Global ABB technical support and complete spare parts supply chain, long-term service availability for industrial projects.

•
