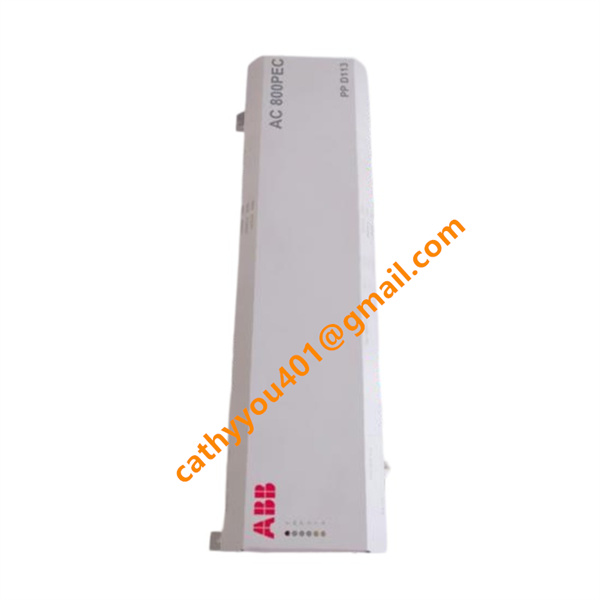

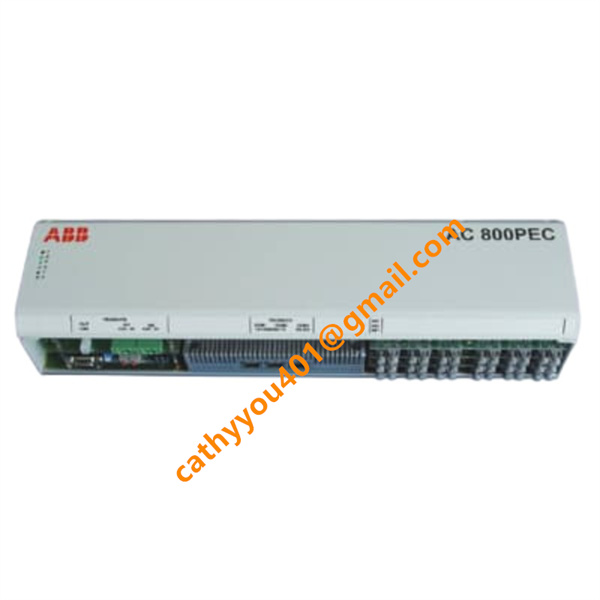

ABB PPD113 3BHE023784R2630 programmable controller

• Brand
  ABB
• Model
  PPD113
• Product Name
  programmable controller
• Country of Origin
  Switzerland
• HS Code
  85371092
• Dimensions
  450 mm (H) x 100 mm (W) x 145 mm (D)
• Weight
  2.59 kg
• Operating Temperature
  -25°C to +85°C
• Storage Temperature
  -40°C to +100°C
• Part Number
  3BHE023784R2630
• Warranty
  12 MONTH
• Product Status
  New and original

The design of the PPD113 3BHE023784R2630 is trimmed for the sharing of the duties within a control system.
The PPD113 3BHE023784R2630 processor board contains a microcontroller MPC5200 (Freescale, Power PC core 603) with a clock speed of 396 MHz, a 10/100 Mbps Ethernet MAC, two CAN controllers, 3 serial interfaces (UART) and a large programmable logic device (FPGA) – all on an area less than the size of a credit card. In contrast to the high-performance controller, the design of the PPD113 3BHE023784R2630 is consequently trimmed for the sharing of the duties within a control system. A small, but powerful controller unit forms the brain of the control system. It is optimized for performance per space and supported by application specific communication and application boards or a combination of both – depending on the application’s needs. All of these sub devices constitute the controller package, and are optimized for the application’s specific purpose.
It has been shown in the past that this design is a door opener for a number of applications that were not previously thinkable due to cost and performance restrictions. The following two application discussions outline the opportunities that PPD113 3BHE023784R2630 has created.

The devices of the AC 800PEC platform can be integrated into an 800xA system, thus allowing plant-wide data exchange and control.
High-end controller The first devices to be used in applications were PPD113 3BHE023784R2630 controllers. These are based on the PPD113 3BHE023784R2630 processor unit and form the high-end solution in which controllers and fastI/O are separate devices. The CPU is a PowerPC 750FX with a clock speed of up to 600 MHz. These devices currently form the controller backbone of the power electronics business. Low-end controller This article is primarily concerned with solutions based on the PPD113 3BHE023784R2630 processor board, in which controller and fast-I/O are integrated into a single device. This solution is targeted at small systems, in which limited space and controller cost are critical to the success of the end-product  .

Principle of AC 800PEC The AC 800PEC is a powerful control platform. On the hardware side, it combines the floating-point computing performance of the CPU with the highspeed flexibility of an FPGA.1) On the software side, it combines the system design capabilities of ABB’s ControlIT with the application control and simulation capabilities of MATLAB/Simulink™ (from The Mathworks®).2) From a user’s perspective, the system is separated into three levels, representing different tasks in the development life-cycle of a product:
System engineering (Level 1) ABB’s ControlIT is based on the IEC61131-3 programming language and uses ABB’s Control Builder as programming tool. This is the level on which system engineers implement functions not demanding real-time performance but needing to remain flexible during the lifecycle of the product/system. Another important attribute of this level is the integration of the AC 800PEC controllers in ABB’s 800xA system. AC 800PEC controllers are integrated by means of “800 Connect,” which provides native access of 800xA nodes to the application entities within the AC 800PEC controller. Product development (Level 2) Fast closed-loop control applications are programmed using MATLAB/Simulink. C code is then generated from this using MATLAB/Simulink’s RealTime Workshop. This is compiled to an executable code using a C-Compiler and then downloaded to the controller device where the control application will start immediately after the controller is started-up. If the control application is part of a large control system requiring the presence of a ControlIT IEC61131-3 application, engineering will supervise the execution of the fast control application.

•
