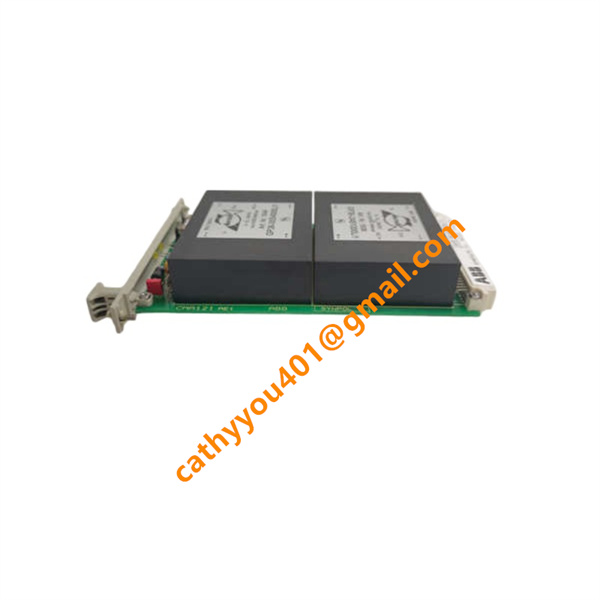

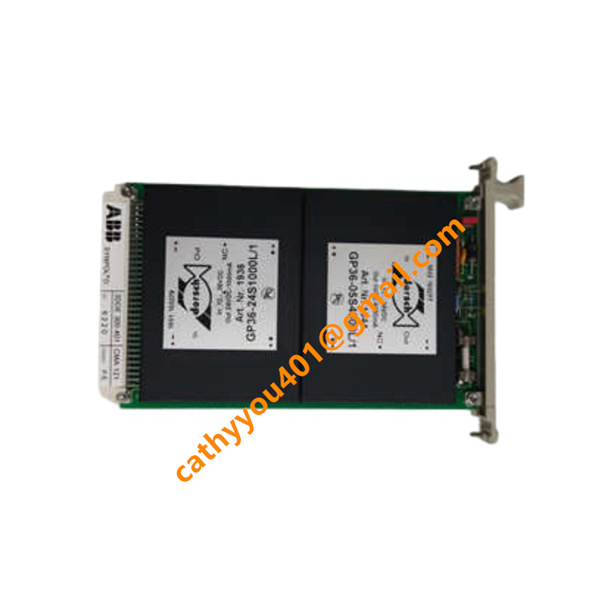

ABB CMA121 3DDE300401 Interface Board

• Brand
  ABB
• Model
  CMA121
• Product Name
  Interface Board / Functional Control Processor Module
• Country of Origin
  Sweden
• HS Code
  8538900000
• Dimensions
  234 mm×160mm×20mm
• Weight
  0.38 kg to 0.45 kg
• Operating Temperature
  0°C to +55°C (32°F to 131°F)
• Storage Temperature
  -40°C to +85°C (-40°F to 185°F)
• Part Number
  3DDE300401
• Warranty
  12 month
• Product Status
  New and original

ABB CMA121 3DDE300401  Technical Specifications

Power & Signal Parameters (Input / Output)

Input Power Supply: Rated for a standard +24 V DC backplane or external supply input (accepts a toleranced industrial range of 19.2 V DC to 30 V DC).

Signal Inputs: Configured to receive multi-channel, high-resolution analog inputs (e.g., 4-20 mA, 0-10 V) or isolated digital logic pulses directly from field transmitters.

Signal Outputs: Delivers conditioned analog/digital control loops back to the system backplane or straight to field actuators with exceptionally low propagation delay.

Galvanic Isolation: High-voltage optical or transformer-based isolation between input loops and internal logic channels to block hazardous transient surges.

ABB CMA121 3DDE300401  Product Advantages

Superior Signal Integrity: Implements specialized low-pass filtering and advanced electrical isolation across every channel, completely filtering out high-frequency EMI/RFI noise from factory floors.

Deterministic Real-Time Performance: Engineered with high-bandwidth processing paths that ensure input-to-output logic loops are updated within milliseconds, keeping critical safety interlocks synchronized.

Proven Advant System Longevity: Fully compatible with legacy and modern ABB architectures, serving as a reliable drop-in replacement part that extends the operational lifespan of existing multi-million dollar automation investments.

Ruggedized Fault Protection: Built-in overvoltage, reverse polarity, and short-circuit protection circuits on every input and output channel safeguard adjacent rack components from field wiring mistakes.

ABB CMA121 3DDE300401  Wiring & Terminal Layouts

Backplane Connectivity: Outfitted with an integrated DIN 41612 standard multi-pin male connector on the rear edge for seamless plug-and-play insertion into standard industrial card cages.

Field Connection Method: Plugs into heavy-duty screw or spring-cage terminal blocks mounted on the base chassis, accommodating wire cross-sections from 0.5 mm² to 2.5 mm² (AWG 20 to AWG 12).

Grounding Connection: Dedicated low-impedance grounding paths built directly into the circuit layer to ensure optimal electromagnetic shielding behavior.

•
